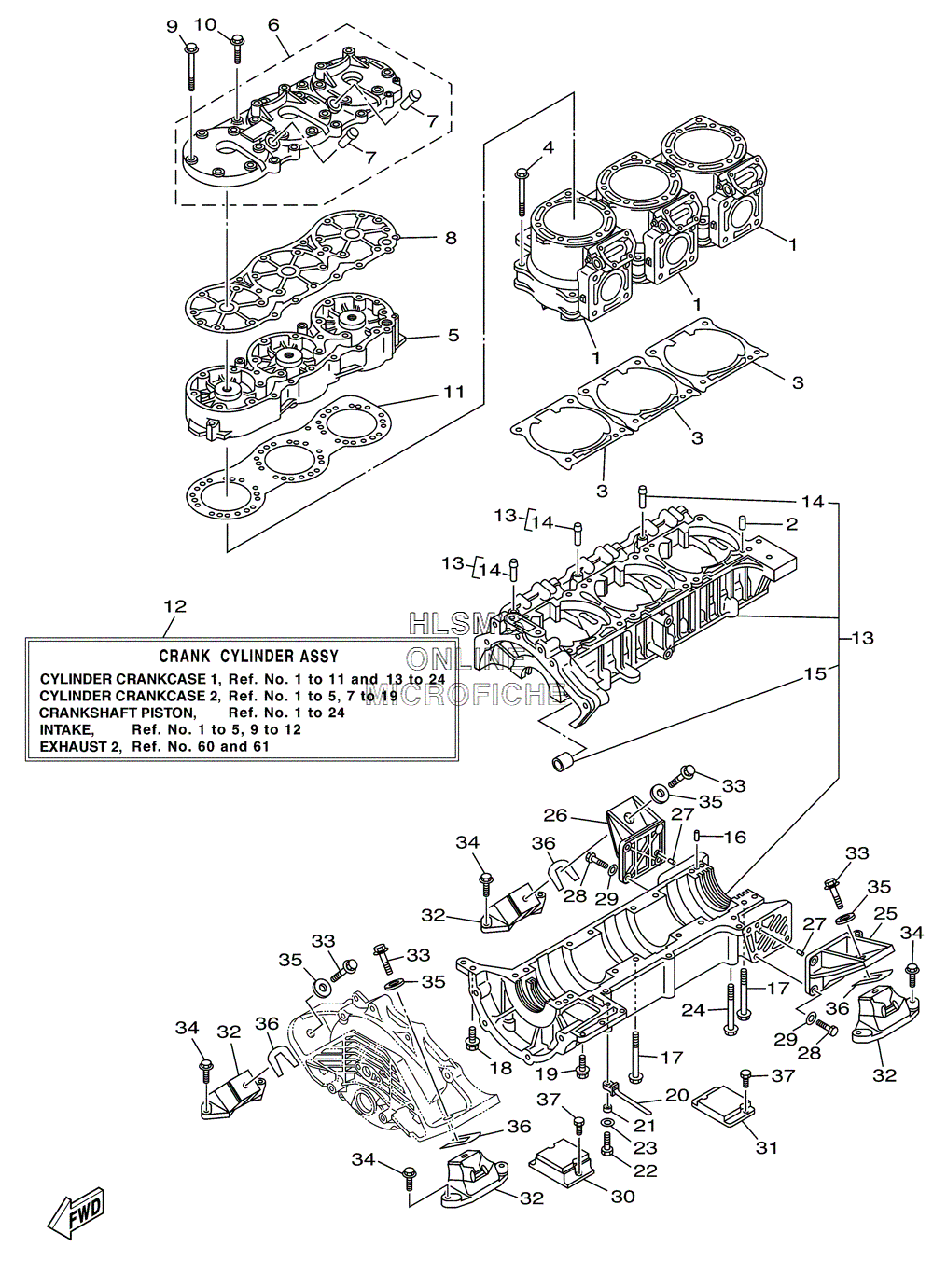

CYLINDER W/ CRANKCASE для Yamaha XA1200A XLT1200 3-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
166V-11311-00-94 CYLINDER 1CYLINDER 1
-
293606-12019-00 PIN, DOWELPIN, DOWEL
-
366E-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
490119-10M07-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
567X-11111-00-8S HEAD, CYLINDER 1HEAD, CYLINDER 1
-
666V-11191-01-8S COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
766E-51129-00-00 ...NIPPLE...NIPPLE
-
866V-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
990119-08M67-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-08MA0-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1166V-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1268N-W0090-12-8S CRANK CYLINDER ASSYCRANK CYLINDER ASSY
-
1368N-15100-00-8S CRANKCASE ASSYCRANKCASE ASSY
-
1466V-14251-00-00 ...NIPPLE...NIPPLE
-
1590380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
1693606-12019-00 PIN, DOWELPIN, DOWEL
-
1790119-08M63-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890119-08M18-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990119-06M13-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090465-12M53-00 CLAMPCLAMP
-
2190387-06M05-00 COLLARCOLLAR
-
2297013-06040-00 BOLTBOLT
-
2392903-06600-00 WASHER, PLATEWASHER, PLATE
-
2490119-06M84-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2568N-21425-00-94 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
2668N-21426-00-94 BRACKET, REAR UPPER 2BRACKET, REAR UPPER 2
-
2793606-12019-00 PIN, DOWELPIN, DOWEL
-
2897013-08025-00 BOLTBOLT
-
2992903-08600-00 WASHER, PLATEWASHER, PLATE
-
3066V-44532-00-94 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
3166V-44574-00-94 STOPPER LWR MOUNT RUBBERSTOPPER LWR MOUNT RUBBER
-
3268N-44517-00-94 MOUNT, RUBBERMOUNT, RUBBER
-
3390119-08827-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3490119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590201-099U3-00 WASHER, PLATEWASHER, PLATE
-
36EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
36EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
36EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
36EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
36EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
-
3790101-06917-00 BOLTBOLT
