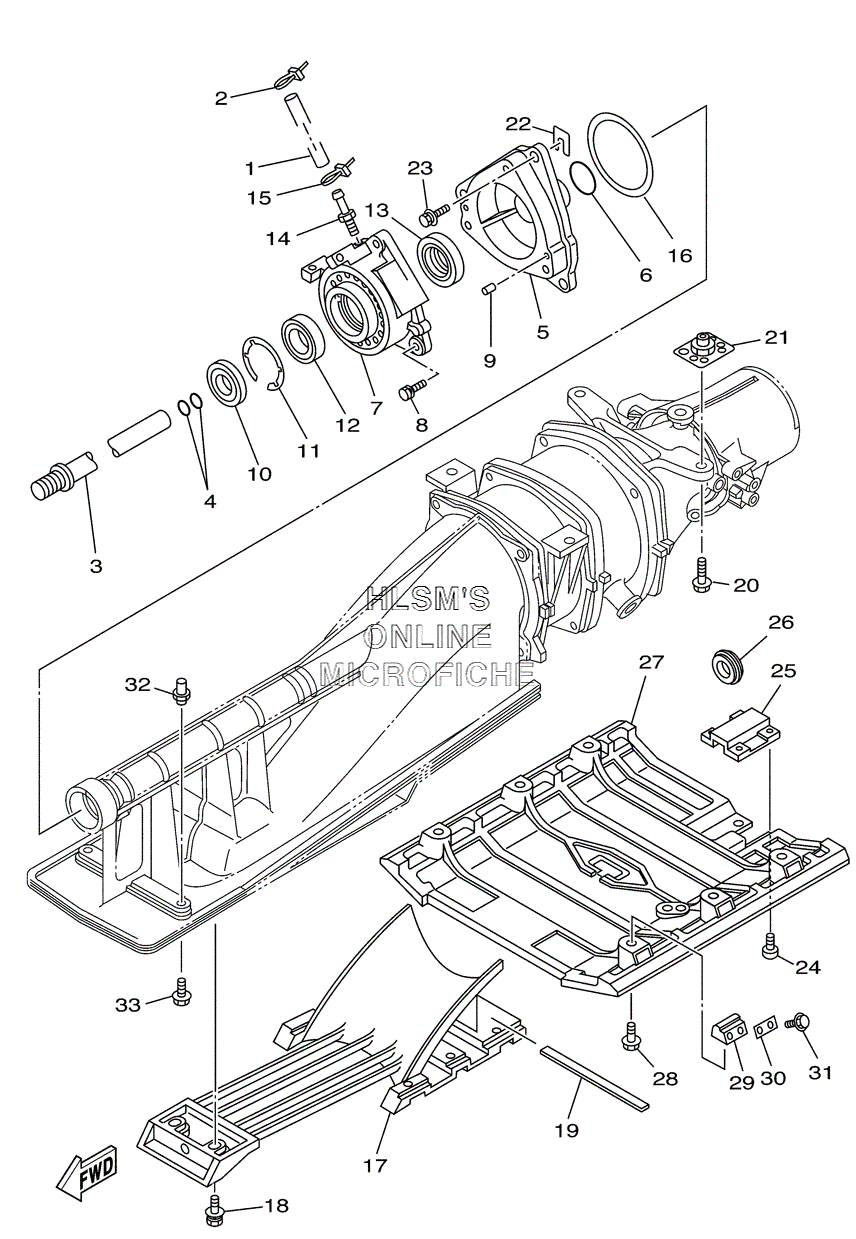

PROPULSION SYSTEM - INTERNAL для Yamaha XL700 WAVERUNNER - 2004 года выпуска
-
№АртикулНазвание
-
190445-09M21-00 HOSE (L445)HOSE (L445)
-
290465-11M10-00 CLAMPCLAMP
-
363N-51323-10-00 SHAFT, COUPLORSHAFT, COUPLOR
-
493210-17MA4-00 O-RINGO-RING
-
565A-G5331-00-00 HOUSING, BEARINGHOUSING, BEARING
-
693210-35M72-00 O-RINGO-RING
-
765U-45332-02-94 HOUSING, BEARINGHOUSING, BEARING
-
890119-089UF-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
993606-12019-00 PIN, DOWELPIN, DOWEL
-
1093101-25M55-00 OIL SEALOIL SEAL
-
1193430-47M04-00 CIRCLIPCIRCLIP
-
1293306-205U6-00 BEARINGBEARING
-
1393101-25M56-00 OIL SEALOIL SEAL
-
1461L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
1590465-11829-00 CLAMPCLAMP
-
166K8-45127-00-00 SEALSEAL
-
1765R-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
1890119-069UC-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1963M-51367-00-00 FELT, PACKINGFELT, PACKING
-
2090119-109U8-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190179-10800-00 NUTNUT
-
22GD0-U7249-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
22GD0-U7249-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
2390119-089UL-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2490149-05904-00 SCREWSCREW
-
25GT3-6273C-00-00 COVER,PLATECOVER,PLATE
-
26GJ8-60469-01-00 CAPCAP
-
27GJ3-U273B-01-00 PLATE 2PLATE 2
-
2890119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
29GJ1-62733-00-00 PACKINGPACKING
-
30GJ1-62663-00-00 PACKING 1PACKING 1
-
3190119-08822-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290179-06814-00 NUTNUT
-
3390119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
