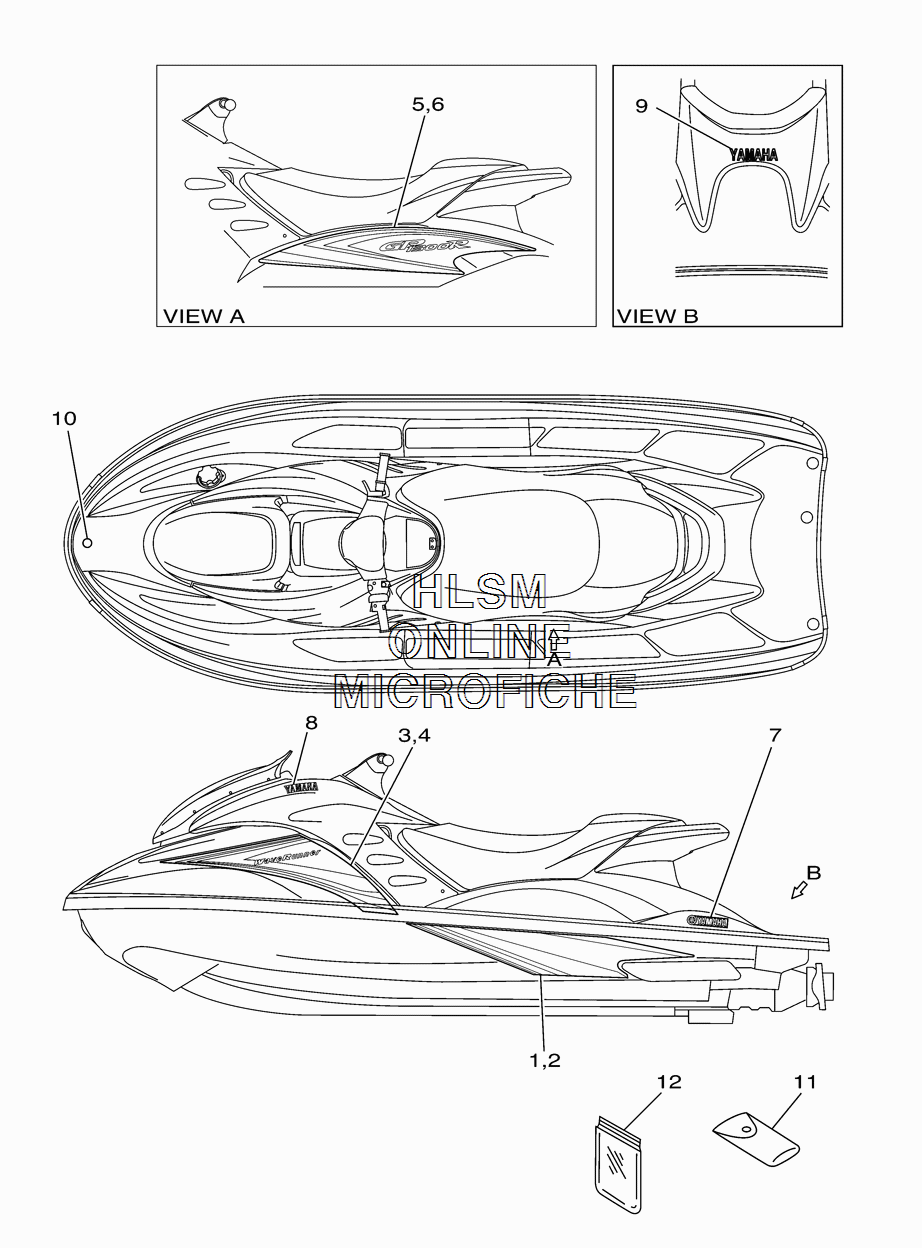

GRAPHICS для Yamaha GP1300R 2-PASS - 2005 года выпуска
-
№АртикулНазвание
-
1F0W-U417B-40-00 GRAPHIC 1 (LH)GRAPHIC 1 (LH)
-
2F0W-U417C-40-00 GRAPHIC 2 (RH)GRAPHIC 2 (RH)
-
3F0W-U417D-40-00 GRAPHIC 3 (LH)GRAPHIC 3 (LH)
-
4F0W-U417E-40-00 GRAPHIC 4 (RH)GRAPHIC 4 (RH)
-
5F1G-U417F-20-00 GRAPHIC 5 (LH)GRAPHIC 5 (LH)
-
6F1G-U417G-20-00 GRAPHIC 6 (RH)GRAPHIC 6 (RH)
-
7F0V-U411C-10-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
8F1G-U4122-20-00 EMBLEM 2EMBLEM 2
-
9GJ3-U4114-52-00 MARK, YAMAHA AMARK, YAMAHA A
-
10F1B-U411H-10-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
11EU0-65986-00-00 TOOL SETTOOL SET
-
12EU0-65901-01-00 TOOL BAGTOOL BAG
