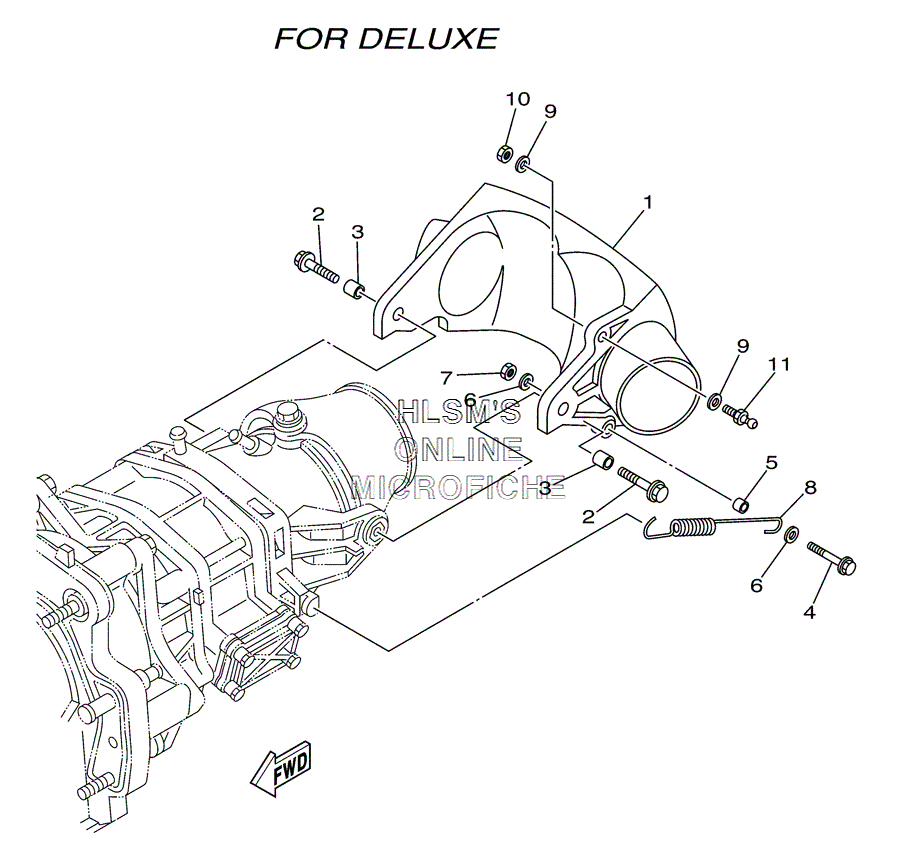

REVERSE GATE для Yamaha VX1100 DELUXE - 2005 года выпуска
-
№АртикулНазвание
-
16D3-R1314-00-00 GATE, REVERSEGATE, REVERSE
-
290119-089UF-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390387-08M30-00 COLLARCOLLAR
-
490119-069UX-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590387-06M30-00 COLLARCOLLAR
-
690201-06801-00 WASHER, PLATEWASHER, PLATE
-
79538R-06600-00 NUTNUT
-
86D3-52358-00-00 SPRING, RETAINERSPRING, RETAINER
-
990201-06801-00 WASHER, PLATEWASHER, PLATE
-
109538R-06600-00 NUTNUT
-
11EU0-U1461-02-00 STUD, JOINT BALLSTUD, JOINT BALL
