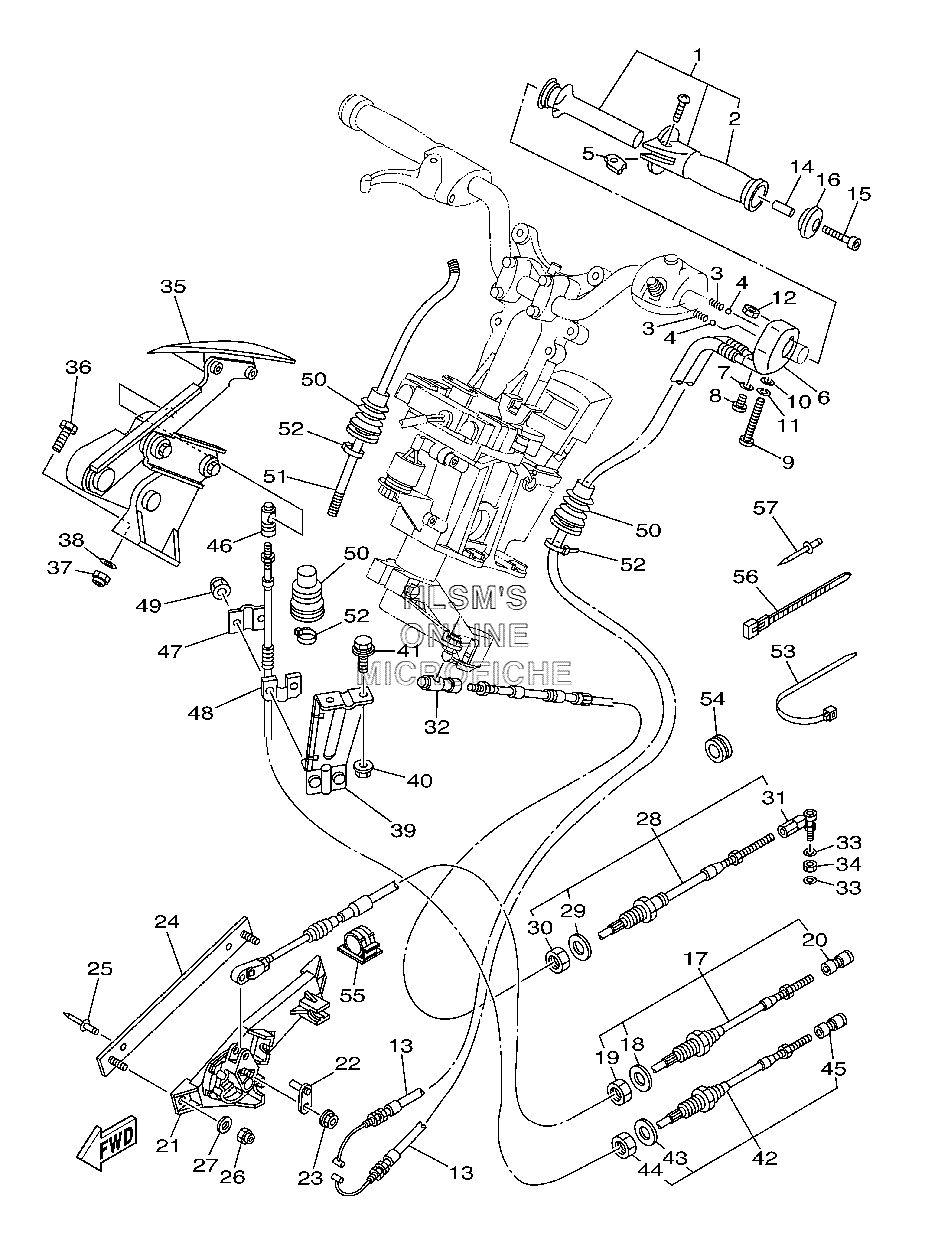

CONTROL CABLES для Yamaha FX 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
1GP7-U157A-00-00 GRIP HANDLE ASSY.GRIP HANDLE ASSY.
-
2GP7-U155C-00-00 ......GRIP, HANDLE......GRIP, HANDLE
-
3GP7-U152P-00-00 SPRINGSPRING
-
4GP7-U152R-00-00 BALLBALL
-
5GP7-U151M-00-00 LEVER ASSYLEVER ASSY
-
6GP7-U152M-00-00 HOUSING ASSYHOUSING ASSY
-
792990-04600-00 WASHER, PLATEWASHER, PLATE
-
898980-04010-00 SCREW, BINDSCREW, BIND
-
997880-06065-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092990-06600-00 WASHER, PLATEWASHER, PLATE
-
119299R-06100-00 WASHERWASHER
-
12GH1-U143B-00-00 NUT,SPECIALNUT,SPECIAL
-
13F1B-U153D-01-00 CABLE, NOZZLE CONTROL 2CABLE, NOZZLE CONTROL 2
-
1490387-05800-00 COLLARCOLLAR
-
1590110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
16GP7-U155F-00-00 GRIP, ENDGRIP, END
-
16F1S-U155F-00-00 GRIP, ENDGRIP, END
-
17F1S-6153E-00-00 CABLE, NOZZLE CONTROL 3CABLE, NOZZLE CONTROL 3
-
18F1B-61438-00-00 ...PACKING...PACKING
-
19F1B-6151S-00-00 ...NUT...NUT
-
20F1B-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
21F0D-U153J-10-00 REMOCON, NOZZLE 2REMOCON, NOZZLE 2
-
22F0D-U152C-10-00 PINPIN
-
239572R-06300-00 NUT, NYLONNUT, NYLON
-
24F0X-U4958-00-00 BASE, REMOCON.BASE, REMOCON.
-
2590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
269572R-06300-00 NUT, NYLONNUT, NYLON
-
279299R-06200-00 WASHERWASHER
-
28F1S-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
29F1B-61438-00-00 ...PACKING...PACKING
-
30F1B-6151S-00-00 ...NUT...NUT
-
31F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
32GK5-U146F-00-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
3390201-06906-00 WASHER, PLATEWASHER, PLATE
-
349538R-06700-00 NUTNUT
-
35F1X-6134A-01-00 REMOCON, LEVER ASSY.REMOCON, LEVER ASSY.
-
3697080-06030-00 BOLTBOLT
-
379572R-06300-00 NUT, NYLONNUT, NYLON
-
3890201-06802-00 WASHER, PLATEWASHER, PLATE
-
39F1X-61467-01-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
409572R-08300-00 NUT, FLANGENUT, FLANGE
-
4190119-08832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
42F1B-6149C-02-00 CABLE, REVERSECABLE, REVERSE
-
43F1B-61438-00-00 ...PACKING...PACKING
-
44F1B-6151S-00-00 ...NUT...NUT
-
45F1B-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
46F1B-61460-00-00 BALL JOINT ASSYBALL JOINT ASSY
-
47GH1-61468-01-00 STOPPER, CABLESTOPPER, CABLE
-
48GU5-6146K-10-00 HOLDER, STOPPERHOLDER, STOPPER
-
499572R-06300-00 NUT, NYLONNUT, NYLON
-
50F0D-6822E-00-00 GROMMETGROMMET
-
51F0D-6773E-00-00 TUBE, 2TUBE, 2
-
5290601-200U1-00 BANDBAND
-
5390464-32801-00 CLAMPCLAMP
-
5490480-279U1-00 GROMMETGROMMET
-
5590600-917U4-00 CLAMP COMP.CLAMP COMP.
-
5690464-32801-00 CLAMPCLAMP
-
5790267-48802-00 RIVET, BLINDRIVET, BLIND
