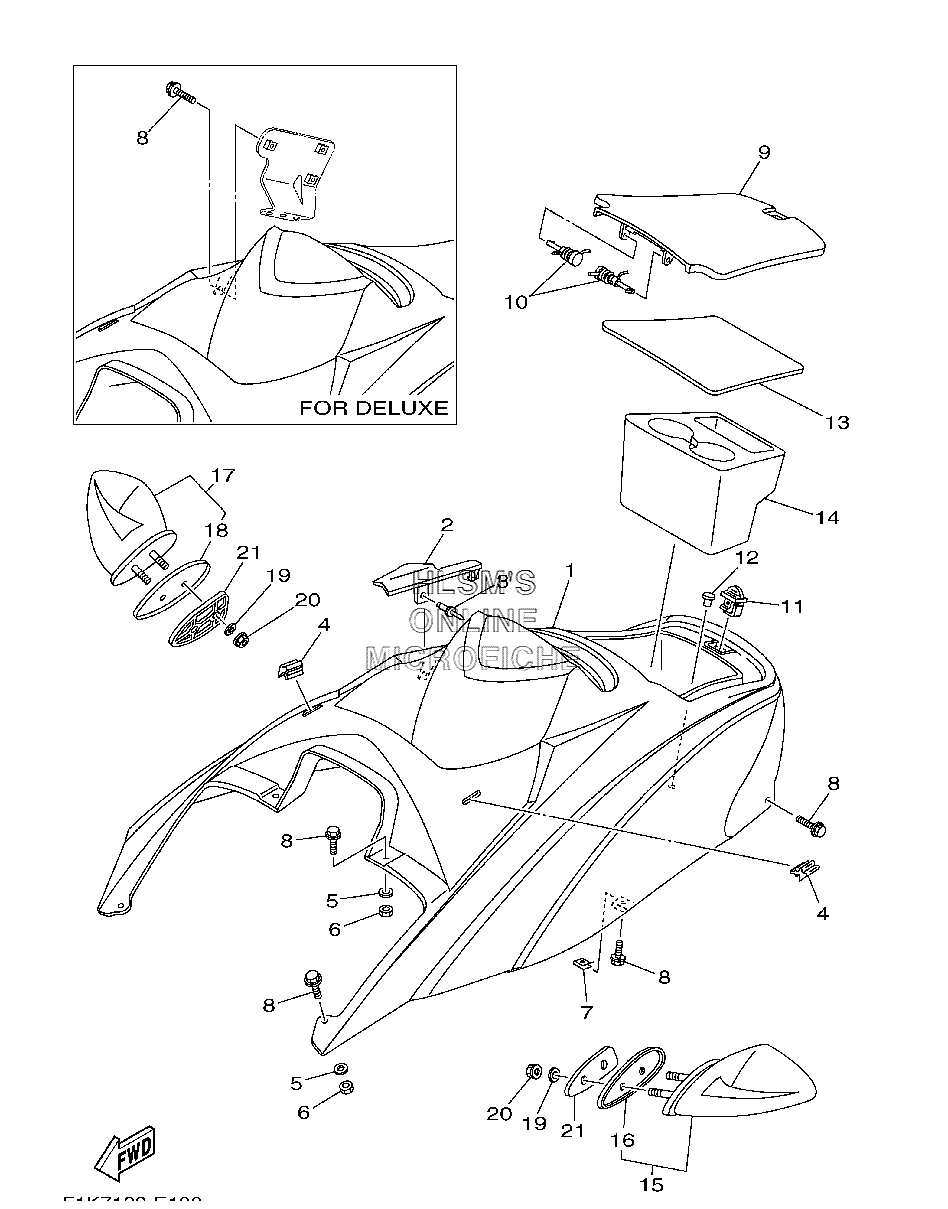

SIDE COVERS для Yamaha VX110 DELUXE 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
1F1K-U516N-02-P0 COVER, ENGINE HATCH (RED)COVER, ENGINE HATCH (RED)
-
1F1K-U516N-10-P0 COVER, ENGINE HATCH (BLUE)COVER, ENGINE HATCH (BLUE)
-
1F1K-U516N-20-P0 COVER, ENGINE HATCH (BLUE)COVER, ENGINE HATCH (BLUE)
-
2F1K-U2723-00-00 SEALSEAL
-
390269-09805-00 RIVETRIVET
-
4F1K-U266C-00-00 PACKING 4PACKING 4
-
59299R-06200-00 WASHERWASHER
-
69572R-06300-00 NUT, NYLONNUT, NYLON
-
790183-06902-00 NUT, SPRINGNUT, SPRING
-
890119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
9F1K-U517H-01-00 LID HATCHLID HATCH
-
10F0X-6517R-01-00 PIN, HINGEPIN, HINGE
-
11GU2-62875-01-00 LOCKLOCK
-
1290605-502U1-00 PLUG, BLINDPLUG, BLIND
-
13F1K-U519D-00-00 PACKING CASEPACKING CASE
-
14F1K-U5633-02-00 HOLDER, DRINKHOLDER, DRINK
-
15F1S-U596B-10-00 MIRROR LHMIRROR LH
-
16F0V-U471E-00-00 ...SPACER 1...SPACER 1
-
17F1S-U596C-10-00 MIRROR RHMIRROR RH
-
18F0V-U471F-00-00 ...SPACER 2...SPACER 2
-
199299R-08200-00 WASHERWASHER
-
209572R-08300-00 NUT, FLANGENUT, FLANGE
-
21F1B-U5646-00-00 PLATEPLATE
