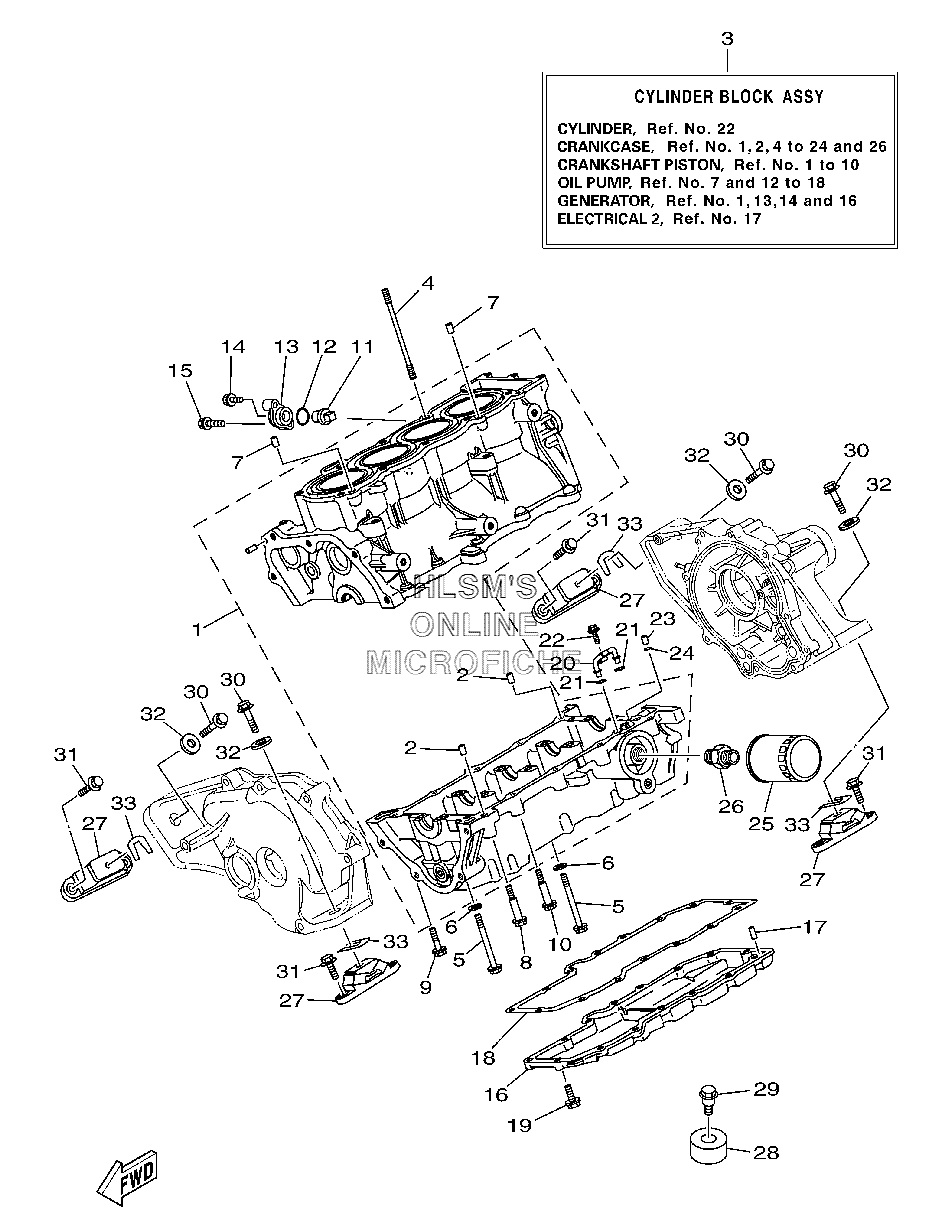

CRANKCASE для Yamaha VX110 SPORT 3-PERSON - 2006 года выпуска
-
№АртикулНазвание
-
16D3-15100-00-94 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
36D3-W009B-00-94 CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
490116-10619-00 BOLT, STUDBOLT, STUD
-
590105-093A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690201-096J9-00 WASHER, PLATEWASHER, PLATE
-
799530-10014-00 PIN, DOWELPIN, DOWEL
-
890109-06051-00 BOLTBOLT
-
990105-06033-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-06M17-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1167F-11325-01-00 ANODEANODE
-
1267F-11328-00-00 GROMMET, ANODEGROMMET, ANODE
-
1369J-11327-01-94 COVER, ANODECOVER, ANODE
-
1497595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1597595-08540-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
166B6-1310A-00-94 PAN, OILPAN, OIL
-
1793603-14M15-00 PIN, DOWELPIN, DOWEL
-
186B6-13557-00-00 GASKETGASKET
-
1997513-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2060E-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2193210-06667-00 O-RINGO-RING
-
2295027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2399530-08012-00 PIN, DOWELPIN, DOWEL
-
2493210-08001-00 O-RINGO-RING
-
255GH-13440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
2690401-20145-00 BOLT, UNIONBOLT, UNION
-
2767X-44517-10-94 MOUNT RUBBERMOUNT RUBBER
-
286D3-44574-00-00 STOPPER LOWER MOUNT RUBBERSTOPPER LOWER MOUNT RUBBER
-
2990109-06M92-00 BOLTBOLT
-
3090119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290201-099U3-00 WASHER, PLATEWASHER, PLATE
-
33EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
33EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
33EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
33EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
33EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
