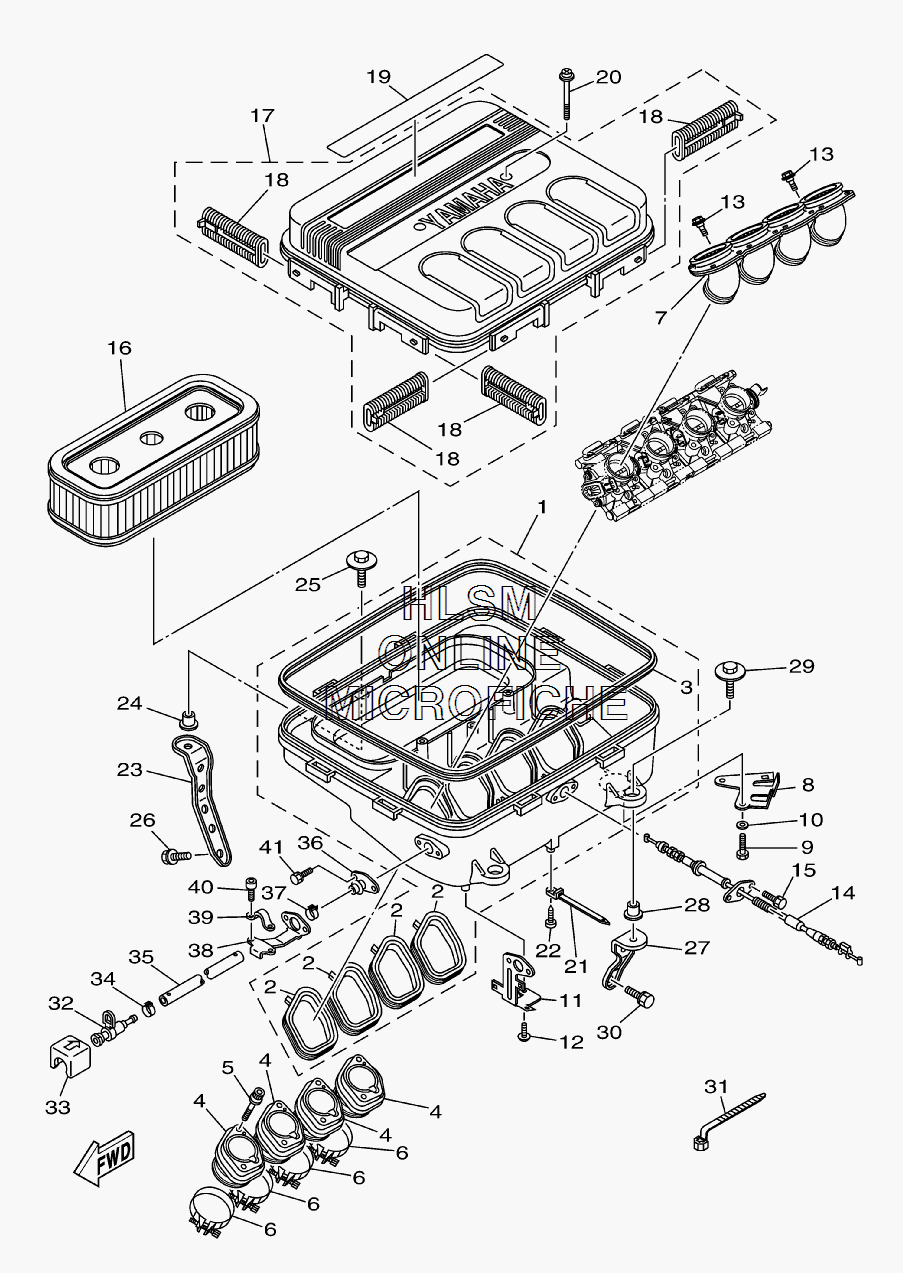

AIR SILENCER W/ INTAKE для Yamaha FX 3-PASS - 2007 года выпуска
-
№АртикулНазвание
-
160E-14410-02-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
260E-14239-00-00 ...SEAL...SEAL
-
360E-14457-00-00 ...SEAL...SEAL
-
460E-13795-00-00 JOINT, THROTTLE BODY 1JOINT, THROTTLE BODY 1
-
590110-08020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690450-57002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
760E-1440A-02-00 RIBBON, SUB ASSYRIBBON, SUB ASSY
-
86B6-14869-00-00 BRACKET 3BRACKET 3
-
997013-06016-00 BOLTBOLT
-
1092903-06600-00 WASHER, PLATEWASHER, PLATE
-
1160E-14867-00-00 BRACKETBRACKET
-
1290160-05003-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
1390109-06053-00 BOLTBOLT
-
146B6-26311-12-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1590119-06078-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
166B6-14451-01-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1760E-14420-01-00 AIR CLEANER ASSY 2AIR CLEANER ASSY 2
-
1866V-13898-00-00 ...HOLDER...HOLDER
-
1960E-2339E-A0-00 GRAPHIC 1GRAPHIC 1
-
2090159-05006-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2190465-12M53-00 CLAMPCLAMP
-
2290160-05003-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2360E-14413-00-00 STAYSTAY
-
2460E-14449-00-94 COLLARCOLLAR
-
2590119-08050-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690119-08032-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2760E-14414-00-00 STAY 2STAY 2
-
2860E-14449-00-94 COLLARCOLLAR
-
2990119-08050-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-08032-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190464-20005-00 CLAMPCLAMP
-
3260E-24300-01-00 FUEL PIPE JOINTFUEL PIPE JOINT
-
3360E-24474-00-00 COVERCOVER
-
3490450-17M17-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3560E-14294-00-00 HOSEHOSE
-
3660E-24329-00-00 SEALSEAL
-
3790467-090A4-00 CLIPCLIP
-
3860E-24364-00-00 STAYSTAY
-
3960E-24366-00-00 CLAMP, FUEL PIPE 1CLAMP, FUEL PIPE 1
-
4091380-04008-00 BOLTBOLT
-
4197513-06516-00 BOLT, WITH WASHERBOLT, WITH WASHER
