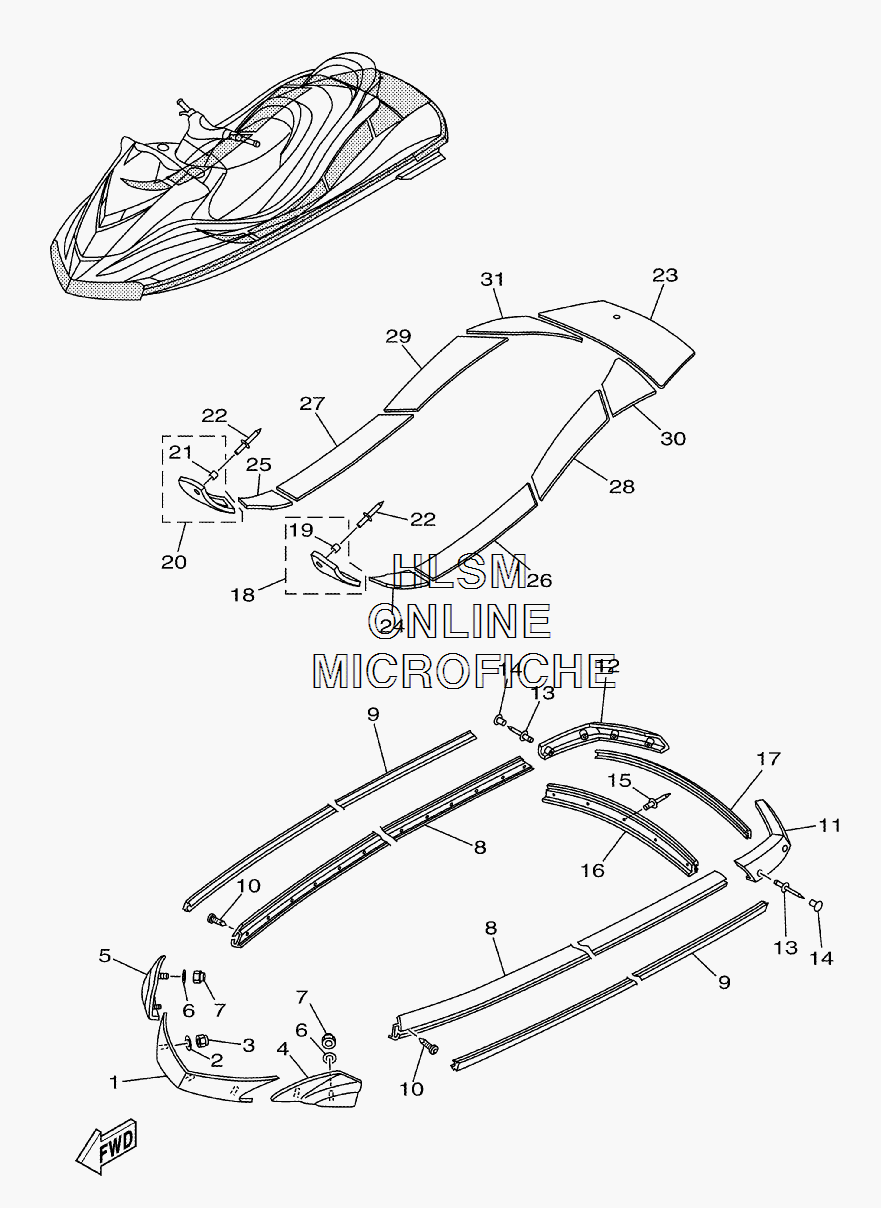

BUMBER W/ GUNWALE MAT для Yamaha FX CRUISER 3-PASS - 2007 года выпуска
-
№АртикулНазвание
-
1F1S-U2501-10-00 BOW GUNWALE COMP. (DARK GRAY SOLID D)BOW GUNWALE COMP. (DARK GRAY SOLID D)
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, NYLONNUT, NYLON
-
4F1S-U252E-10-00 JOINT, GUNWALE LH (DARK GRAY SOLID D)JOINT, GUNWALE LH (DARK GRAY SOLID D)
-
5F1S-U252F-10-00 JOINT, GUNWALE RH (DARK GRAY SOLID D)JOINT, GUNWALE RH (DARK GRAY SOLID D)
-
69299R-06200-00 WASHERWASHER
-
79572R-06300-00 NUT, NYLONNUT, NYLON
-
8F1B-U2512-00-00 GUNWALE, SIDE (LIGHT SILVER 1)GUNWALE, SIDE (LIGHT SILVER 1)
-
9F1B-U2519-10-00 INNER, GUNWALE (BLACK)INNER, GUNWALE (BLACK)
-
1090169-059U1-00 SCREW, TAPPINGSCREW, TAPPING
-
11F1B-U251D-02-00 GUNWALE, STERN 1 (GRAY)GUNWALE, STERN 1 (GRAY)
-
12F1B-U251E-02-00 GUNWALE, STERN 2 (GRAY)GUNWALE, STERN 2 (GRAY)
-
1390267-489UT-00 RIVET, BLINDRIVET, BLIND
-
14F0D-U352E-10-00 PLUG, MUSHROOM (BLACK)PLUG, MUSHROOM (BLACK)
-
1590267-489US-00 RIVET, BLINDRIVET, BLIND
-
16F1B-U252C-00-00 COVER, GUNWALE 1 (SOLID GREY C)COVER, GUNWALE 1 (SOLID GREY C)
-
17F1B-U252D-10-00 COVER, GUNWALE 2 (BLACK)COVER, GUNWALE 2 (BLACK)
-
18F1S-U350V-00-00 FOOT STEP ASSY., LH (BLACK)FOOT STEP ASSY., LH (BLACK)
-
1990387-06867-00 ...COLLAR...COLLAR
-
20F1S-U350W-00-00 FOOT STEP ASSY., RH (BLACK)FOOT STEP ASSY., RH (BLACK)
-
2190387-06867-00 ...COLLAR...COLLAR
-
2290267-48819-00 RIVET, BLINDRIVET, BLIND
-
23F1S-U3581-11-00 MAT, UPPER (DARK GRAY)MAT, UPPER (DARK GRAY)
-
24F1S-U351H-02-00 MAT, STEP 1 (DARK GRAY)MAT, STEP 1 (DARK GRAY)
-
25F1S-U351J-02-00 MAT, STEP 2 (DARK GRAY)MAT, STEP 2 (DARK GRAY)
-
26F1S-U351K-11-00 MAT, STEP 3 (DARK GRAY)MAT, STEP 3 (DARK GRAY)
-
27F1S-U351M-11-00 MAT, STEP 4 (DARK GRAY)MAT, STEP 4 (DARK GRAY)
-
28F1S-U351N-11-00 MAT, STEP 5 (DARK GRAY)MAT, STEP 5 (DARK GRAY)
-
29F1S-U351P-11-00 MAT, STEP 6 (DARK GRAY)MAT, STEP 6 (DARK GRAY)
-
30F1S-U351R-11-00 MAT, STEP 7 (DARK GRAY)MAT, STEP 7 (DARK GRAY)
-
31F1S-U351S-11-00 MAT, STEP 8MAT, STEP 8
