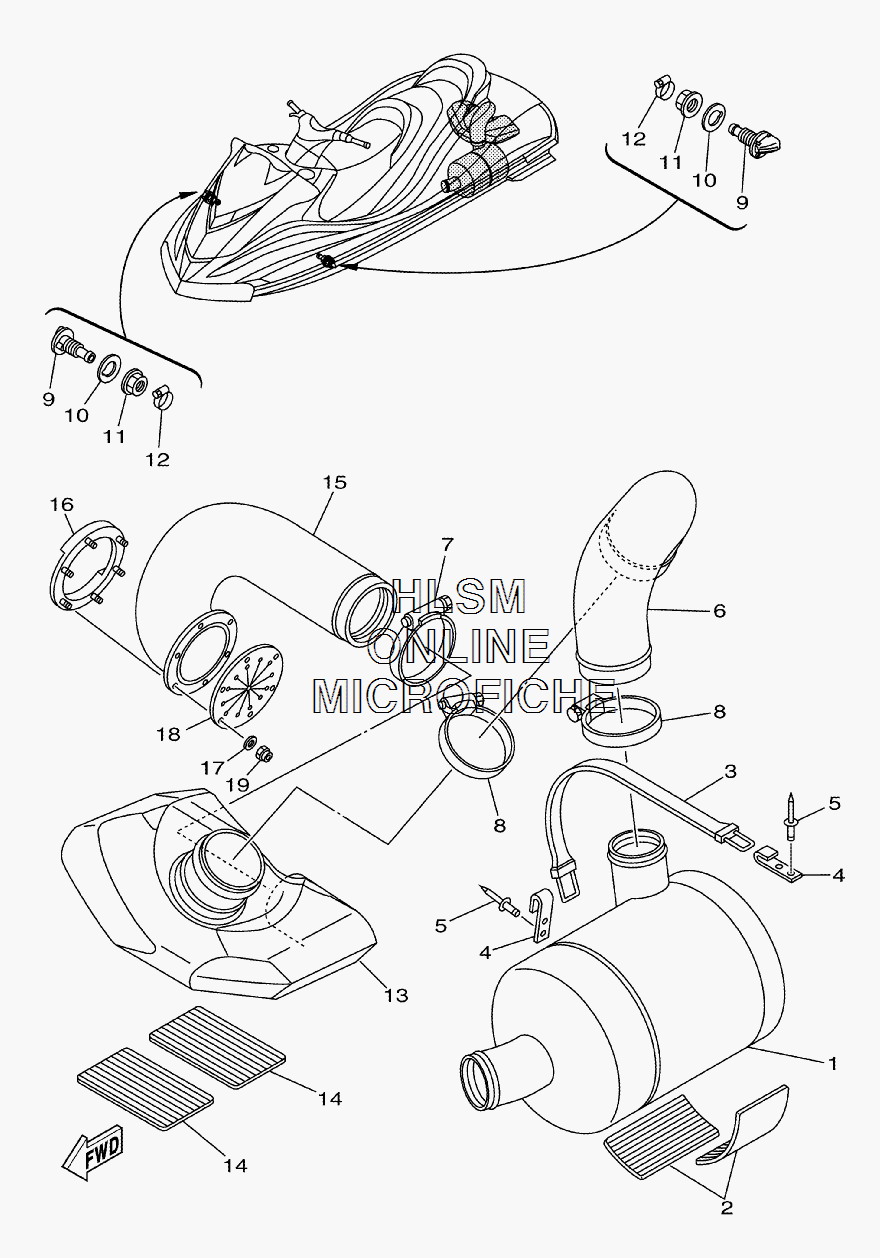

EXHAUST - WATER BOX для Yamaha FX CRUISER HO 3-PASS - 2007 года выпуска
-
№АртикулНазвание
-
1F1X-U7550-00-00 WATER LOCK COMP.WATER LOCK COMP.
-
2F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
3EW2-67821-00-00 BAND, FUEL TANKBAND, FUEL TANK
-
4GA7-65772-00-00 HOOK AHOOK A
-
590267-489U1-00 RIVET, BLINDRIVET, BLIND
-
6F1B-U7555-02-00 HOSE, EXHAUSTHOSE, EXHAUST
-
790601-195UD-00 BAND, HOSE 95BAND, HOSE 95
-
890450-99801-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
9F1B-6753B-00-00 PILOT, WATERPILOT, WATER
-
10F1B-67564-00-00 GASKETGASKET
-
11F0X-62733-00-00 NUTNUT
-
1290601-118UF-00 NYLON CLIP 1NYLON CLIP 1
-
13F0X-U4261-13-00 TANK, WATERTANK, WATER
-
14F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
15F1B-U758D-02-00 HOSE, EXHAUST 3HOSE, EXHAUST 3
-
16F1S-U757B-00-00 PLATEPLATE
-
179299R-06200-00 WASHERWASHER
-
18F1B-U751G-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
199572R-06300-00 NUT, NYLONNUT, NYLON
