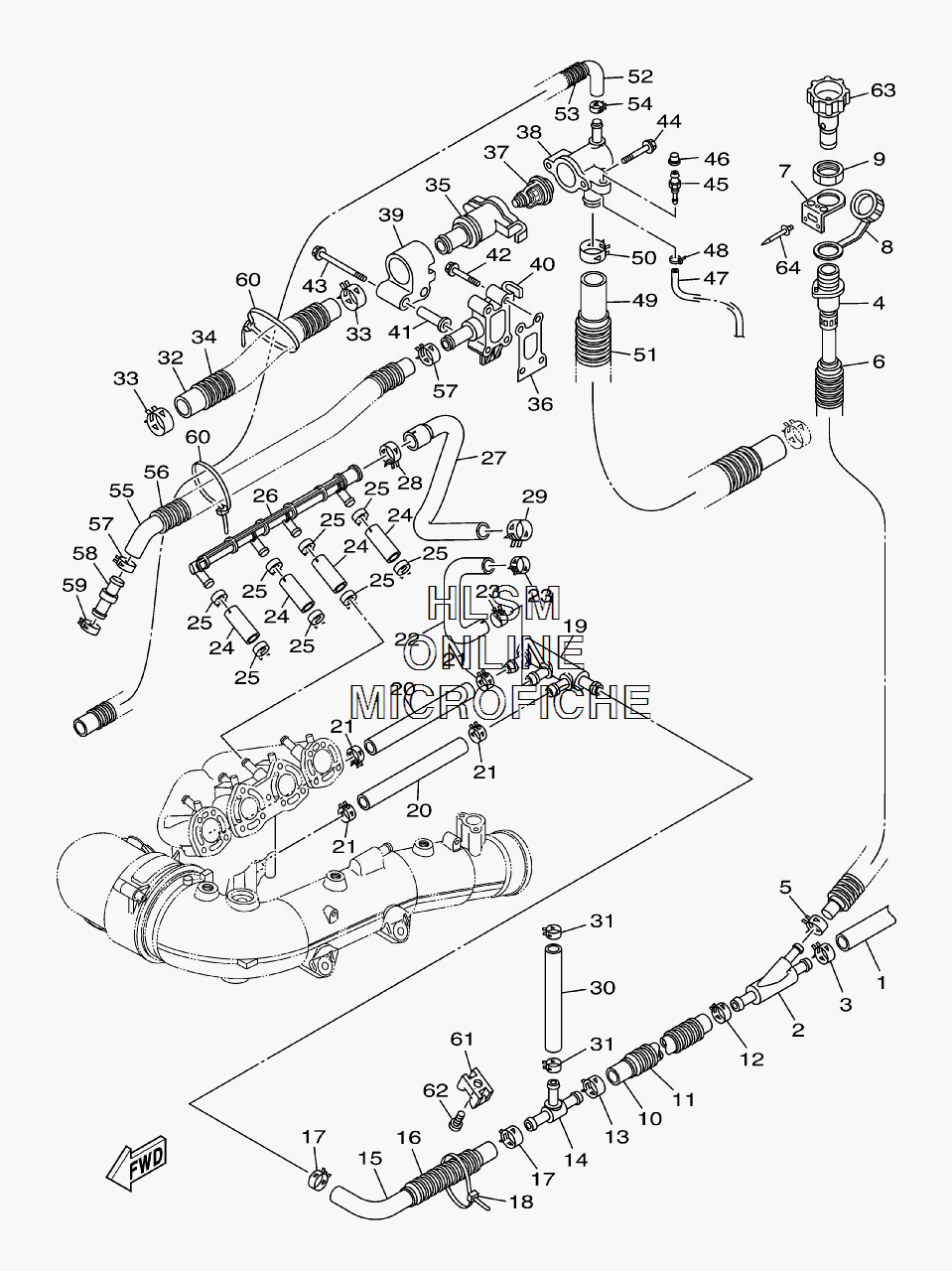

EXHAUST - HOSES для Yamaha FX HO 3-PASS - 2007 года выпуска
-
№АртикулНазвание
-
160E-E243A-00-00 HOSE 1HOSE 1
-
260E-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
390467-200A0-00 CLIPCLIP
-
460E-12580-00-00 JOINT ASSYJOINT ASSY
-
590467-150A0-00 CLIPCLIP
-
690446-24M79-00 HOSE (L230)HOSE (L230)
-
760E-12443-00-00 STAYSTAY
-
8682-84385-01-00 CAP,1CAP,1
-
9EU0-61652-00-00 NUTNUT
-
1090445-21804-00 HOSE (L370)HOSE (L370)
-
1190447-22003-00 HOSE, WITH SPRING (L300)HOSE, WITH SPRING (L300)
-
1290467-200A0-00 CLIPCLIP
-
1390467-200A0-00 CLIPCLIP
-
1460E-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
1560E-1243E-00-00 HOSE 2HOSE 2
-
1690447-22001-00 HOSE, WITH SPRING (L100)HOSE, WITH SPRING (L100)
-
1790467-200A0-00 CLIPCLIP
-
1890465-13M24-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
1960E-12582-00-00 JOINT, HOSE 2JOINT, HOSE 2
-
2090445-18003-00 HOSE (L150)HOSE (L150)
-
2190467-160A0-00 CLIPCLIP
-
226B6-1243F-00-00 HOSE, 3HOSE, 3
-
2390467-160A0-00 CLIPCLIP
-
246B6-12576-10-00 HOSE 1HOSE 1
-
2590467-170A0-00 CLIPCLIP
-
2660E-12469-00-00 JOINT 1JOINT 1
-
276B6-12577-10-00 HOSE 2HOSE 2
-
2890467-240A1-00 CLIPCLIP
-
2990467-210A0-00 CLIPCLIP
-
3090445-18003-00 HOSE (L150)HOSE (L150)
-
3190467-160A0-00 CLIPCLIP
-
3290445-26002-00 HOSE (L205)HOSE (L205)
-
3390467-240A0-00 CLIPCLIP
-
3490447-28005-00 HOSE, WITH SPRING (L100)HOSE, WITH SPRING (L100)
-
3560E-12417-10-94 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
3660E-12435-00-00 GASKETGASKET
-
3760E-12411-01-00 THERMOSTATTHERMOSTAT
-
3860E-12413-10-94 COVER, THERMOSTATCOVER, THERMOSTAT
-
396B6-12499-00-00 JOINTJOINT
-
406D3-12446-00-00 JOINTJOINT
-
4190387-06083-00 COLLARCOLLAR
-
4290105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
4390105-06054-00 BOLT, FLANGEBOLT, FLANGE
-
4490105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
4561L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
46663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
4790445-09M33-00 HOSE (L580)HOSE (L580)
-
4890465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
4990445-25003-00 HOSE (L900)HOSE (L900)
-
5090467-240A0-00 CLIPCLIP
-
5190447-28002-00 HOSE, WITH SPRING (L800)HOSE, WITH SPRING (L800)
-
5260E-12552-00-00 HOSE 8HOSE 8
-
5390447-22002-00 HOSE, WITH SPRING (L1150)HOSE, WITH SPRING (L1150)
-
5490467-120A0-00 CLIPCLIP
-
5590445-21004-00 HOSE (L530)HOSE (L530)
-
5690446-27M55-00 TUBE (L400)TUBE (L400)
-
5790467-200A0-00 CLIPCLIP
-
5860E-51142-00-00 CONNECTIONCONNECTION
-
5990467-200A0-00 CLIPCLIP
-
6090465-14M66-00 CLAMPCLAMP
-
6160E-1244E-00-00 BRACKET 1BRACKET 1
-
6297980-05210-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
6367X-E2590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
6490267-48802-00 RIVET, BLINDRIVET, BLIND
