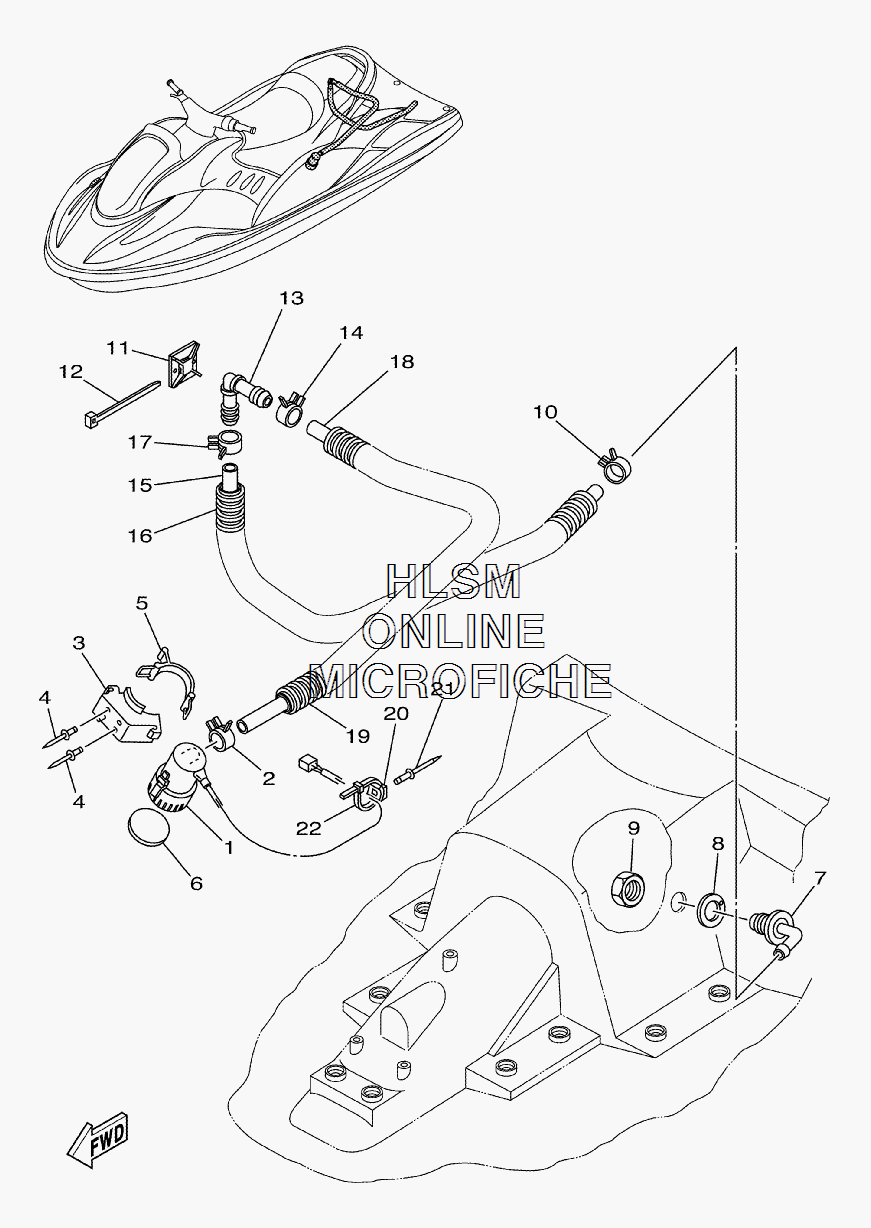

BILGE PUMP для Yamaha GP1300R 2-PASS - 2007 года выпуска
-
№АртикулНазвание
-
1F1B-U8360-01-00 BILGE PUMP ASSYBILGE PUMP ASSY
-
290467-210A0-00 CLIPCLIP
-
3F1B-U7698-01-00 BRACKETBRACKET
-
490267-489UP-00 RIVET, BLINDRIVET, BLIND
-
5GA7-68218-00-00 BAND, BATTERYBAND, BATTERY
-
6F1B-U7656-00-00 PACKING, BILGEPACKING, BILGE
-
7F1B-6224E-00-00 BODY, DRAIN 3BODY, DRAIN 3
-
8F1S-U7525-01-00 PACKING (BODY DRAIN)PACKING (BODY DRAIN)
-
9F1B-62241-00-00 DRAIN, COCKPITDRAIN, COCKPIT
-
1090467-250A0-00 CLIPCLIP
-
11F1B-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
1290464-40825-00 CLAMPCLAMP
-
13F1G-U7817-01-00 HOLDER, FILTERHOLDER, FILTER
-
1490467-250A0-00 CLIPCLIP
-
15F1B-U7626-00-00 HOSE 1HOSE 1
-
1690447-28004-00 HOSE, WITH SPRING (L800)HOSE, WITH SPRING (L800)
-
1790467-250A0-00 CLIPCLIP
-
18F1B-U7628-00-00 HOSE, DRAIN 3HOSE, DRAIN 3
-
1990447-28004-00 HOSE, WITH SPRING (L800)HOSE, WITH SPRING (L800)
-
2090600-917U4-00 CLAMP COMP.CLAMP COMP.
-
2190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
2290464-32801-00 CLAMPCLAMP
