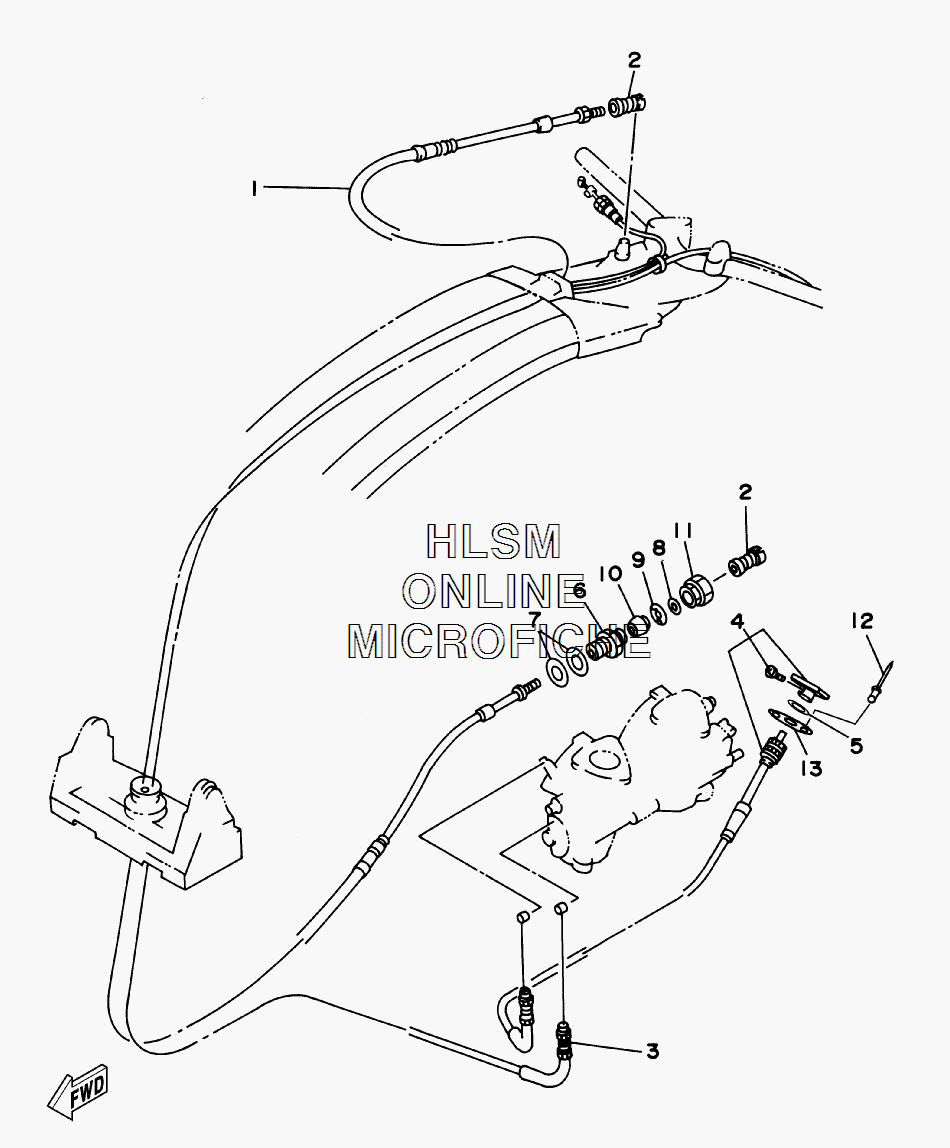

CONTROL CABLES для Yamaha SUPERJET - 2007 года выпуска
-
№АртикулНазвание
-
1GM6-61481-10-00 CABLE, STEERINGCABLE, STEERING
-
2EU0-61461-30-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
3GM6-67252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
4GM6-67242-00-00 CABLE, CHOKECABLE, CHOKE
-
590201-11008-00 WASHER, PLATEWASHER, PLATE
-
6EU0-61436-00-00 BODY, CABLE CONNECTORBODY, CABLE CONNECTOR
-
7EU0-61438-00-00 PACKING (C)PACKING (C)
-
8EU0-61446-00-00 WASHER 30WASHER 30
-
9EU0-61486-00-00 STOPPERSTOPPER
-
10EU0-61435-00-00 SEAL, PIPE 30SEAL, PIPE 30
-
11EU0-62694-00-00 CAPCAP
-
1290267-40945-00 RIVET, BLINDRIVET, BLIND
-
1390209-12920-00 WASHER,SPEC'L SHAPEWASHER,SPEC'L SHAPE
