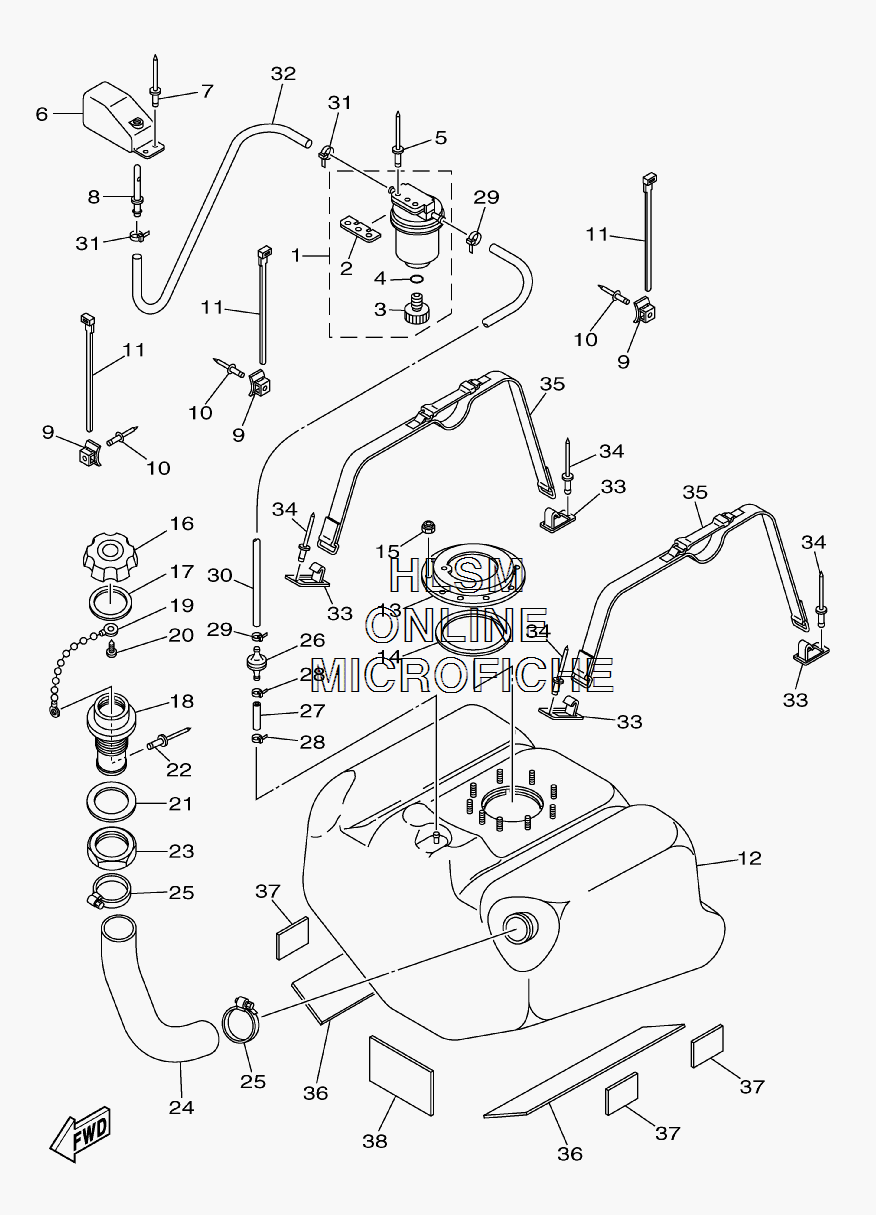

FUEL TANK для Yamaha VX CRUISER 3-PASS - 2007 года выпуска
-
№АртикулНазвание
-
1EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
2EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
370R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
470R-24489-00-00 ...O-RING...O-RING
-
590267-489U2-00 RIVET, BLINDRIVET, BLIND
-
6GP7-62159-02-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
8F1G-62149-00-00 PIPE, VENTILATIONPIPE, VENTILATION
-
990600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1190464-32801-00 CLAMPCLAMP
-
12F1K-U7711-02-00 TANK, FUELTANK, FUEL
-
13F1B-U7773-00-00 RINGRING
-
14F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
159572R-06300-00 NUT, NYLONNUT, NYLON
-
16GP7-U7831-11-00 CAP, FUEL FILLER (BLACK)CAP, FUEL FILLER (BLACK)
-
17GP7-U7832-01-00 PACKINGPACKING
-
18GP7-U7833-10-00 SOCKET (BLACK)SOCKET (BLACK)
-
19GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
2090169-049U1-00 TAPPING SCREWTAPPING SCREW
-
21GP7-U7834-00-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
2290267-329UR-00 RIVET, BLINDRIVET, BLIND
-
23GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
24F1K-U7844-01-00 HOSEHOSE
-
2590601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
26EU0-67767-31-00 CHECK VALVECHECK VALVE
-
27GP7-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
2890465-11829-00 CLAMPCLAMP
-
2990465-11829-00 CLAMPCLAMP
-
30F1K-U785G-00-00 HOSE, AIR VENTHOSE, AIR VENT
-
3190465-11829-00 CLAMPCLAMP
-
32F0D-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
33F1K-U5772-02-00 HOOK AHOOK A
-
3490267-489U1-00 RIVET, BLINDRIVET, BLIND
-
35F1K-67743-00-00 BELT, TANK 1BELT, TANK 1
-
36F1K-U759B-00-00 MAT 1MAT 1
-
37F1B-U759C-00-00 MAT 2MAT 2
-
38F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
