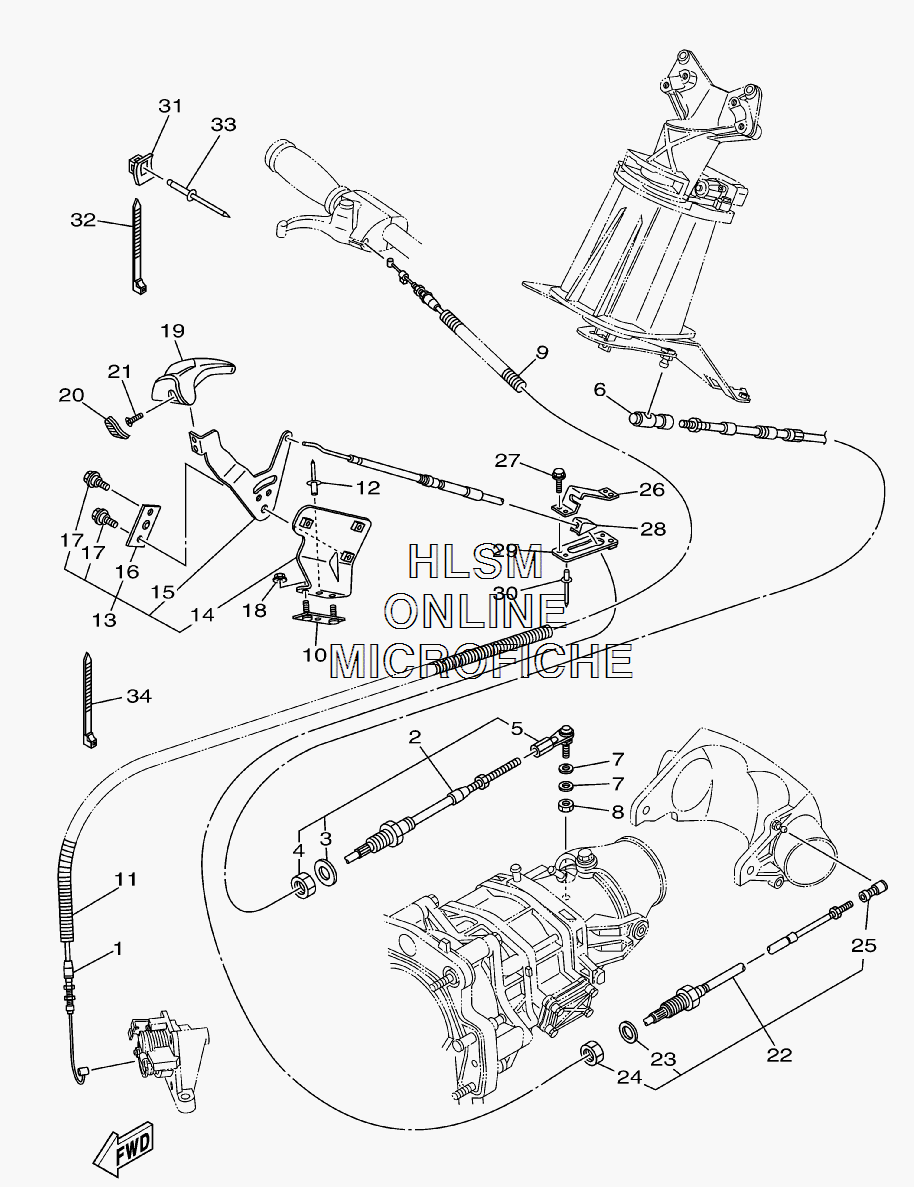

CONTROL CABLES для Yamaha VX DELUXE 3-PASS - 2007 года выпуска
-
№АртикулНазвание
-
16D3-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
2F1K-61481-01-00 CABLE, STEERINGCABLE, STEERING
-
3F1B-61438-00-00 ...PACKING...PACKING
-
4F1B-6151S-00-00 ...NUT...NUT
-
5F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
6GK5-U146F-00-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
790201-06906-00 WASHER, PLATEWASHER, PLATE
-
89538R-06700-00 NUTNUT
-
990447-06802-00 TUBETUBE
-
10F1K-U826C-02-00 BRACKETBRACKET
-
1190447-06800-00 TUBETUBE
-
1290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
13F1K-U134A-00-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
14F1K-U1794-02-00 ...BRACKET...BRACKET
-
15F1K-U151N-02-00 ...LEVER...LEVER
-
16F1K-U152N-00-00 ...DETENT PLATE...DETENT PLATE
-
17F1K-U1355-00-00 ...BOLT...BOLT
-
189572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
19F1K-U2714-02-00 GRIPGRIP
-
20F1K-U1336-00-00 DAMPER, STOPPERDAMPER, STOPPER
-
2190151-05802-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
22F1K-6149C-00-00 CABLE, REVERSECABLE, REVERSE
-
23F1B-61438-00-00 ...PACKING...PACKING
-
24F1B-6151S-00-00 ...NUT...NUT
-
25F1B-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
26F1K-U1467-11-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
2790119-06878-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
28F1K-U146G-01-00 PACKING, CABLEPACKING, CABLE
-
29F1K-U1316-02-00 PLATE, STOPPERPLATE, STOPPER
-
3090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3190600-917U4-00 CLAMP COMP.CLAMP COMP.
-
3290464-32801-00 CLAMPCLAMP
-
3390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3490464-40825-00 CLAMPCLAMP
