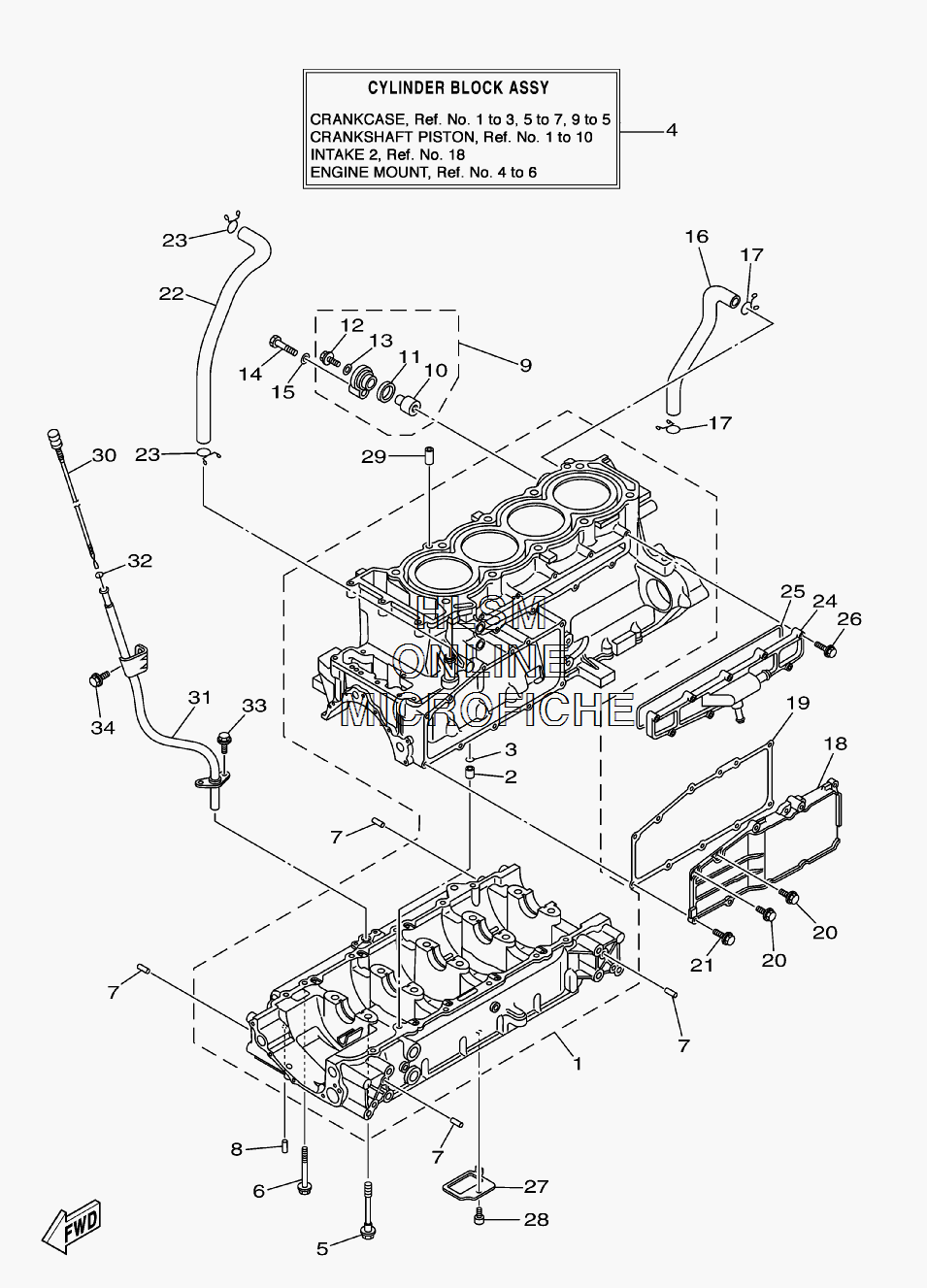

CRANKCASE для Yamaha FX CRUISER SUPER HO - 2008 года выпуска
-
№АртикулНазвание
-
16S5-15100-00-94 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10114-00 ...PIN, DOWEL...PIN, DOWEL
-
393210-11453-00 ...O-RING...O-RING
-
46S5-W009B-00-94 CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
590105-10071-00 BOLT, FLANGEBOLT, FLANGE
-
695814-06070-00 BOLT, FLANGEBOLT, FLANGE
-
793606-12019-00 PIN, DOWELPIN, DOWEL
-
893604-10M03-00 PIN, DOWELPIN, DOWEL
-
969J-11301-10-00 ANODE COVER ASSYANODE COVER ASSY
-
1068V-11325-02-00 ...ANODE...ANODE
-
1167F-11328-00-00 ...GROMMET, ANODE...GROMMET, ANODE
-
1290105-06M07-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1390430-06M03-00 ...GASKET...GASKET
-
1497095-08040-00 BOLTBOLT
-
1592995-08600-00 WASHERWASHER
-
166S5-11377-00-00 HOSEHOSE
-
1790467-190A0-00 CLIPCLIP
-
186S5-1131M-00-94 COVERCOVER
-
196S5-13557-00-00 GASKETGASKET
-
2095024-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2195024-06020-00 BOLT, FLANGEBOLT, FLANGE
-
226S5-11126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
2390467-190A0-00 CLIPCLIP
-
246S5-12469-00-94 JOINT 1JOINT 1
-
256S5-12517-00-00 GASKET, WATER INLETGASKET, WATER INLET
-
2695023-06025-00 BOLT, FLANGEBOLT, FLANGE
-
276S5-13337-00-00 PLATE, BAFFLE LOWERPLATE, BAFFLE LOWER
-
2890110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2999530-10114-00 PIN, DOWELPIN, DOWEL
-
306S5-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
316S5-8572F-00-00 PIPE, OIL LEVELPIPE, OIL LEVEL
-
3293210-12790-00 O-RINGO-RING
-
3395880-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3495023-06012-00 BOLTBOLT
