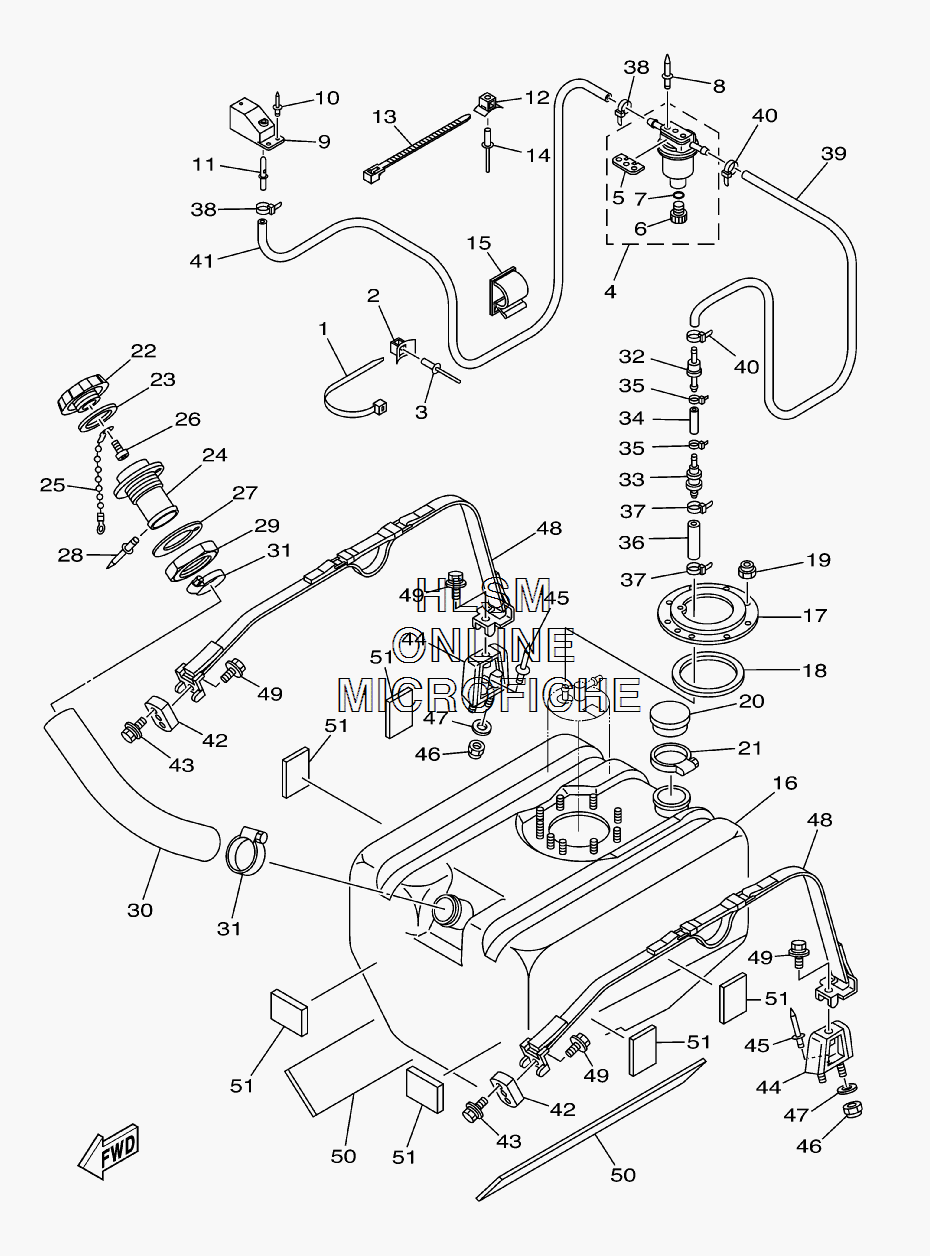

FUEL TANK для Yamaha FX CRUISER - 2008 года выпуска
-
№АртикулНазвание
-
190464-99804-00 CLAMPCLAMP
-
290600-917U4-00 CLAMP COMP.CLAMP COMP.
-
390267-48802-00 RIVET, BLINDRIVET, BLIND
-
4EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
5EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
670R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
770R-24489-00-00 ...O-RING...O-RING
-
890267-489U2-00 RIVET, BLINDRIVET, BLIND
-
9GP7-62159-02-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
1090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
11F1G-62149-00-00 PIPE, VENTILATIONPIPE, VENTILATION
-
1290600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1390464-32801-00 CLAMPCLAMP
-
1490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
1590464-17800-00 CLAMPCLAMP
-
16F1B-U7711-01-00 TANK, FUELTANK, FUEL
-
17F1B-U7773-00-00 RINGRING
-
18F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
199572R-06300-00 NUT, NYLONNUT, NYLON
-
20FN8-6771K-00-00 COVERCOVER
-
2190601-162U5-00 BAND, HOSE 62BAND, HOSE 62
-
22GP7-U7831-01-00 CAP, FUEL FILLER (PURE WHITE)CAP, FUEL FILLER (PURE WHITE)
-
23GP7-U7832-01-00 PACKINGPACKING
-
24GP7-U7833-00-00 SOCKET (PURE WHITE)SOCKET (PURE WHITE)
-
25GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
2690169-049U1-00 TAPPING SCREWTAPPING SCREW
-
27GP7-U7834-00-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
2890267-329UR-00 RIVET, BLINDRIVET, BLIND
-
29GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
30F1B-U7844-01-00 HOSEHOSE
-
3190601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
32F1B-67767-00-00 CHECK VALVECHECK VALVE
-
33FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
3490699-50004-00 HOSEHOSE
-
3590465-11M10-00 CLAMP (ZIP TIES)CLAMP (ZIP TIES)
-
36GP7-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
3790465-11829-00 CLAMPCLAMP
-
3890465-11829-00 CLAMPCLAMP
-
39F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
4090465-11829-00 CLAMPCLAMP
-
41F0D-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
42F1B-U2873-00-00 NUT, SPECIALNUT, SPECIAL
-
4390119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44F1B-6774J-00-00 BRACKET, BANDBRACKET, BAND
-
4590267-489UE-00 RIVET, BLINDRIVET, BLIND
-
469572R-06300-00 NUT, NYLONNUT, NYLON
-
479299R-06200-00 WASHERWASHER
-
48F1B-67743-02-00 BELT, TANK 1BELT, TANK 1
-
4990119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
50F1B-U759B-00-00 MAT 1MAT 1
-
51F1B-U759C-00-00 MAT 2MAT 2
