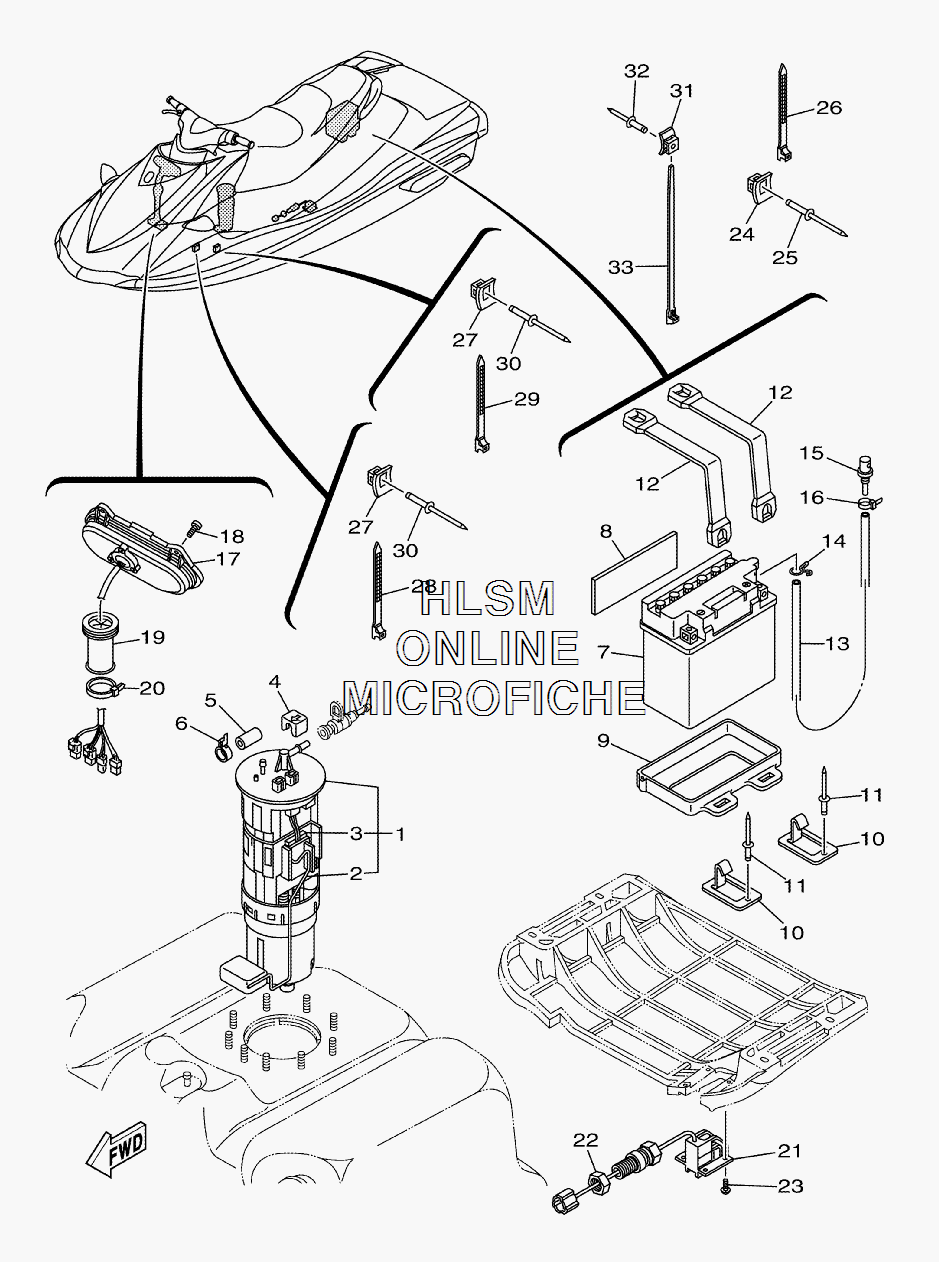

ELECTRICAL 3 для Yamaha VX DELUXE 3-PASS - 2008 года выпуска
-
№АртикулНазвание
-
160E-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
260E-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
460E-24474-00-00 COVERCOVER
-
56D3-24481-00-00 PLUGPLUG
-
66D3-24387-00-00 CLIPCLIP
-
7EU0-82110-09-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
8F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
9F1K-U8211-01-00 CASE, BATTERYCASE, BATTERY
-
10F1K-U5772-02-00 HOOK AHOOK A
-
1190267-489U1-00 RIVET, BLINDRIVET, BLIND
-
12F1K-U821D-00-00 BAND, BATTERY 1BAND, BATTERY 1
-
13F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1490467-089U1-00 CLIPCLIP
-
15GJ3-6215F-00-00 NIPPLENIPPLE
-
1690465-11829-00 CLAMPCLAMP
-
17F1K-6820A-01-00 METER ASSYMETER ASSY
-
1890111-05008-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
19GU2-6822E-01-00 GROMMETGROMMET
-
2090464-32801-00 CLAMPCLAMP
-
21F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
22EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
2390150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
2490600-91736-00 CLAMP COMP.CLAMP COMP.
-
2590267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2690464-32801-00 CLAMPCLAMP
-
2790600-91736-00 CLAMP COMP.CLAMP COMP.
-
2890464-32801-00 CLAMPCLAMP
-
2990601-200U2-00 BANDBAND
-
3090267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3190600-91736-00 CLAMP COMP.CLAMP COMP.
-
3290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3390464-32801-00 CLAMPCLAMP
