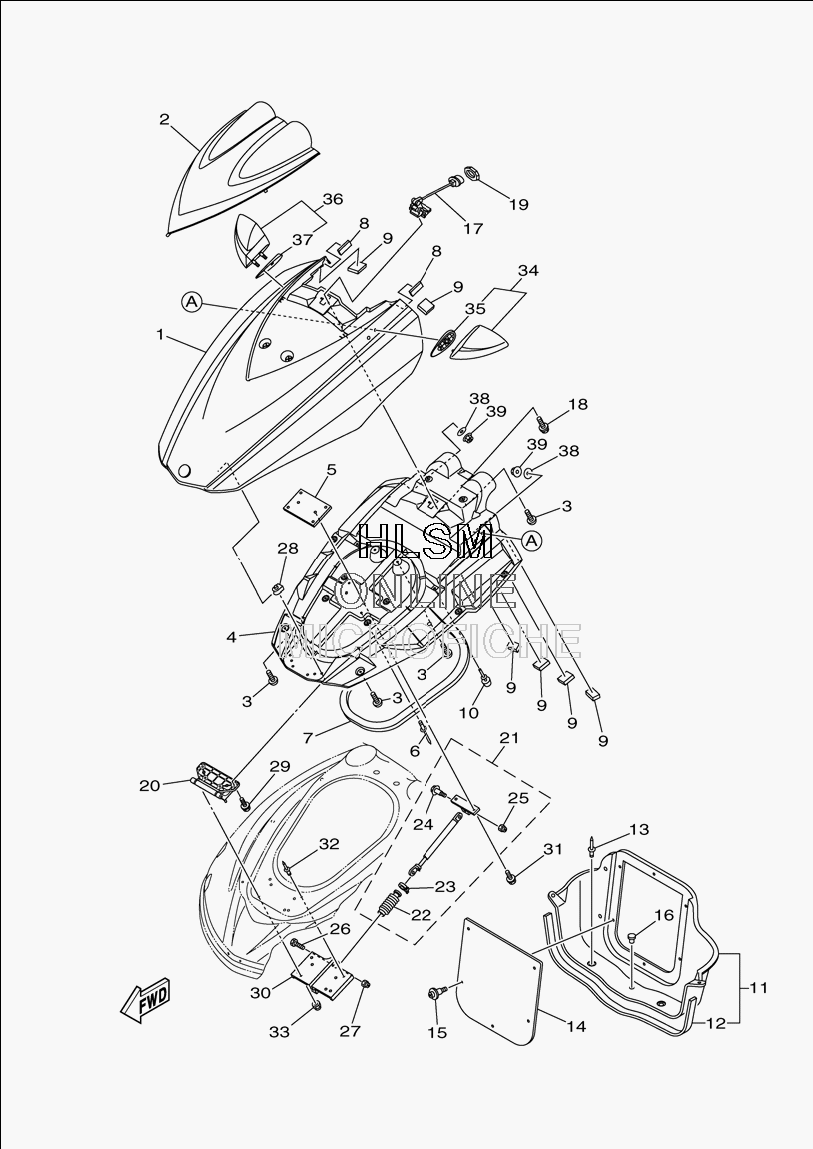

FRONT STORAGE W/ COVER для Yamaha FZR - 2009 года выпуска
-
№АртикулНазвание
-
1F2C-U517B-20-P0 LID, ENGINE ROOMLID, ENGINE ROOM
-
2F2C-U515N-00-P0 VISORVISOR
-
390149-05903-00 SCREWSCREW
-
4F2C-U213B-00-00 COVER,VENTILATOR 1COVER,VENTILATOR 1
-
5F1W-U5148-00-00 PLATE, HATCHPLATE, HATCH
-
690267-48807-00 RIVET, BLINDRIVET, BLIND
-
7F1K-U2663-00-00 PACKING 1PACKING 1
-
8F1K-U266B-00-00 PACKING 3PACKING 3
-
9F2C-U1743-00-00 PACKINGPACKING
-
10F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
11F2C-U475B-00-00 LOCKER,BOWLOCKER,BOW
-
12F2C-U266C-00-00 .PACKING 4.PACKING 4
-
1390267-489UP-00 RIVET, BLINDRIVET, BLIND
-
14F1W-U475F-01-00 PLATE, LOKER BOWPLATE, LOKER BOW
-
1590269-08801-00 RIVETRIVET
-
1690605-502U1-00 PLUG, BLINDPLUG, BLIND
-
17F2C-U517C-01-00 LOCK, LIDLOCK, LID
-
1890119-059U4-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19F2C-U518D-00-00 PACKINGPACKING
-
20F2C-U517D-00-00 HINGE, LIDHINGE, LID
-
21F1W-6514S-00-00 DAMPER ASSYDAMPER ASSY
-
22F1W-6514T-00-00 .COVER, DAMPER.COVER, DAMPER
-
231UA-82591-00-00 .BAND.BAND
-
2490109-06218-00 BOLTBOLT
-
2595720-06300-00 .NUT, SELF-LOCKING.NUT, SELF-LOCKING
-
2690109-06218-00 BOLTBOLT
-
279572R-06300-00 NUT, NYLONNUT, NYLON
-
2890183-06902-00 NUT, SPRINGNUT, SPRING
-
2990119-069UK-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30F1W-U518E-02-00 PLATE, HINGE LIDPLATE, HINGE LID
-
3190119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290267-48020-00 RIVET, BLINDRIVET, BLIND
-
339572R-06300-00 NUT, NYLONNUT, NYLON
-
34F2C-U596B-00-00 MIRROR LHMIRROR LH
-
35F2C-U471E-00-00 .SPACER 1.SPACER 1
-
36F2C-U596C-00-00 MIRROR RHMIRROR RH
-
37F2C-U471F-00-00 .SPACER 2.SPACER 2
-
389299R-08200-00 WASHERWASHER
-
399572R-08300-00 NUT, FLANGENUT, FLANGE
