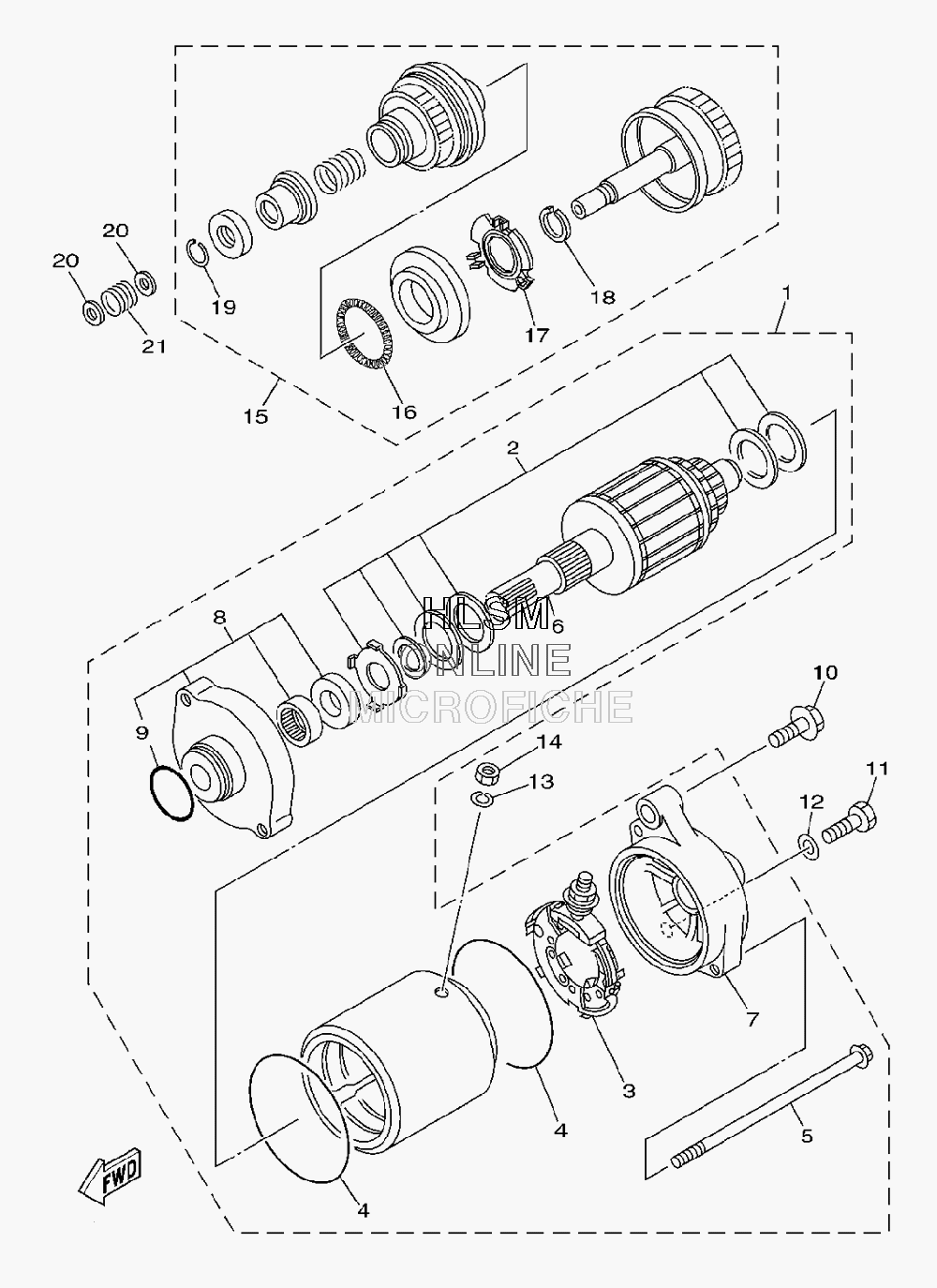

STARTING MOTOR для Yamaha SUPER JET - 2009 года выпуска
-
№АртикулНазвание
-
16M6-81800-10-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
23AJ-81809-00-00 WASHER KITWASHER KIT
-
36M6-81840-10-00 BRUSH HOLDER ASSYBRUSH HOLDER ASSY
-
411H-81844-00-00 GASKETGASKET
-
56M6-81826-00-00 BOLTBOLT
-
66M6-81850-00-00 ARMATURE ASSYARMATURE ASSY
-
76M6-81820-00-00 REAR BRACKET ASSYREAR BRACKET ASSY
-
86M6-81830-00-00 FRONT BRACKET ASSYFRONT BRACKET ASSY
-
926H-81847-00-00 O-RINGO-RING
-
1097513-08540-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1197013-08035-00 BOLTBOLT
-
1292903-08600-00 WASHERWASHER
-
1392990-06100-00 WASHERWASHER
-
1495380-06700-00 NUTNUT
-
156M6-8183E-01-00 IDLE GEAR COMP.IDLE GEAR COMP.
-
166M6-81866-00-00 WEIGHT SPRINGWEIGHT SPRING
-
176M6-81865-00-00 WEIGHT HOLDERWEIGHT HOLDER
-
1893440-25M08-00 CIRCLIPCIRCLIP
-
1993450-18M06-00 CIRCLIPCIRCLIP
-
2092903-06600-00 WASHERWASHER
-
2190501-14M73-00 SPRING, COMPRESSIONSPRING, COMPRESSION
