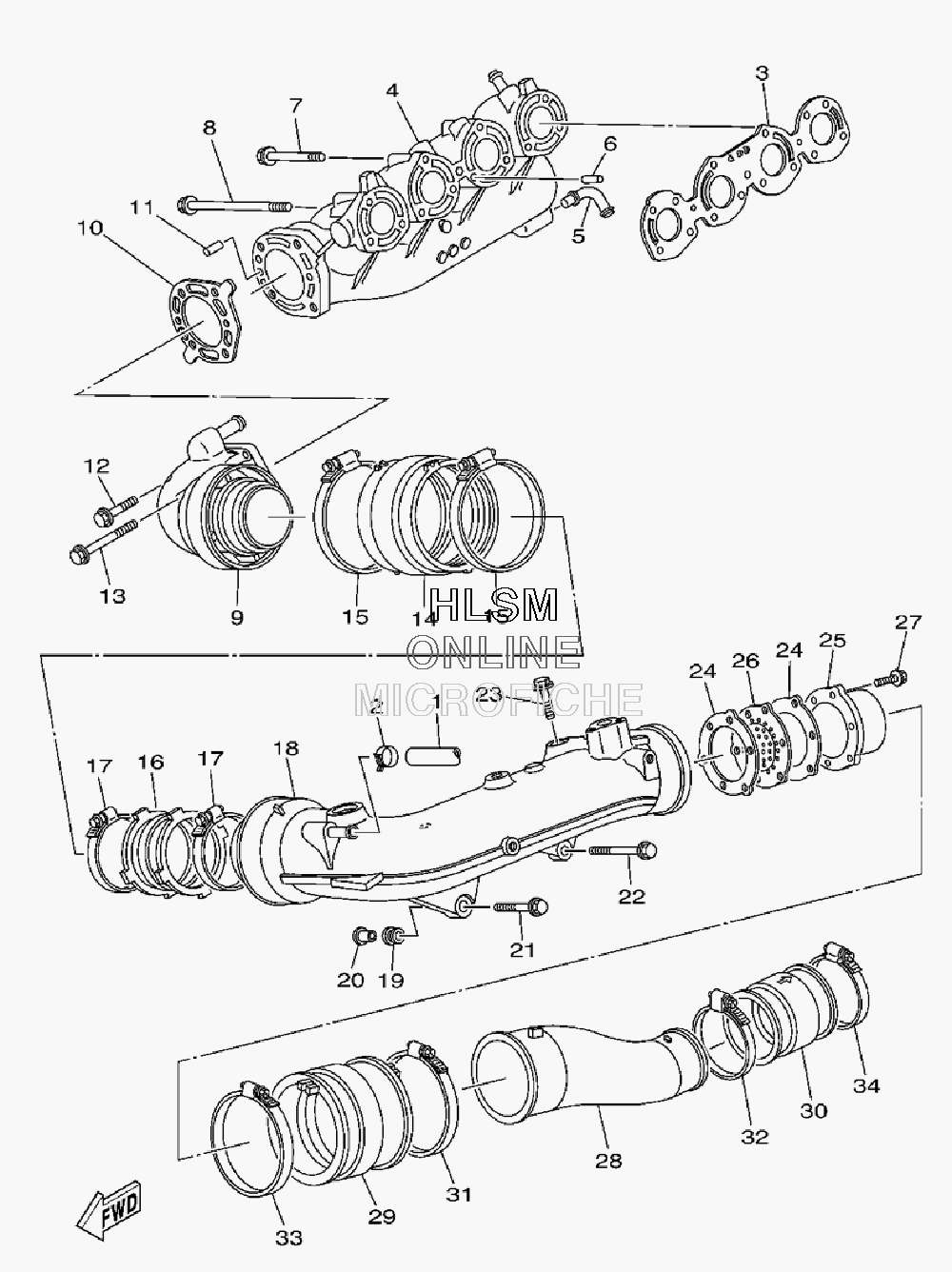

EXHAUST SYSTEM для Yamaha VX 3-PASS - 2009 года выпуска
-
№АртикулНазвание
-
190445-16005-00 HOSE (L870)HOSE (L870)
-
290467-160A0-00 CLIPCLIP
-
36D3-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
46D3-14711-00-94 MUFFLER 1MUFFLER 1
-
560E-11372-10-00 NIPPLE, HOSENIPPLE, HOSE
-
693608-16M16-00 PIN, DOWELPIN, DOWEL
-
790119-08036-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890119-08075-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
96D3-14712-00-94 RING, JOINTRING, JOINT
-
106D3-14739-00-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
1193606-12019-00 PIN, DOWELPIN, DOWEL
-
1290119-08036-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-08031-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146D3-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
1590450-99005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
166D3-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
1790450-90001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
186D3-14721-00-94 MUFFLER 2MUFFLER 2
-
1990480-21M63-00 GROMMETGROMMET
-
2090387-11002-00 COLLARCOLLAR
-
2190119-10011-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2290119-10017-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390119-10013-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2460E-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
2560E-14784-00-94 PIPE, TAILPIPE, TAIL
-
266D3-1469W-00-00 PLATE, SILENCER 6PLATE, SILENCER 6
-
2790105-06790-00 BOLT, FLANGEBOLT, FLANGE
-
286D3-14752-00-94 PIPE, OUTLETPIPE, OUTLET
-
296B6-1475E-00-00 PIPE 2PIPE 2
-
306D3-1475F-00-00 PIPE 3PIPE 3
-
3190450-99004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3290450-94001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3390450-99004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
3490450-94001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
