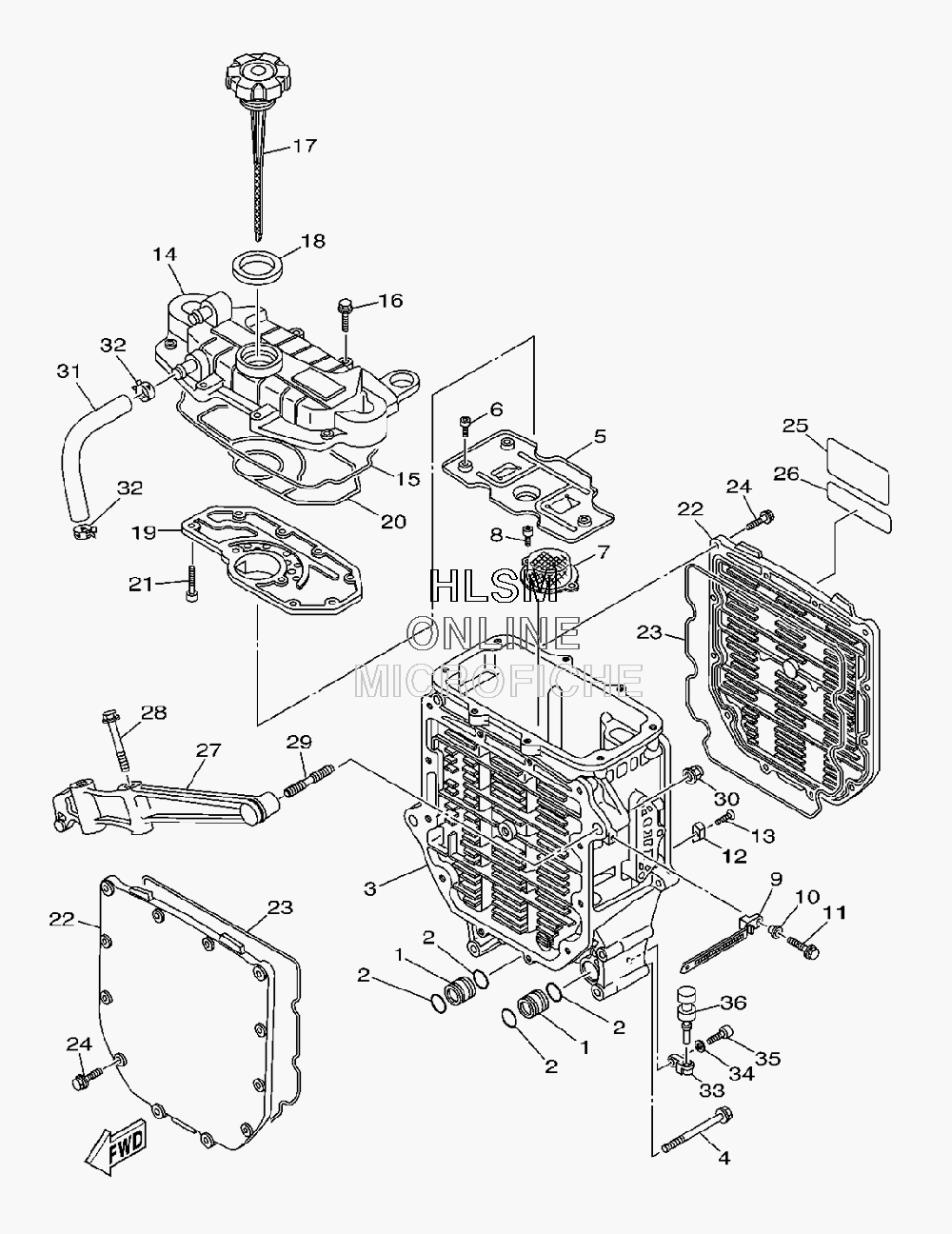

OIL COOLER для Yamaha VX CRUISER 3-PASS - 2009 года выпуска
-
№АртикулНазвание
-
160E-13446-00-00 CONNECTORCONNECTOR
-
293210-18322-00 O-RINGO-RING
-
36D3-13462-00-94 CASE, OIL COOLERCASE, OIL COOLER
-
490119-10020-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
56B6-13317-00-00 PLATE, BAFFLEPLATE, BAFFLE
-
691317-05014-00 BOLTBOLT
-
760E-13421-00-00 STRAINER 2STRAINER 2
-
891317-06014-00 BOLTBOLT
-
990465-12M53-00 CLAMPCLAMP
-
1090387-06M05-00 COLLARCOLLAR
-
1197595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
126E5-11325-00-00 ANODEANODE
-
1398780-04015-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
146D3-13463-00-94 COVER, OIL COOLERCOVER, OIL COOLER
-
1560E-13475-00-00 GASKETGASKET
-
1690105-06036-00 BOLT, FLANGEBOLT, FLANGE
