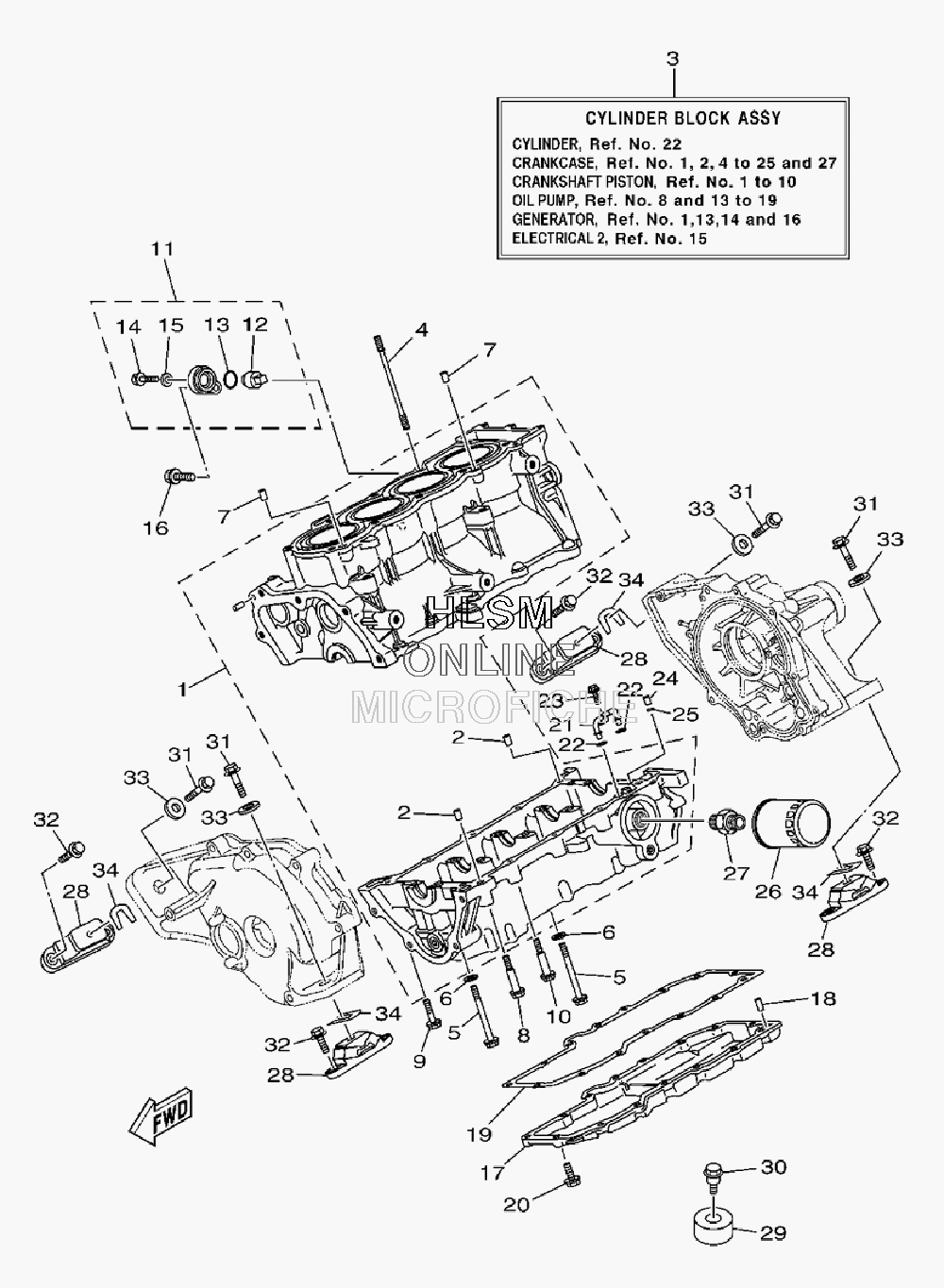

CRANKCASE для Yamaha VX SPORT 3-PASS - 2009 года выпуска
-
№АртикулНазвание
-
16D3-15100-00-94 CRANKCASE ASSYCRANKCASE ASSY
-
299530-10014-00 PIN, DOWELPIN, DOWEL
-
36D3-W009B-10-94 CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
490116-10619-00 BOLT, STUDBOLT, STUD
-
590105-093A5-00 BOLT, FLANGEBOLT, FLANGE
-
690201-096J9-00 WASHER, PLATEWASHER, PLATE
-
799530-10014-00 PIN, DOWELPIN, DOWEL
-
890109-06051-00 BOLTBOLT
-
990105-06033-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-06M17-00 BOLT, FLANGEBOLT, FLANGE
-
1169J-11301-00-00 ANODE COVER ASSYANODE COVER ASSY
-
1267F-11325-01-00 ANODEANODE
-
1367F-11328-00-00 GROMMET, ANODEGROMMET, ANODE
-
1490105-06M07-00 BOLT, FLANGEBOLT, FLANGE
-
1590430-06M03-00 GASKETGASKET
-
1697595-08540-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
176B6-1310A-00-94 PAN, OILPAN, OIL
-
1893603-14M15-00 PIN, DOWELPIN, DOWEL
-
196B6-13557-01-00 GASKETGASKET
-
2097513-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2160E-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2293210-06667-00 O-RINGO-RING
-
2395027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2499530-08012-00 PIN, DOWELPIN, DOWEL
-
2593210-08001-00 O-RINGO-RING
-
265GH-13440-20-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
2790401-20007-00 BOLT, UNIONBOLT, UNION
-
2867X-44517-10-94 MOUNT RUBBERMOUNT RUBBER
-
296D3-44574-00-00 STOPPER, LOWER MOUNT RUBBERSTOPPER, LOWER MOUNT RUBBER
-
3090109-06M92-00 BOLTBOLT
-
3190119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390201-099U3-00 WASHER, PLATEWASHER, PLATE
-
34EU0-U7354-00-01 SHIM (T=0.1)SHIM (T=0.1)
-
34EU0-U7354-00-03 SHIM (T=0.3)SHIM (T=0.3)
-
34EU0-U7354-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
34EU0-U7354-00-10 SHIM (T=1.0)SHIM (T=1.0)
-
34EU0-U7354-00-20 SHIM (T=2.0)SHIM (T=2.0)
