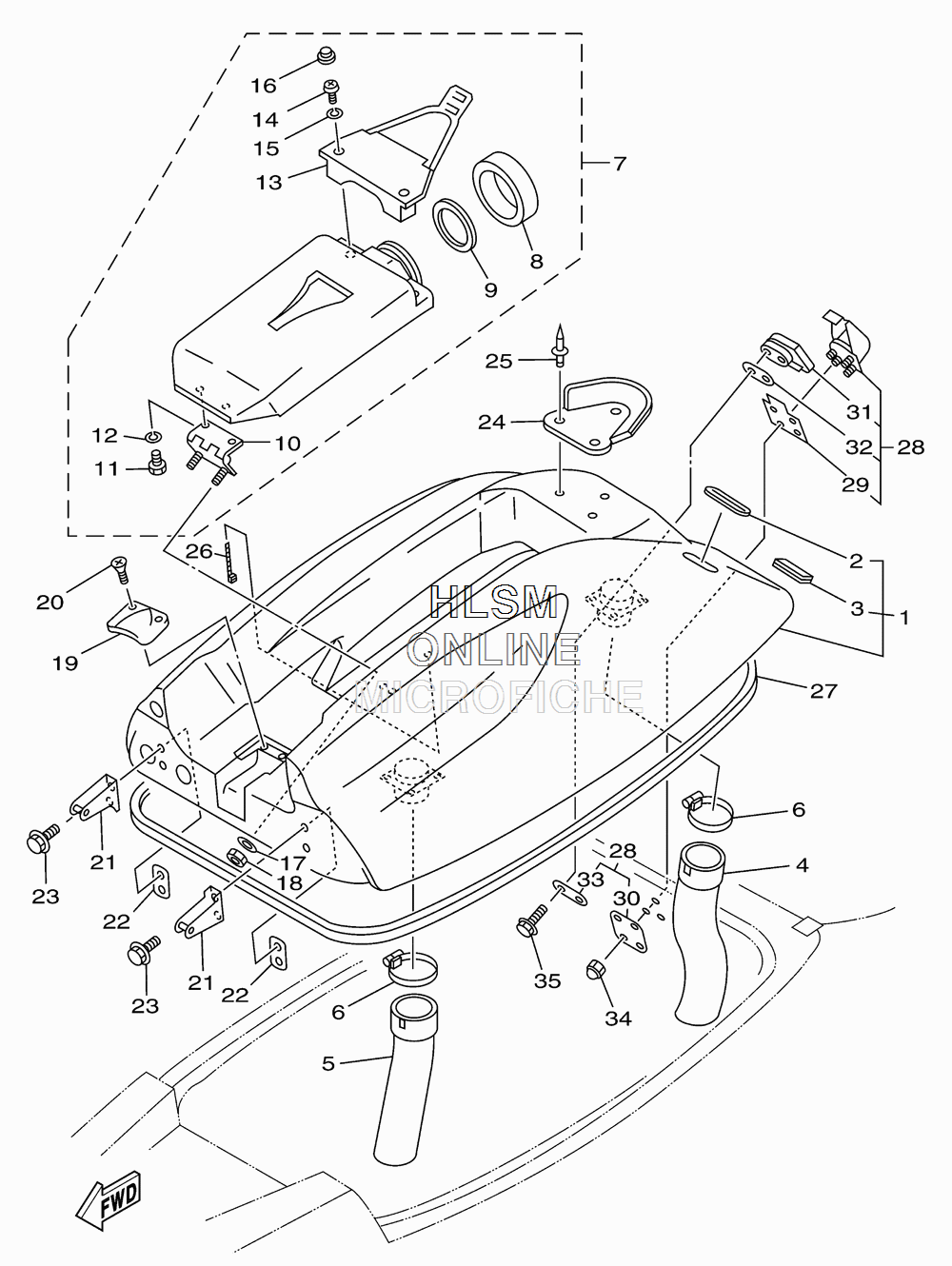

ENGINE HATCH для Yamaha SUPER JET - 2010 года выпуска
-
№АртикулНазвание
-
1GM6-6516A-10-P1 ENGINE HATCH COMP. (DPBSM)ENGINE HATCH COMP. (DPBSM)
-
2FX1-65116-10-00 TRIM,HATCH 2TRIM,HATCH 2
-
3GM6-6516C-00-00 TRIM 1TRIM 1
-
4GM6-6213F-00-00 HOSE,VENTILATOR 1HOSE,VENTILATOR 1
-
5EW2-62137-00-00 HOSE, VENTILATOR 2HOSE, VENTILATOR 2
-
690601-16875-00 BAND, HOSE 68BAND, HOSE 68
-
7FX1-6591A-10-00 CASE,ASSY 1CASE,ASSY 1
-
8EW2-65912-00-00 CAP, CASECAP, CASE
-
9EW2-65913-00-00 PACKING, CASEPACKING, CASE
-
10FX1-6517D-00-00 HINGE, LIDHINGE, LID
-
1197090-06014-00 BOLTBOLT
-
1292990-06100-00 WASHERWASHER
-
13FX1-6591K-00-00 BAND,CASEBAND,CASE
-
1492580-06016-00 SCREW,PAN HEADSCREW,PAN HEAD
-
1592990-06100-00 WASHERWASHER
-
16FX1-6514F-00-00 CAPCAP
-
1792990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1895720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
19A00-62858-02-00 PLATE, HATCH (FL1)PLATE, HATCH (FL1)
-
2097780-50316-00 SCREW, OVAL HEAD TAPPINGSCREW, OVAL HEAD TAPPING
-
21GM6-65136-00-00 STOPPER HATCH 2STOPPER HATCH 2
-
22EW2-65137-00-00 PLATE, STOPPER HATCH 2PLATE, STOPPER HATCH 2
-
2390119-06900-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
24FX1-6514B-00-00 DAMPER, POLEDAMPER, POLE
-
2590267-48938-00 RIVET, BLINDRIVET, BLIND
-
2690464-20258-00 CLAMPCLAMP
-
27GM6-62664-01-00 PACKINGPACKING
-
28EW2-62840-10-00 HATCH LOCK ASSYHATCH LOCK ASSY
-
29EW2-62845-10-00 PACKING, HATCH LOCKPACKING, HATCH LOCK
-
30EW2-62846-00-00 PLATE, HATCH LOCKPLATE, HATCH LOCK
-
31EW2-62843-00-00 HOOK, HATCH LOCKHOOK, HATCH LOCK
-
32EW2-62847-00-00 PACKING, HOOKPACKING, HOOK
-
33EW2-62848-00-00 PLATE, HOOKPLATE, HOOK
-
3495720-05300-00 NUT, FLANGENUT, FLANGE
-
3590119-05923-00 BOLT, WITH WASHERBOLT, WITH WASHER
