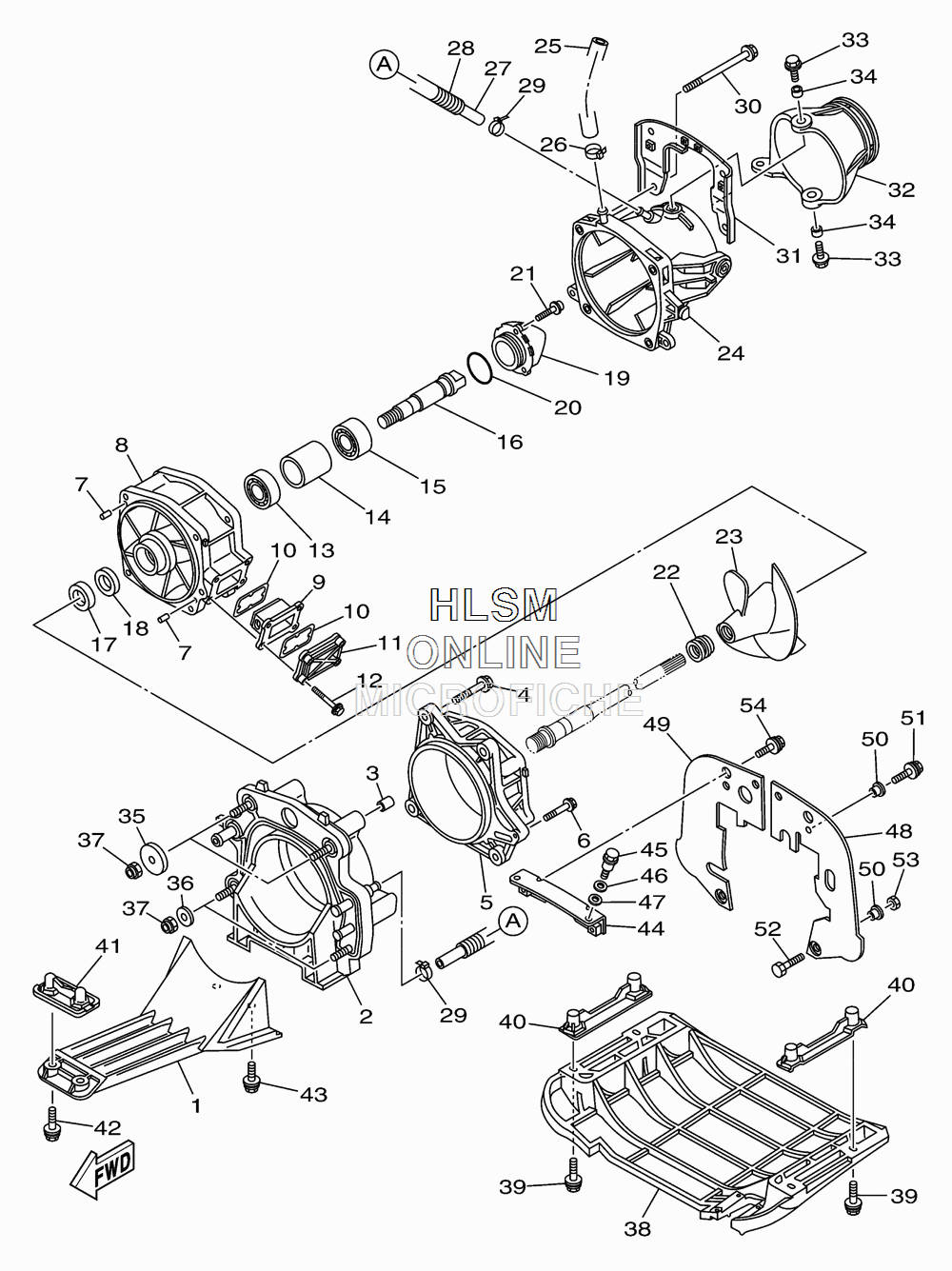

PROPULSION SYSTEM - EXTERNAL для Yamaha VX DELUXE 3-PASS - 2010 года выпуска
-
№АртикулНазвание
-
16D3-R1333-01-94 SCREEN, INTAKESCREEN, INTAKE
-
26D3-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
399590-14016-00 PIN, DOWELPIN, DOWEL
-
490119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
566V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
690119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
793606-12019-00 PIN, DOWELPIN, DOWEL
-
86B6-51315-01-94 DUCT, IMPELLERDUCT, IMPELLER
-
966V-46882-00-00 FILTERFILTER
-
1066V-42414-00-00 O-RINGO-RING
-
1166V-45214-00-94 COVER, WATER INLET 1COVER, WATER INLET 1
-
1290119-06897-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1393306-27211-00 BEARINGBEARING
-
1465V-45538-00-00 SPACER 1SPACER 1
-
1593306-205U0-00 BEARINGBEARING
-
166D3-45514-00-00 SHAFT, DRIVE 4SHAFT, DRIVE 4
-
1793101-21001-00 OIL SEALOIL SEAL
-
1893101-21002-00 OIL SEALOIL SEAL
-
196B6-51326-10-94 CAPCAP
-
2093210-464A3-00 O-RINGO-RING
-
2190110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
226D3-R1319-00-00 CAP, IMPELLERCAP, IMPELLER
-
236D3-R1321-02-00 IMPELLERIMPELLER
-
246BU-R1318-00-00 NOZZLENOZZLE
-
2590445-16006-00 HOSE (L260)HOSE (L260)
-
2690601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
2790445-14008-00 HOSE (L355)HOSE (L355)
-
2890446-20MF5-00 HOSE (L320)HOSE (L320)
-
2990465-11829-00 CLAMPCLAMP
-
3090119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
316D3-R1341-00-00 BRACKET 1BRACKET 1
-
326BU-R1313-00-94 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3390119-08840-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3490387-08M06-00 COLLARCOLLAR
-
35F1S-U725E-01-00 WASHERWASHER
-
3690201-10801-00 WASHER, PLATEWASHER, PLATE
-
379572R-10300-00 NUT, NYLONNUT, NYLON
-
38F2N-U273B-00-00 PLATE 2PLATE 2
-
3990119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
40F1G-U8572-02-00 BRACKET 2BRACKET 2
-
41F1K-U8577-01-00 BRACKET, 3BRACKET, 3
-
4290119-06895-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4390119-10808-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44F1K-U7557-01-00 BRACKETBRACKET
-
4590109-08041-00 BOLTBOLT
-
4692990-12200-00 WASHER, PLAINWASHER, PLAIN
-
4790430-12002-00 GASKETGASKET
-
48F1K-U757E-01-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
49F1K-U757F-01-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
5090387-06080-00 COLLARCOLLAR
-
5190119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5290101-069U0-00 BOLTBOLT
-
539572R-06300-00 NUT, NYLONNUT, NYLON
-
5490119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
