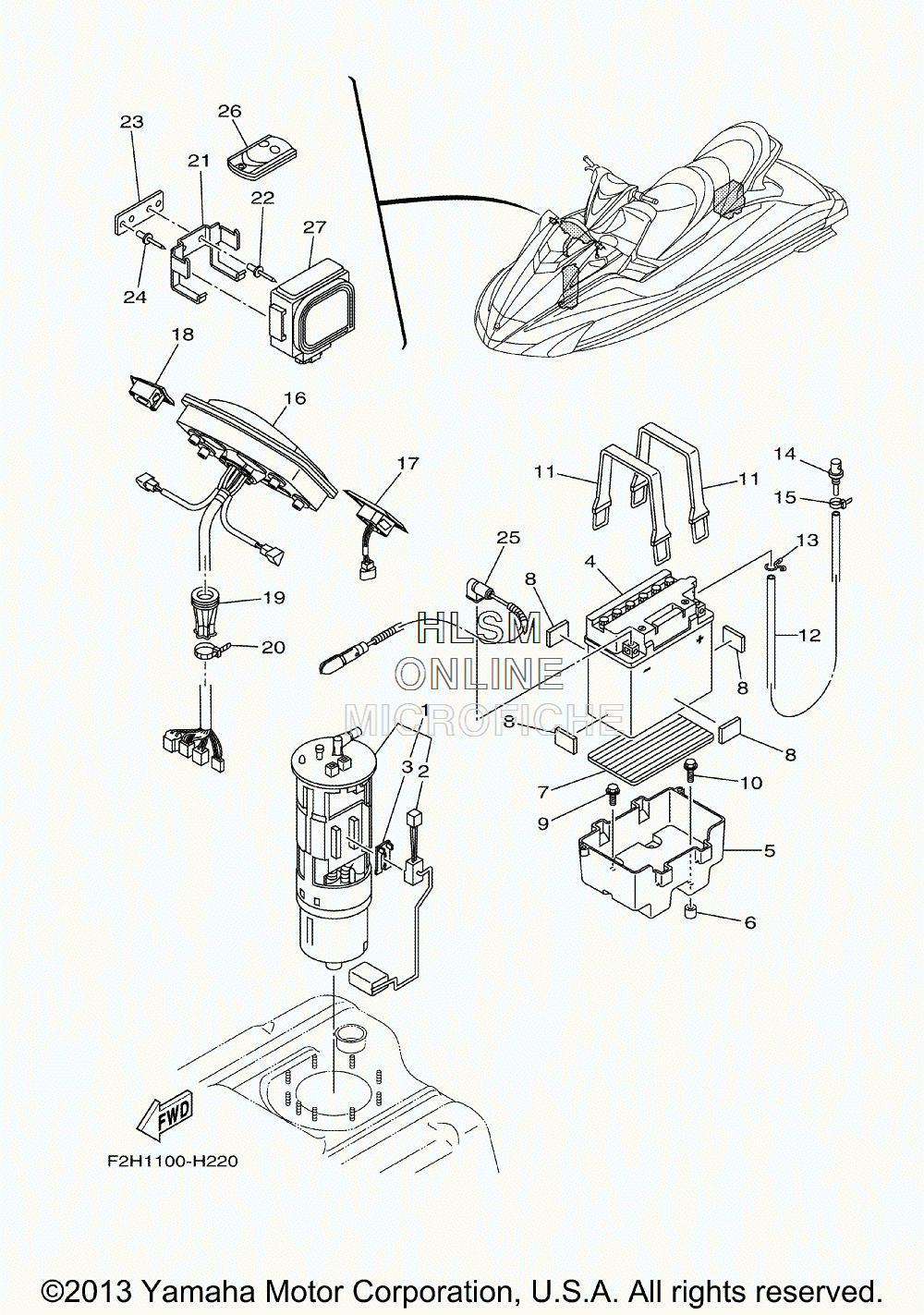

ELECTRICAL 3 для Yamaha FX HWAVERUNNER FX HO [FY1800K] - 2011 года выпуска
-
№АртикулНазвание
-
16S5-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
26S5-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-82110-09-00 BATTERY ASSY (YB16CL-B) (YUASA)BATTERY ASSY (YB16CL-B) (YUASA)
-
5GP7-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
6F1B-6821G-01-00 PLATE, BATTERYPLATE, BATTERY
-
7F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
8EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
990119-069US-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11EU0-U821D-00-00 BAND,BATTERY 1BAND,BATTERY 1
-
12F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1390467-089U1-00 CLIPCLIP
-
14GJ3-6215F-00-00 NIPPLENIPPLE
-
1590465-11829-00 CLAMPCLAMP
-
16F1W-6820A-12-00 METER ASSYMETER ASSY
-
17F1X-68090-00-00 SWITCH ASSY.SWITCH ASSY.
-
18F1Y-68322-00-00 PANELPANEL
-
19F1X-U822E-00-00 GROMMETGROMMET
-
2090464-32801-00 CLAMPCLAMP
-
21F1W-U826C-00-00 BRACKETBRACKET
-
2290267-489U1-00 RIVET,BLINDRIVET,BLIND
-
23F1W-U8376-00-00 PLATEPLATE
-
2490267-489U1-00 RIVET,BLINDRIVET,BLIND
-
256S5-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
266B6-86261-00-00 TRANSMITTER COMPTRANSMITTER COMP
-
276B6-86265-00-00 RECIVER COMPRECIVER COMP
