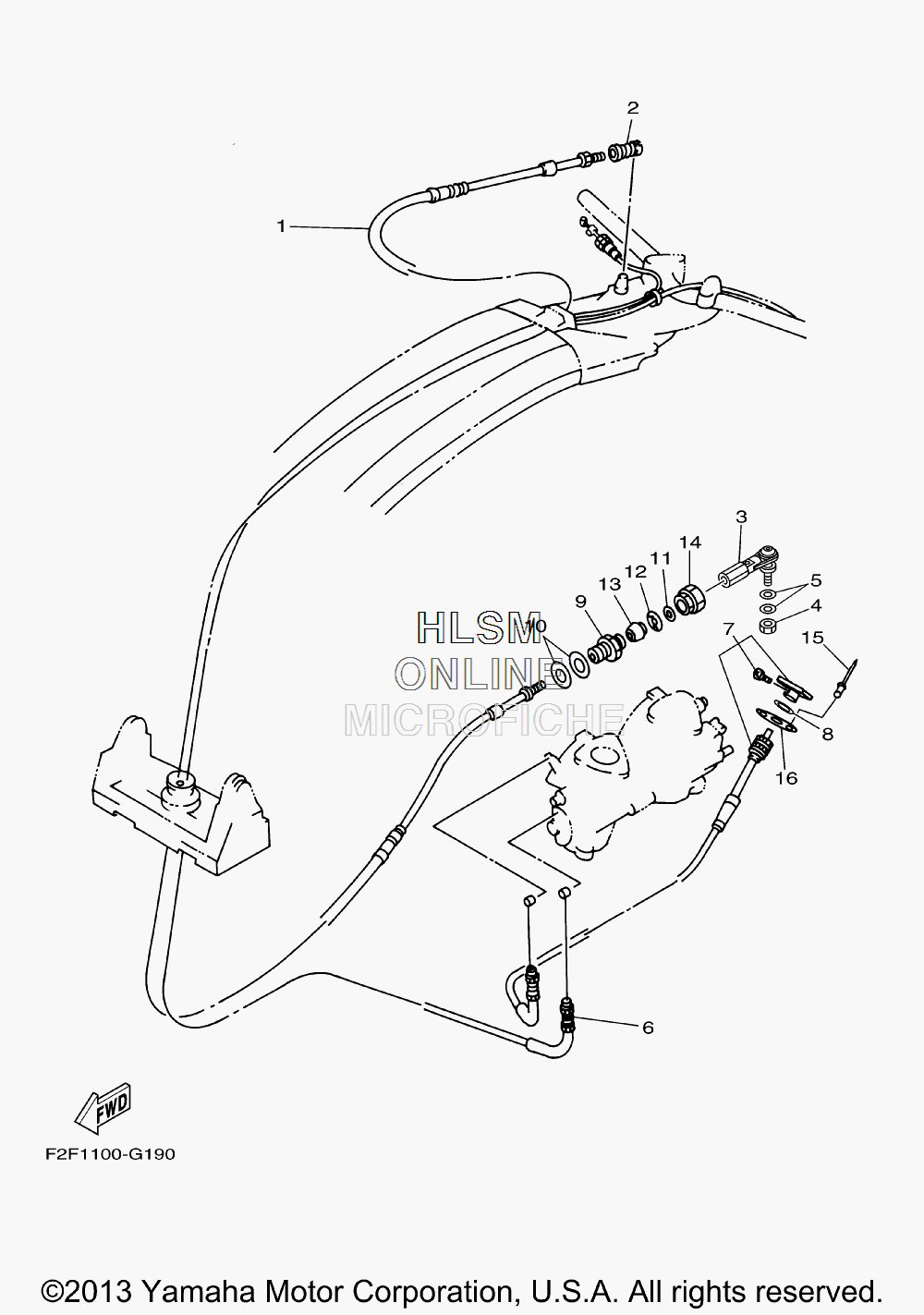

CONTROL CABLES для Yamaha SUPER JET [SJ700BK] - 2011 года выпуска
-
№АртикулНазвание
-
1F2F-61481-00-00 CABLE, STEERINGCABLE, STEERING
-
2EU0-61461-30-00 SHAFT, JOINT BALLSHAFT, JOINT BALL
-
3F2F-61461-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
495380-06700-00 NUTNUT
-
590201-06906-00 WASHER, PLATEWASHER, PLATE
-
6GM6-67252-00-00 CABLE, THROTTLECABLE, THROTTLE
-
7GM6-67242-00-00 CABLE, CHOKECABLE, CHOKE
-
890201-11008-00 WASHER, PLATEWASHER, PLATE
-
9EU0-61436-00-00 BODY,CABLE CONNECTORBODY,CABLE CONNECTOR
-
10EU0-61438-00-00 PACKING (C)PACKING (C)
-
11EU0-61446-00-00 WASHER 30WASHER 30
-
12EU0-61486-00-00 STOPPERSTOPPER
-
13EU0-61435-00-00 SEAL, PIPE 30SEAL, PIPE 30
-
14EU0-62694-00-00 CAPCAP
-
1590267-40945-00 RIVET, BLINDRIVET, BLIND
-
1690209-12920-00 WASHER SPEC'L SHAPEWASHER SPEC'L SHAPE
