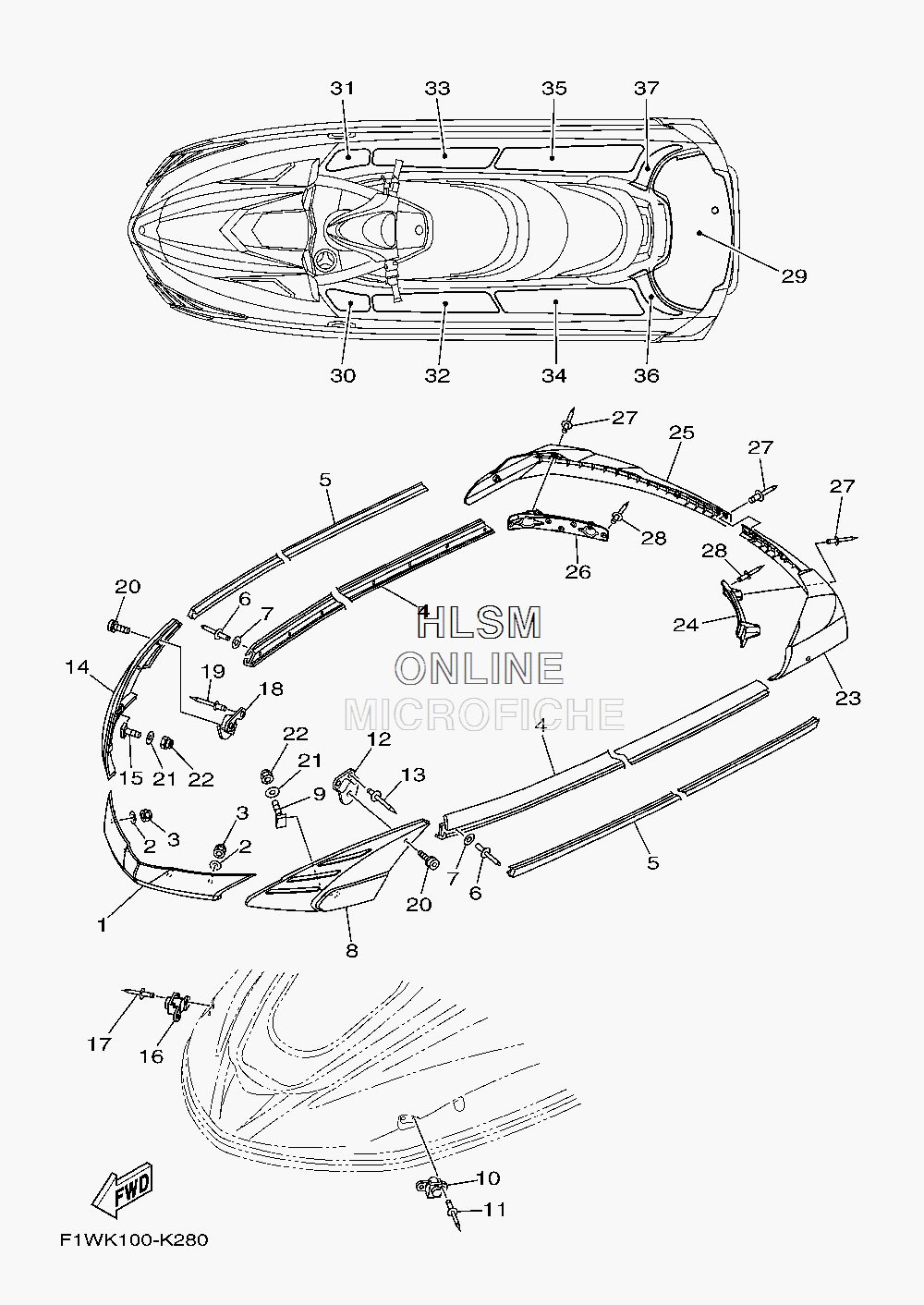

HULL - GUNWALE - MAT для Yamaha WAVERUNNER FX SUPER HO [FX1800K] - 2011 года выпуска
-
№АртикулНазвание
-
1F1W-U2501-11-00 BOW GUNWALE COMP. (GRAY)BOW GUNWALE COMP. (GRAY)
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, NYLONNUT, NYLON
-
4F1B-U2512-00-00 GUNWALE, SIDEGUNWALE, SIDE
-
5F1B-U2519-10-00 INNER,GUNWALE (YAMAHA BLACK)INNER,GUNWALE (YAMAHA BLACK)
-
690267-489U8-00 RIVET, BLINDRIVET, BLIND
-
79299R-05200-00 WASHERWASHER
-
8F1W-U252E-10-00 JOINT, GUNWALE LH (GRAY)JOINT, GUNWALE LH (GRAY)
-
9F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
10F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
12F1W-U4949-00-00 BRACKETBRACKET
-
1390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
14F1W-U252F-10-00 JOINT, GUNWALE RH (GRAY)JOINT, GUNWALE RH (GRAY)
-
15F1W-U491K-00-00 BOLT, SPECIALBOLT, SPECIAL
-
16F1W-U250B-00-00 GROMMET ASSYGROMMET ASSY
-
1790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
18F1W-U4949-00-00 BRACKETBRACKET
-
1990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2090111-06114-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
219299R-06200-00 WASHERWASHER
-
229572R-06300-00 NUT, NYLONNUT, NYLON
-
23F1W-U251D-11-00 GUNWALE, STERN 1 (GRAY)GUNWALE, STERN 1 (GRAY)
-
24F1W-U251L-01-00 BRACKET, GUNWALE 1BRACKET, GUNWALE 1
-
25F1W-U251E-11-00 GUNWALE, STERN 2 (GRAY)GUNWALE, STERN 2 (GRAY)
-
26F1W-U251M-01-00 BRACKET, GUNWALE 2BRACKET, GUNWALE 2
-
2790267-48825-00 RIVET, BLINDRIVET, BLIND
-
2890267-489U8-00 RIVET, BLINDRIVET, BLIND
-
29F1W-U3581-00-00 MAT, UPPER (DARK GREY)MAT, UPPER (DARK GREY)
-
30F1W-U351H-00-00 MAT, STEP 1 (DARK GREY)MAT, STEP 1 (DARK GREY)
-
31F1W-U351J-00-00 MAT, STEP 2 (DARK GREY)MAT, STEP 2 (DARK GREY)
-
32F1W-U351K-00-00 MAT, STEP 3 (DARK GREY)MAT, STEP 3 (DARK GREY)
-
33F1W-U351M-00-00 MAT, STEP 4 (DARK GREY)MAT, STEP 4 (DARK GREY)
-
34F1W-U351N-00-00 MAT, STEP 5 (DARK GREY)MAT, STEP 5 (DARK GREY)
-
35F1W-U351P-00-00 MAT, STEP 6 (DARK GREY)MAT, STEP 6 (DARK GREY)
-
36F1W-U351R-00-00 MAT, STEP 7 (DARK GREY)MAT, STEP 7 (DARK GREY)
-
37F1W-U351S-00-00 MAT, STEP 8 (DARK GREY)MAT, STEP 8 (DARK GREY)
