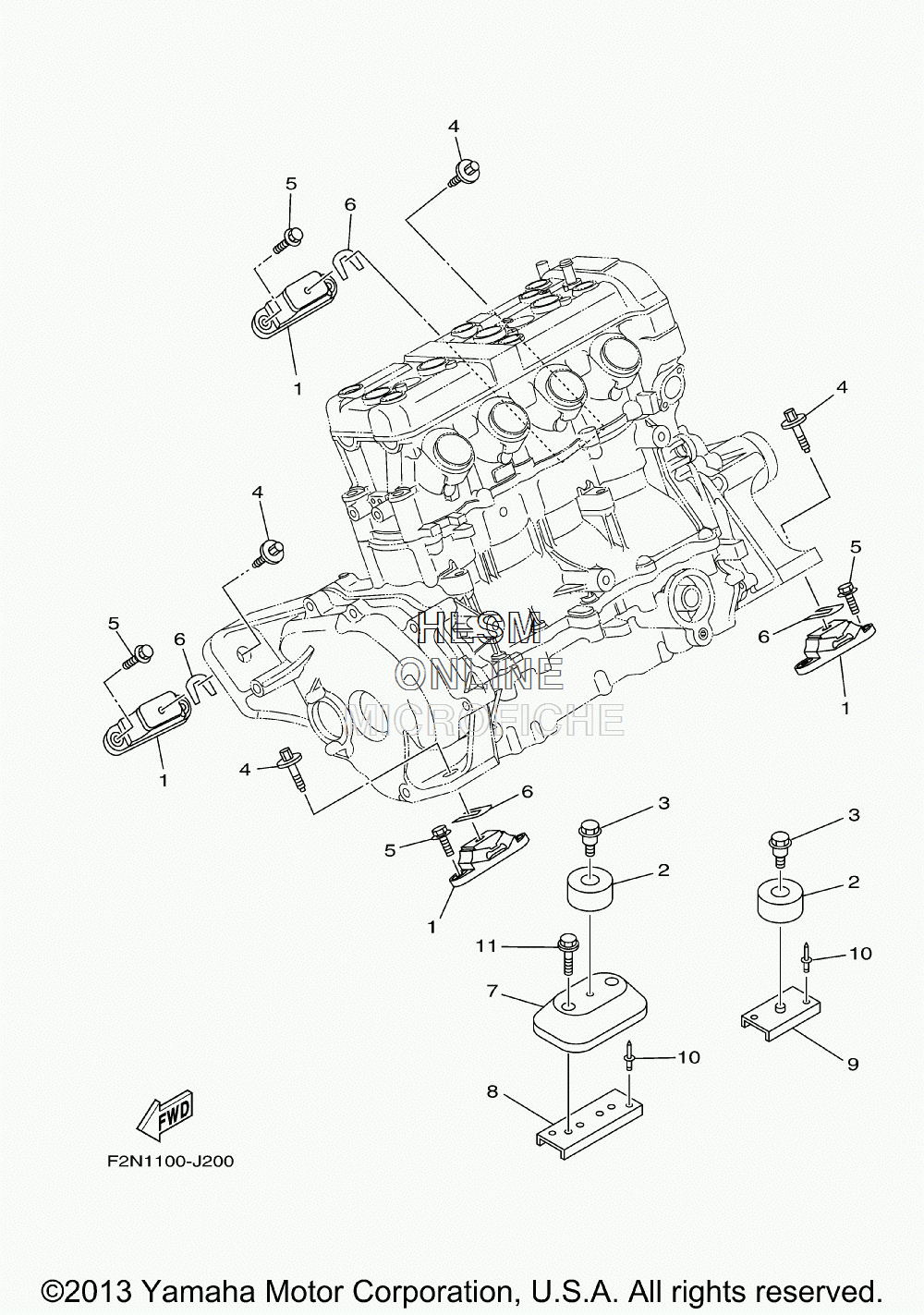

ENGINE MOUNTS для Yamaha WAVERUNNER VX SPORT 3-PASS [VX1100CK] - 2011 года выпуска
-
№АртикулНазвание
-
167X-44517-10-94 MOUNT RUBBERMOUNT RUBBER
-
26D3-44574-00-00 STOPPER, LOWER MOUNT RUBBERSTOPPER, LOWER MOUNT RUBBER
-
390109-06M92-00 BOLTBOLT
-
490119-08860-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
6EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
6EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
6EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
6EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
-
7F2N-U721B-00-00 SPACER,ENGINE MOUNTSPACER,ENGINE MOUNT
-
8F2N-U732B-10-00 PLATEPLATE
-
9F2N-U732B-01-00 PLATEPLATE
-
1090267-489U2-00 RIVET, BLINDRIVET, BLIND
-
1190119-06891-00 BOLT, WITH WASHERBOLT, WITH WASHER
