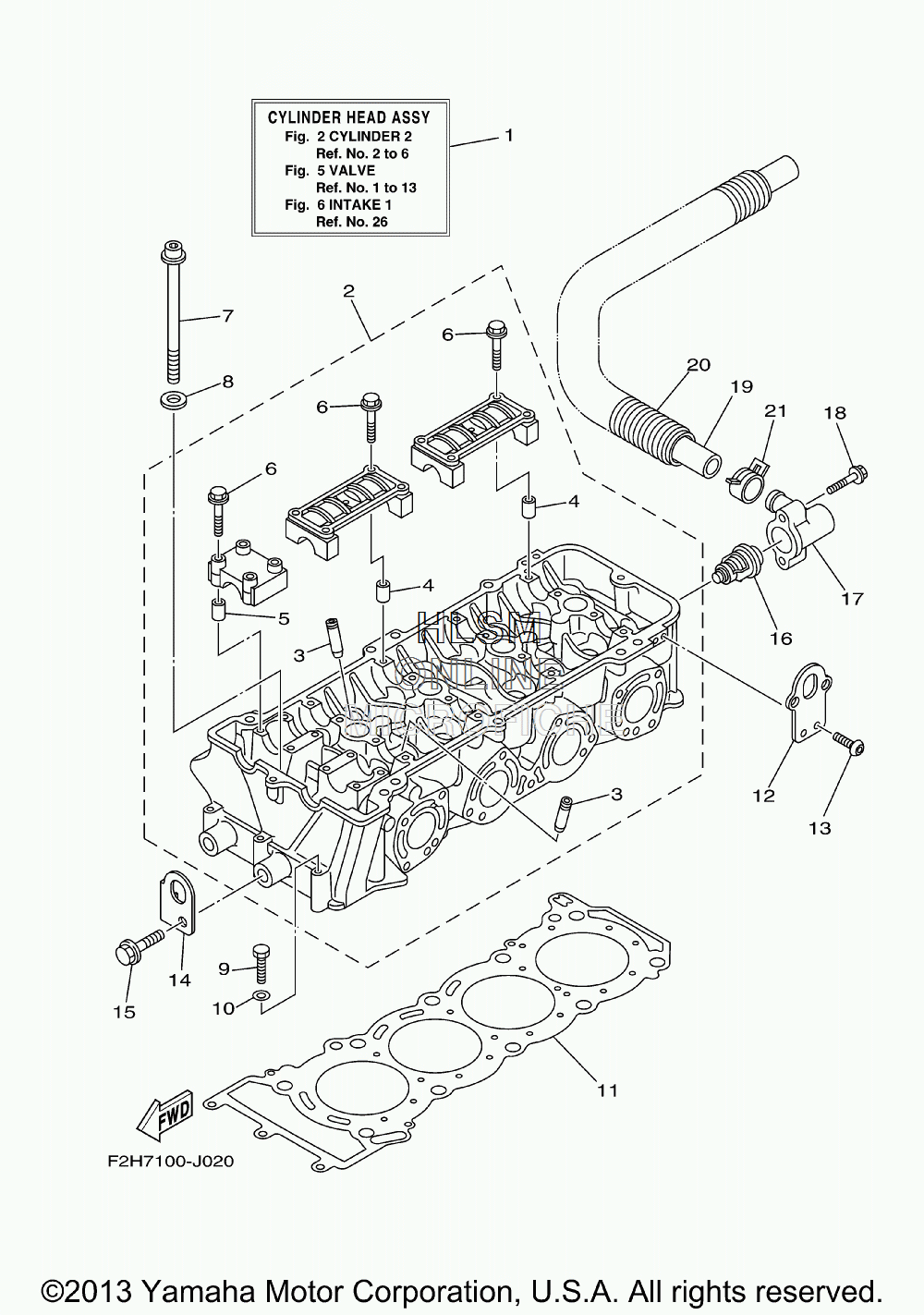

CYLINDER HEAD для Yamaha WAVERUNNER VXR [VX1800AK] - 2011 года выпуска
-
№АртикулНазвание
-
16BH-W009A-00-94 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
26BH-11102-00-94 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
36S5-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
491809-16001-00 ...PIN, DOWEL...PIN, DOWEL
-
591809-16001-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-07009-00 ...BOLT, FLANGE...BOLT, FLANGE
-
76S5-12228-01-00 BOLTBOLT
-
890201-12039-00 WASHER, PLATEWASHER, PLATE
-
997013-06055-00 BOLTBOLT
-
1092903-06600-00 WASHER, PLATEWASHER, PLATE
-
116BH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
126BH-1111E-00-00 HANGER, ENGINE 2HANGER, ENGINE 2
-
1392014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
146BH-11119-00-00 HANGER, ENGINEHANGER, ENGINE
-
1597513-10525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
166D3-12411-00-00 THERMOSTATTHERMOSTAT
-
176BH-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1890105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
196S5-12578-00-00 HOSE 3HOSE 3
-
2090447-28008-00 TUBE (L850)TUBE (L850)
-
2190467-240A0-00 CLIPCLIP
