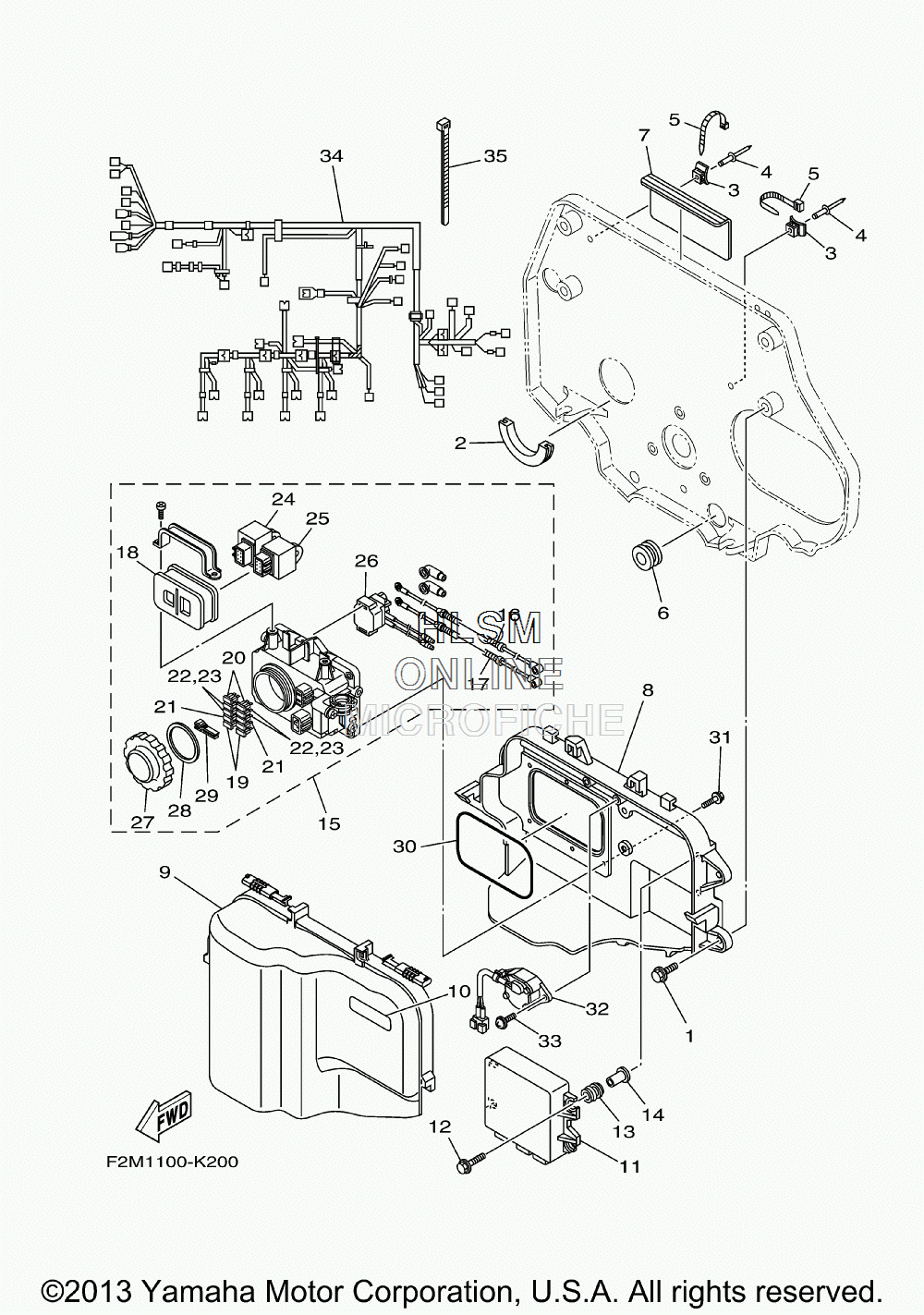

ELECTRICAL 1 для Yamaha WAVERUNNER VXS [VX1800K] - 2011 года выпуска
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2F1S-U828H-01-00 TRIM, 1TRIM, 1
-
3F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
490267-48802-00 RIVET, BLINDRIVET, BLIND
-
590464-32801-00 CLAMPCLAMP
-
690480-38800-00 GROMMETGROMMET
-
7F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
86BH-81845-00-00 PLATEPLATE
-
96S5-81942-10-00 COVERCOVER
-
1060E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
116CN-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
1290119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
136A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
1490387-06119-00 COLLARCOLLAR
-
156BH-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
166S5-82115-00-00 ...WIRE, PLUS LEAD...WIRE, PLUS LEAD
-
176S5-82117-00-00 ...WIRE, LEAD...WIRE, LEAD
-
186D3-82157-00-00 ...DAMPER...DAMPER
-
1967F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
2067F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
2167F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
2267F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
2367F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
2460E-81950-00-00 ...RELAY ASSY...RELAY ASSY
-
2568V-81950-00-00 ...RELAY ASSY...RELAY ASSY
-
266B6-81940-00-00 ...STARTER RELAY ASSY...STARTER RELAY ASSY
-
2766V-8132W-00-00 ...CAP...CAP
-
2866V-81844-00-00 ...GASKET...GASKET
-
2967F-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
306BH-81847-00-00 O-RINGO-RING
-
3190119-06091-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
326S5-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
3397780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
346CN-8259L-00-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
3590465-14M66-00 CLAMPCLAMP
