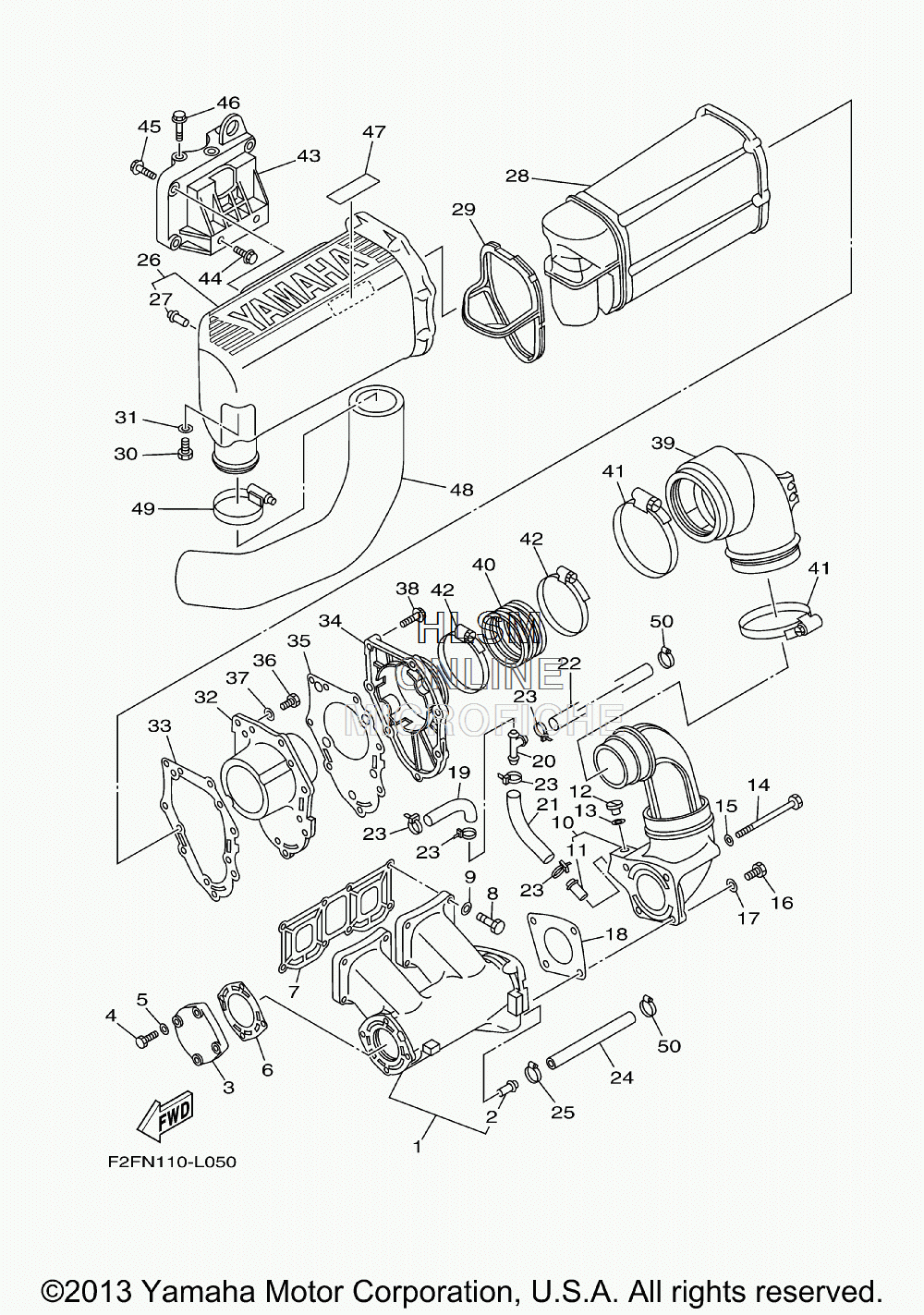

EXHAUST SYSTEM для Yamaha SUPER JET [SJ700BL] - 2012 года выпуска
-
№АртикулНазвание
-
161X-14711-01-94 MUFFLER 1MUFFLER 1
-
26K8-51129-00-00 ...NIPPLE...NIPPLE
-
36M6-14718-01-8S PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
497013-06025-00 BOLTBOLT
-
592903-06600-00 WASHER, PLATEWASHER, PLATE
-
66M6-14739-A2-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
761X-14613-A1-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
897013-08035-00 BOLTBOLT
-
992903-08600-00 WASHER, PLATEWASHER, PLATE
-
1061L-14712-00-94 RING, JOINTRING, JOINT
-
116K8-51129-00-00 ...NIPPLE...NIPPLE
-
1290340-08M04-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1390430-08020-00 GASKETGASKET
-
1497013-08090-00 BOLTBOLT
-
1592903-08600-00 WASHER, PLATEWASHER, PLATE
-
1697013-08025-00 BOLTBOLT
-
1792903-08600-00 WASHER, PLATEWASHER, PLATE
-
186R7-14749-A1-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
1990445-14M29-00 HOSE (L125)HOSE (L125)
-
206E5-24378-00-00 PIPE, JOINT 3PIPE, JOINT 3
-
2190445-14M29-00 HOSE (L125)HOSE (L125)
-
2290445-14M33-00 HOSE (L1150)HOSE (L1150)
-
2390465-11M10-00 CLAMPCLAMP
-
2490445-14M06-00 HOSE (L630)HOSE (L630)
-
2590450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
266R7-14721-00-8S MUFFLER 2MUFFLER 2
-
276R7-14485-00-00 ...PIPE, JOINT...PIPE, JOINT
-
286R7-14753-00-8S SILENCER, EXHAUSTSILENCER, EXHAUST
-
296R7-15761-00-00 SEAL, RUBBER 1SEAL, RUBBER 1
-
3097013-06020-00 BOLTBOLT
-
3192903-06600-00 WASHER, PLATEWASHER, PLATE
-
326R7-14785-00-8S DIFFUSERDIFFUSER
-
336R7-14755-A0-00 GASKET, SILENCERGASKET, SILENCER
-
346R7-41113-00-8S OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
356R7-41114-A0-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
3697095-06016-00 BOLTBOLT
-
3792995-06600-00 WASHERWASHER
-
3890119-06MA1-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3961L-14615-A0-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
4061L-14625-A0-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
4190460-90M11-00 CLAMP, HOSECLAMP, HOSE
-
4290460-70M16-00 CLAMP, HOSECLAMP, HOSE
-
436M6-14771-00-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
4490105-10M49-00 BOLT WASHER BASEDBOLT WASHER BASED
-
4590105-10M88-00 BOLT WASHER BASEDBOLT WASHER BASED
-
4690119-10M17-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
47F2F-6413S-00-00 LABEL, COMPETITIONLABEL, COMPETITION
-
4864V-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
4990460-64M15-00 CLAMP, HOSECLAMP, HOSE
-
5090450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
