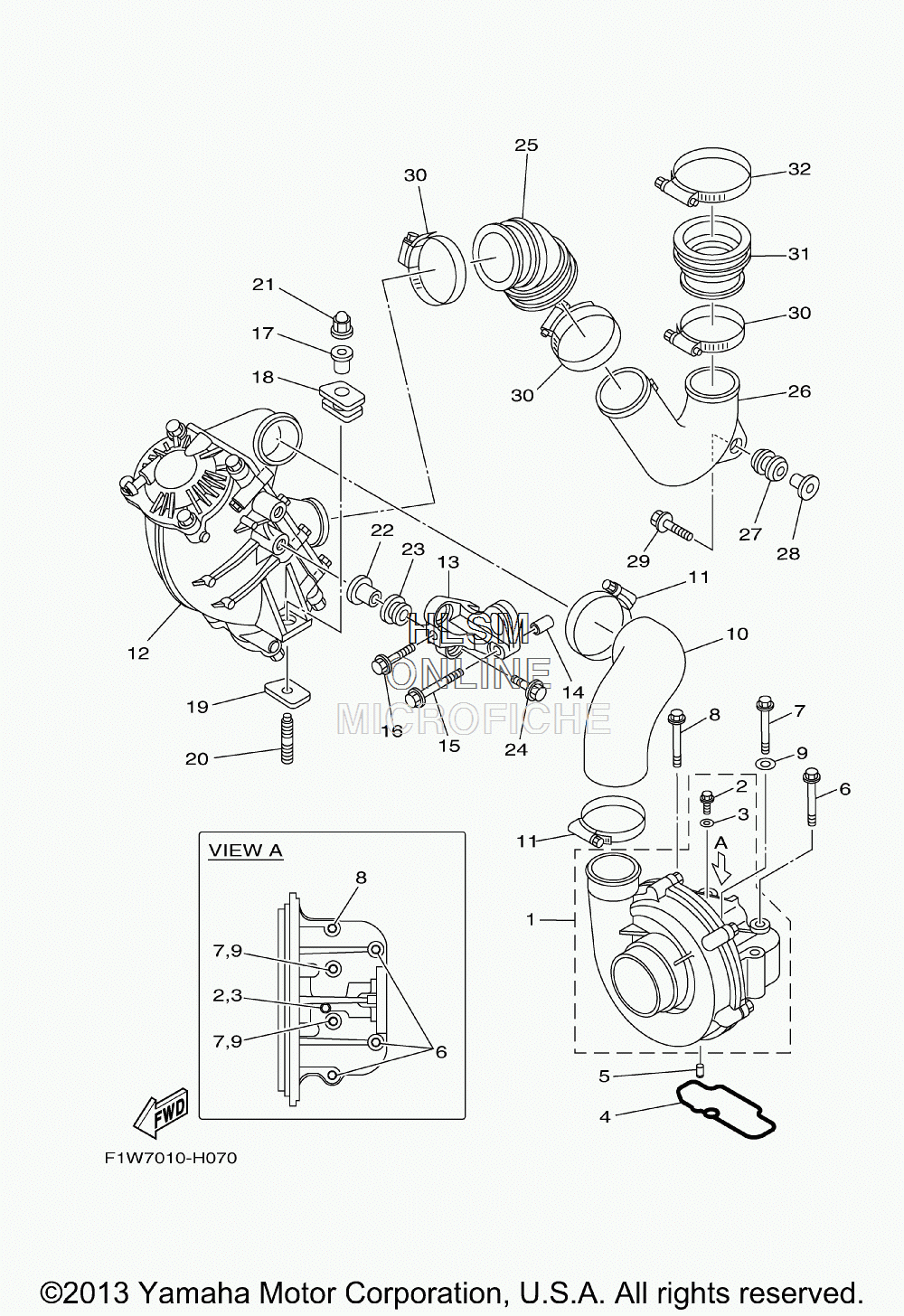

SUPER CHARGER ASSY для Yamaha WAVERUNNER FZR [GX1800L] - 2012 года выпуска
-
№АртикулНазвание
-
16S5-141A0-04-00 SUPER CHARGER ASSYSUPER CHARGER ASSY
-
290105-05020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
36S5-14199-00-00 ...GASKET...GASKET
-
46S5-1416A-00-00 O-RINGO-RING
-
593604-10M03-00 PIN, DOWELPIN, DOWEL
-
695814-08065-00 BOLT, FLANGEBOLT, FLANGE
-
795814-06065-00 BOLT, FLANGEBOLT, FLANGE
-
890105-08188-00 BOLT, FLANGEBOLT, FLANGE
-
990201-06028-00 WASHER, PLATEWASHER, PLATE
-
106S5-14349-00-00 PIPEPIPE
-
1190450-75003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
126S5-13670-10-00 AIR COOLER ASSY.AIR COOLER ASSY.
-
136S5-13691-00-94 BRACKET, AIR COOLER (E/N 6AN-1013101 - 6AN-1013200)BRACKET, AIR COOLER (E/N 6AN-1013101 - 6AN-1013200)
-
136S5-13691-10-00 BRACKET, AIR COOLER (E/N 6AN-1013201 & UP)BRACKET, AIR COOLER (E/N 6AN-1013201 & UP)
-
1499590-14016-00 PIN, DOWELPIN, DOWEL
-
1590119-10047-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690119-10046-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790387-11007-00 COLLARCOLLAR
-
186S5-14435-00-00 GROMMETGROMMET
-
196S5-14243-00-00 PLATEPLATE
-
2090116-10044-00 BOLT, STUDBOLT, STUD
-
2190176-10001-00 NUT, CROWNNUT, CROWN
-
2290387-11008-00 COLLARCOLLAR
-
2390480-21M63-00 GROMMETGROMMET
-
2490119-10011-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
256S5-13652-00-00 PIPE, INTAKEPIPE, INTAKE
-
266S5-13651-00-00 PIPE, BOOSTPIPE, BOOST
-
2790480-22M15-00 GROMMETGROMMET
-
286D3-14495-00-00 COLLARCOLLAR
-
2990119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090450-70005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
316S5-14148-00-00 PIPEPIPE
-
3290450-70M13-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
