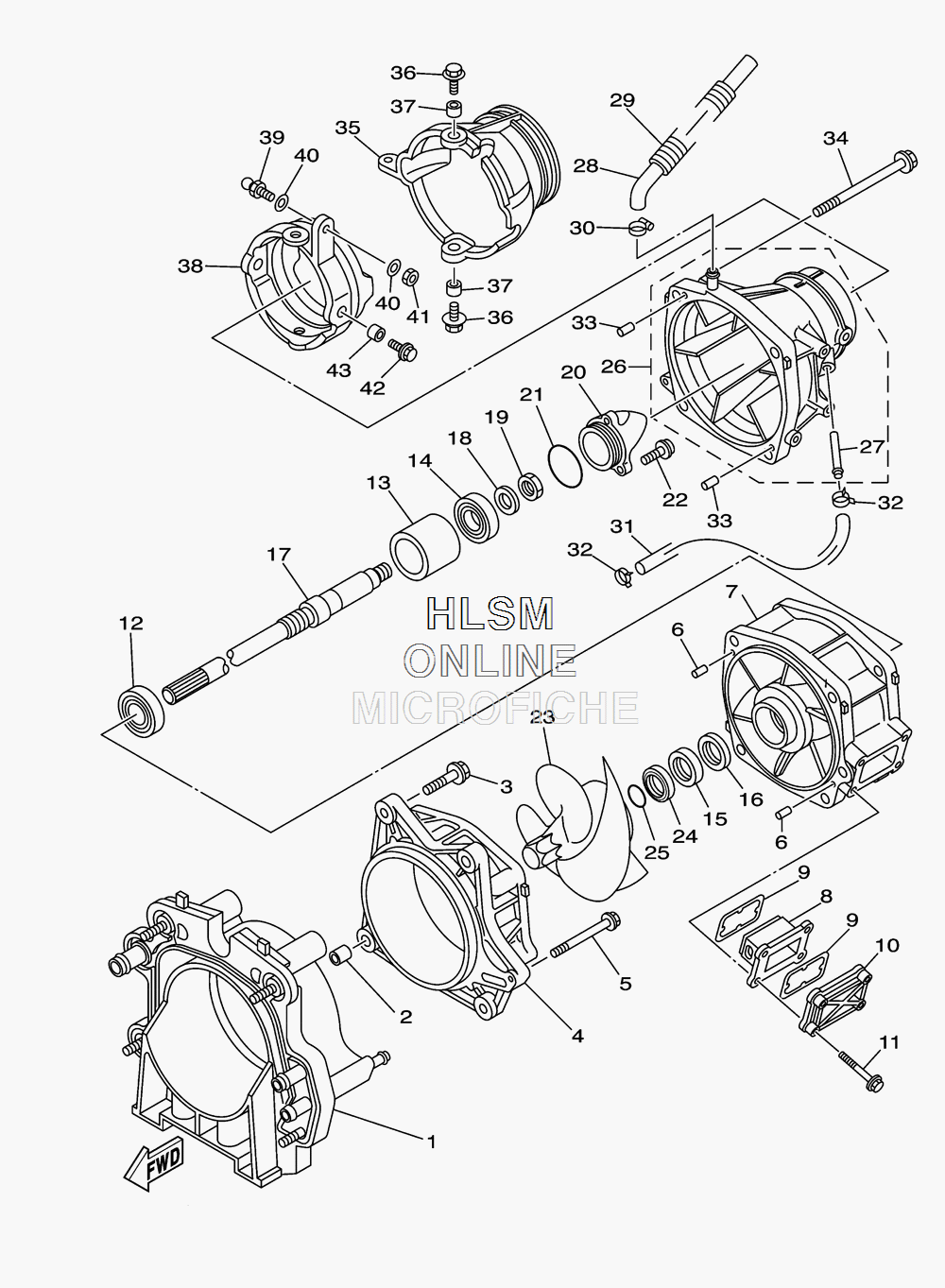

PROPULSION SYSTEM - EXTERNAL для Yamaha WAVERUNNER FZS [GX1800AL] - 2012 года выпуска
-
№АртикулНазвание
-
16AN-G5831-00-00 PLATE, TRANSOMPLATE, TRANSOM
-
299590-14016-00 PIN, DOWELPIN, DOWEL
-
390119-10810-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
466V-51312-01-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
590119-06893-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
693606-12019-00 PIN, DOWELPIN, DOWEL
-
76S5-51315-00-94 DUCT, IMPELLERDUCT, IMPELLER
-
86AN-G6882-00-00 FILTERFILTER
-
966V-42414-00-00 O-RINGO-RING
-
106AN-G5214-00-94 COVER, WATER INLET 1COVER, WATER INLET 1
-
1190119-06897-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1293306-20654-00 BEARINGBEARING
-
136S5-45538-00-00 SPACER 1SPACER 1
-
1493306-30582-00 BEARINGBEARING
-
1593102-31009-00 OIL SEALOIL SEAL
-
1693101-31001-00 OIL SEALOIL SEAL
-
176AN-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
189290P-20600-00 WASHERWASHER
-
1990170-20802-00 NUTNUT
-
206AN-R1326-00-94 CAPCAP
-
216S5-5111K-00-00 O-RING 1O-RING 1
-
2290110-06822-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
236S5-R1321-04-00 IMPELLERIMPELLER
-
246BH-51348-01-00 SPACERSPACER
-
2593210-30611-00 O-RINGO-RING
-
266S5-51318-00-94 NOZZLENOZZLE
-
2763M-51334-00-00 ...NIPPLE,HOSE...NIPPLE,HOSE
-
286AN-U72M2-00-00 HOSE 1HOSE 1
-
2990447-19015-00 TUBE (L230)TUBE (L230)
-
3090601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
3190445-14804-00 HOSE (L330)HOSE (L330)
-
3290467-14803-00 CLIP, SCISSORCLIP, SCISSOR
-
3393606-12019-00 PIN, DOWELPIN, DOWEL
-
3490119-10806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
356S5-R1313-01-00 NOZZLE, DEFLECTORNOZZLE, DEFLECTOR
-
3690119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3790387-08M06-00 COLLARCOLLAR
-
3860T-51190-00-94 RING,TRIMRING,TRIM
-
39GH3-U146E-00-00 STUD, JOINT BALLSTUD, JOINT BALL
-
4090201-068M4-00 WASHER, PLATEWASHER, PLATE
-
419538R-06700-00 NUTNUT
-
4290119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4390387-08M06-00 COLLARCOLLAR
