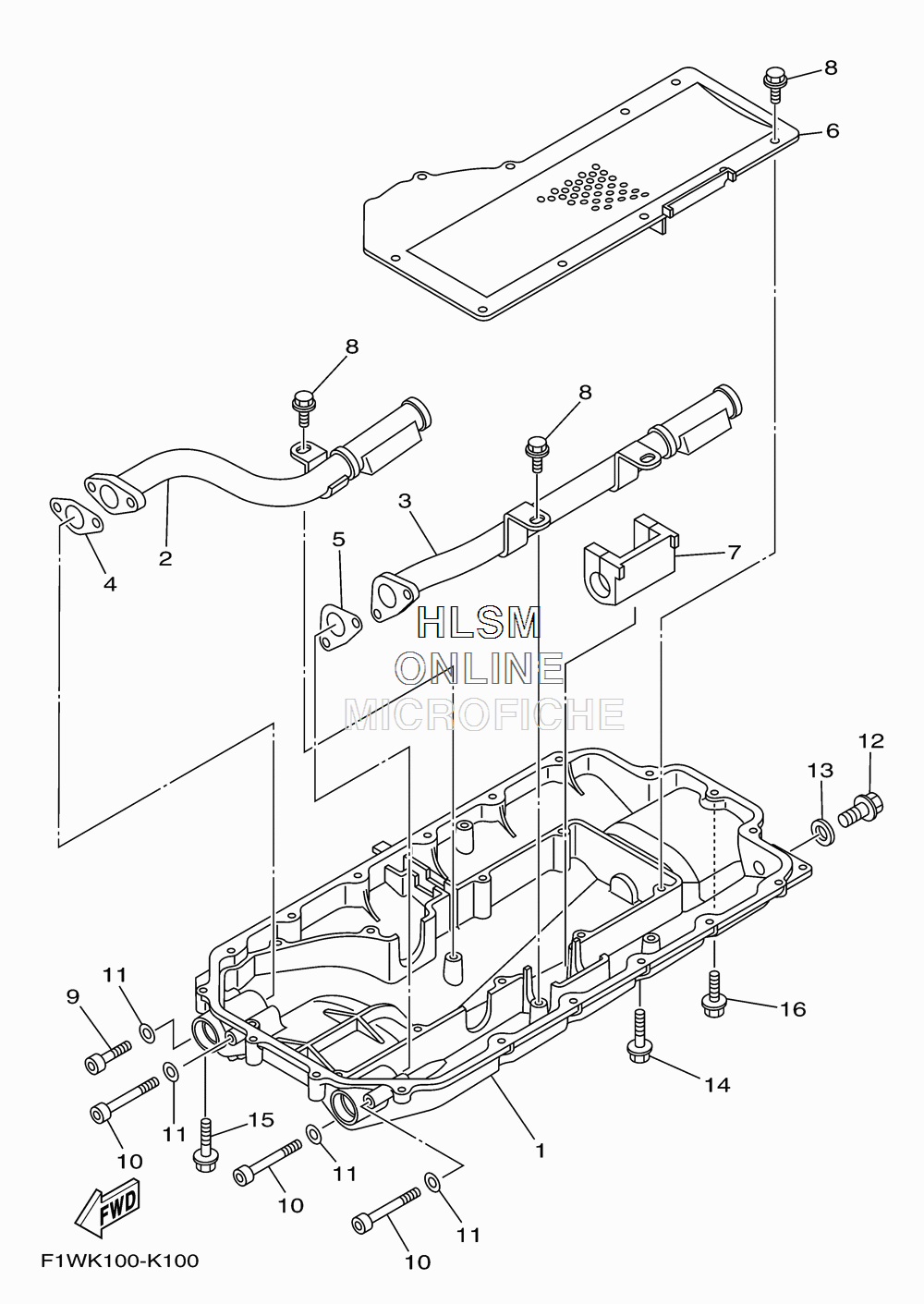

OIL PAN 2 для Yamaha WAVERUNNER VXR [VX1800AL] - 2012 года выпуска
-
№АртикулНазвание
-
16S5-1310A-10-94 PAN, OIL (E/N 6CN-1005701 - 6CN-1005800)PAN, OIL (E/N 6CN-1005701 - 6CN-1005800)
-
26S5-13405-00-00 OIL PIPE COMP. 2 (E/N 6CN-1005701 - 6CN-1005800)OIL PIPE COMP. 2 (E/N 6CN-1005701 - 6CN-1005800)
-
36S5-13406-00-00 OIL PIPE COMP. 2 (E/N 6CN-1005701 - 6CN-1005800)OIL PIPE COMP. 2 (E/N 6CN-1005701 - 6CN-1005800)
-
46S5-13476-00-00 GASKET (E/N 6CN-1005701 - 6CN-1005800)GASKET (E/N 6CN-1005701 - 6CN-1005800)
-
56S5-13477-00-00 GASKET (E/N 6CN-1005701 - 6CN-1005800)GASKET (E/N 6CN-1005701 - 6CN-1005800)
-
66S5-13317-00-00 PLATE, BAFFLE (E/N 6CN-1005701 - 6CN-1005800)PLATE, BAFFLE (E/N 6CN-1005701 - 6CN-1005800)
-
76S5-15486-00-00 GROMMET (E/N 6CN-1005701 - 6CN-1005800)GROMMET (E/N 6CN-1005701 - 6CN-1005800)
-
895817-06014-00 BOLT, FLANGEBOLT, FLANGE
-
991314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1091314-06060-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190201-06028-00 WASHER, PLATEWASHER, PLATE
-
1295814-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1390430-08209-00 GASKETGASKET
-
1495024-06035-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
1595024-06030-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
1695024-06020-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
