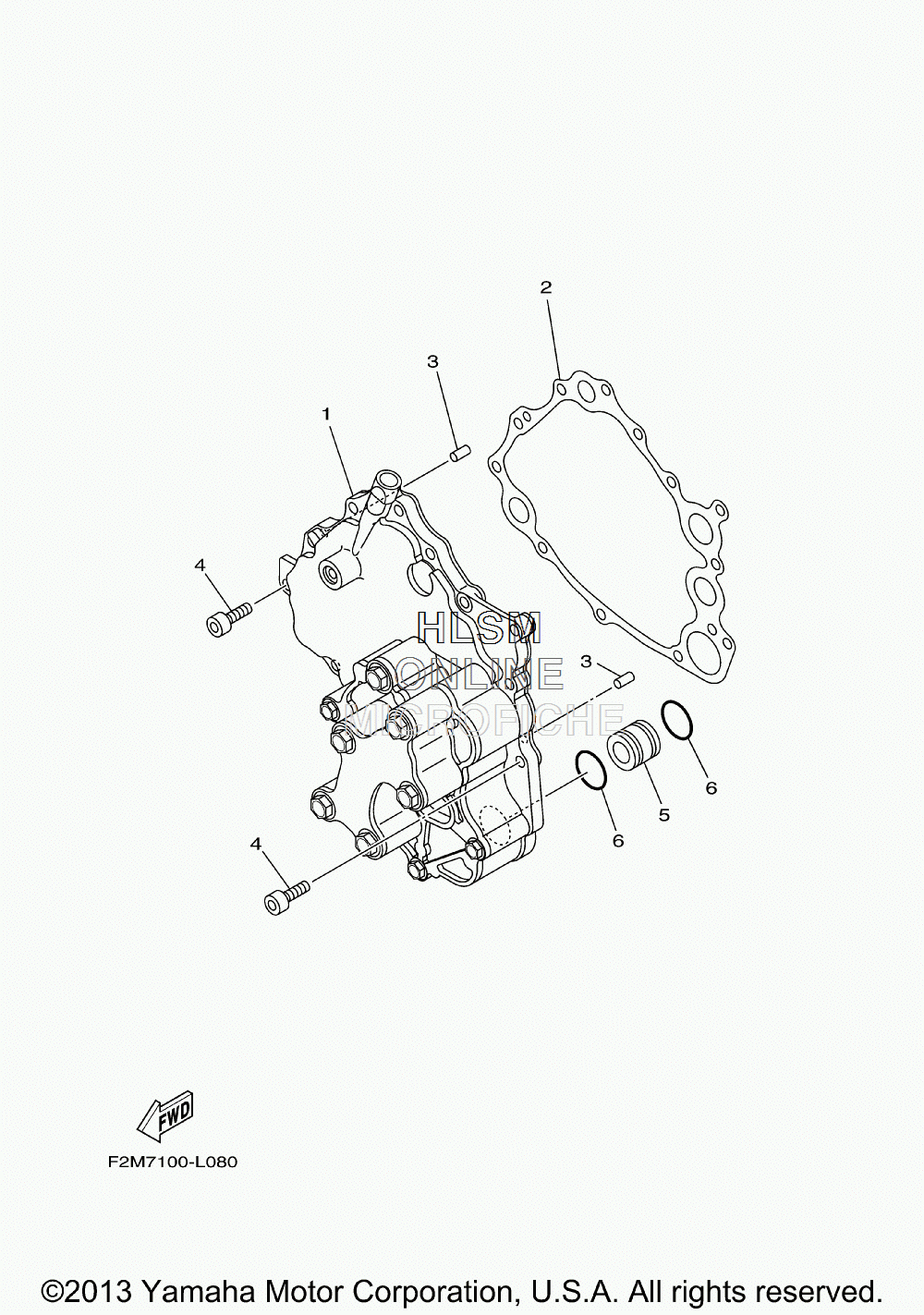

OIL PUMP для Yamaha WAVERUNNER VXS [VX1800L] - 2012 года выпуска
-
№АртикулНазвание
-
16BH-13300-00-00 OIL PUMP ASSY (E/N 6CN-1005701 - 6CN-1005800)OIL PUMP ASSY (E/N 6CN-1005701 - 6CN-1005800)
-
16BH-13300-10-00 OIL PUMP ASSY (E/N 6CN-1005801 & UP)OIL PUMP ASSY (E/N 6CN-1005801 & UP)
-
26S5-13563-00-00 GASKETGASKET
-
393606-12019-00 PIN, DOWELPIN, DOWEL
-
491314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
56S5-13446-00-00 CONNECTOR (E/N 6CN-1005701 - 6CN-1005800)CONNECTOR (E/N 6CN-1005701 - 6CN-1005800)
-
56S5-13446-10-00 CONNECTOR (E/N 6CN-1005801 & UP)CONNECTOR (E/N 6CN-1005801 & UP)
-
693210-21631-00 O-RING (E/N 6CN-1005801 & UP)O-RING (E/N 6CN-1005801 & UP)
-
693210-21631-00 O-RING (E/N 6CN-1005701 - 6CN-1005800)O-RING (E/N 6CN-1005701 - 6CN-1005800)
Все узлы модели:
- AIR CLEANER ASSY.
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PAN 2
- • OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
