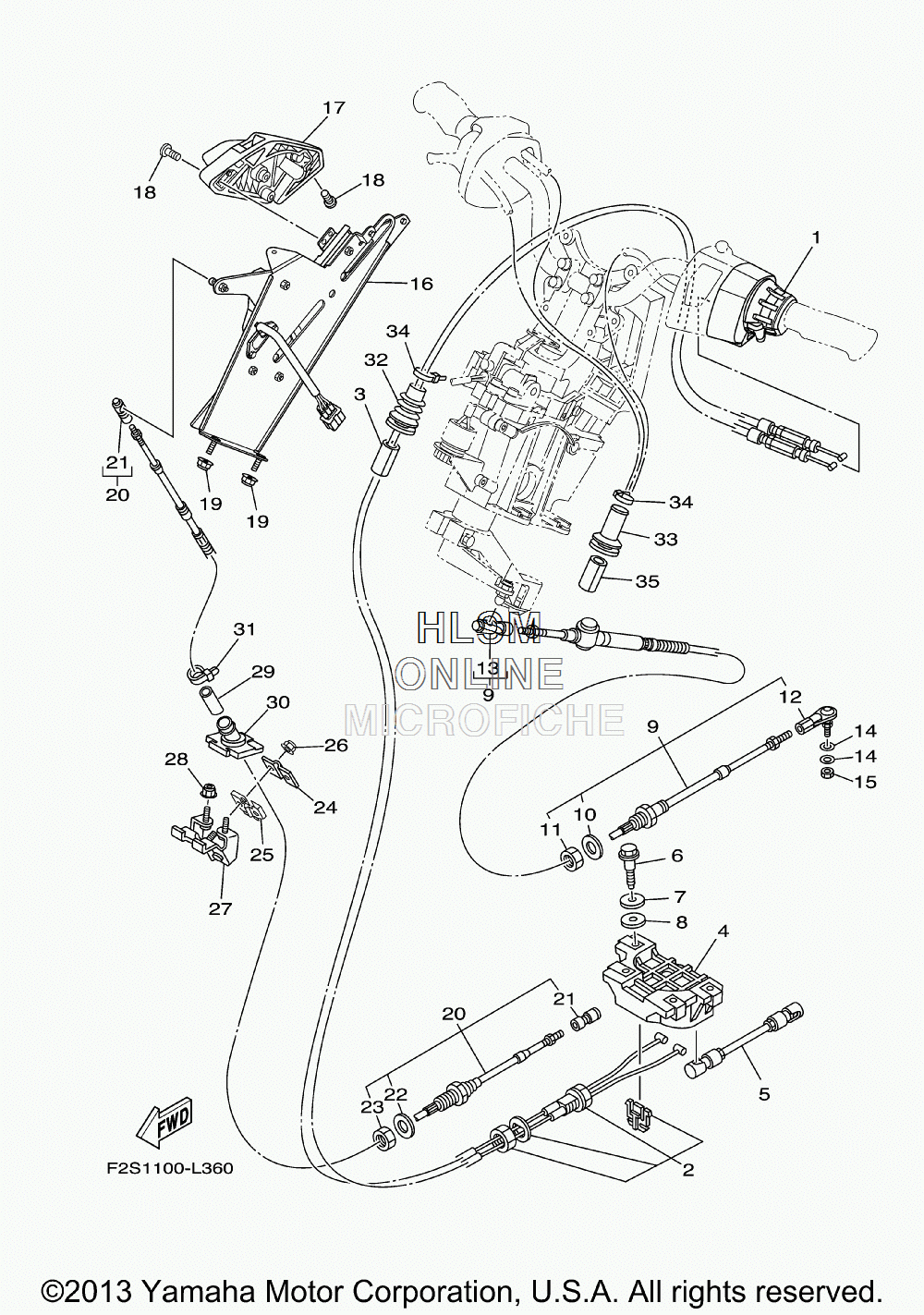

CONTROL CABLES для Yamaha WAVERUNNER FX CRUISER SHO [FA1800AM] - 2013 года выпуска
-
№АртикулНазвание
-
1F2S-6153A-00-00 NOZZLE,CONTROL ASSYNOZZLE,CONTROL ASSY
-
2F2S-6153E-00-00 CABLE,NOZZLE CONTROL 3CABLE,NOZZLE CONTROL 3
-
3GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
-
4F1W-6153J-00-00 REMOCON,NOZZLE 2REMOCON,NOZZLE 2
-
5F1W-6150A-00-00 ROD ASSYROD ASSY
-
690109-06233-00 BOLTBOLT
-
790201-099U3-00 WASHER, PLATEWASHER, PLATE
-
890202-08002-00 WASHER, PLATEWASHER, PLATE
-
9F1S-61481-10-00 CABLE, STEERINGCABLE, STEERING
-
10F1B-61438-00-00 ...PACKING C...PACKING C
-
11F1B-6151S-00-00 ...NUT...NUT
-
12F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
13F2N-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
1490201-06906-00 WASHER, PLATEWASHER, PLATE
-
159538R-06700-00 NUTNUT
-
16F2S-6134A-01-00 REMOCON. LEVER ASSY.REMOCON. LEVER ASSY.
-
17F2S-62714-00-00 GRIPGRIP
-
1890154-06017-00 SCREW, BINDINGSCREW, BINDING
-
19F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
20F2S-U149C-01-00 CABLE,REVERSECABLE,REVERSE
-
21F0V-U1461-00-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
22F2S-U1438-00-00 ...PACKING C...PACKING C
-
23F2S-U151S-00-00 ...NUT...NUT
-
24GH1-61468-01-00 STOPPER, CABLESTOPPER, CABLE
-
25GU5-6146K-10-00 HOLDER, STOPPERHOLDER, STOPPER
-
26F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
27F2S-U1467-10-00 BRACKET,STOPPER CABLEBRACKET,STOPPER CABLE
-
28F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
29F1W-U146G-00-00 PACKING, CABLEPACKING, CABLE
-
30F2S-U146G-10-00 PACKING, CABLEPACKING, CABLE
-
3190465-11829-00 CLAMPCLAMP
-
32F0D-6822E-00-00 GROMMETGROMMET
-
33GU2-6822E-01-00 GROMMETGROMMET
-
3490601-200U1-00 BANDBAND
-
35GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
