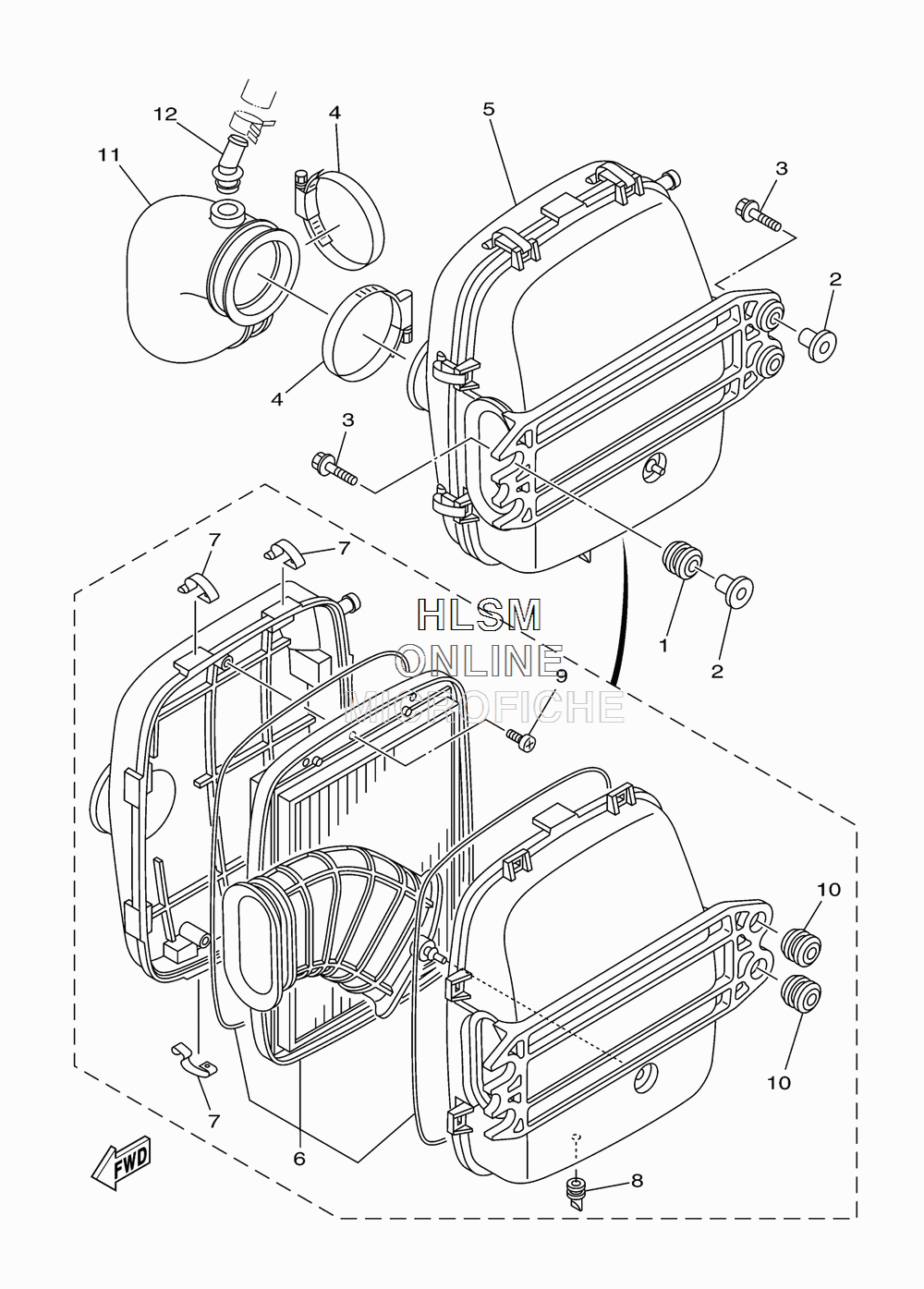

INTAKE 3 для Yamaha WAVERUNNER FZS [GX1800AM] - 2013 года выпуска
-
№АртикулНазвание
-
190480-22M15-00 GROMMETGROMMET
-
26D3-14495-00-00 COLLARCOLLAR
-
390119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490450-90002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
56S5-E4410-01-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
66S5-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
76S5-E4436-00-00 ...HOOK...HOOK
-
86S5-G2717-00-00 ...RUBBER, SEAL 2...RUBBER, SEAL 2
-
997780-60516-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1090480-22801-00 ...GROMMET...GROMMET
-
116S5-E4419-00-00 PIPEPIPE
-
126S5-R1142-10-00 CONNECTIONCONNECTION
