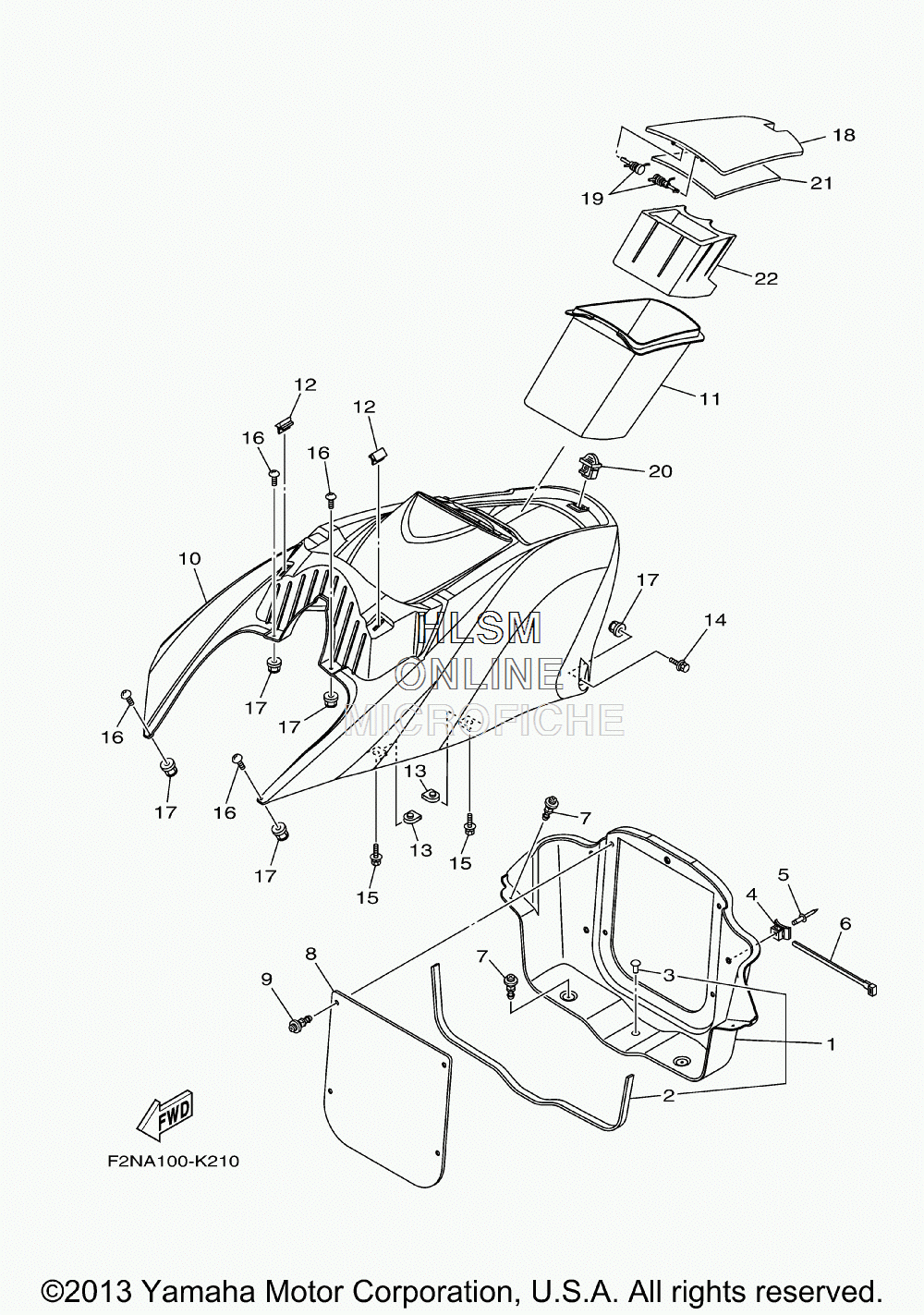

SIDE COVERS для Yamaha WAVERUNNER VX CRUISER [VX1100AM] - 2013 года выпуска
-
№АртикулНазвание
-
1F2N-U475B-03-00 LOCKER,BOWLOCKER,BOW
-
2F2N-U266C-01-00 ...PACKING 4...PACKING 4
-
390605-502U1-00 ...PLUG, BLIND...PLUG, BLIND
-
4F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
590267-48803-00 RIVET, BLINDRIVET, BLIND
-
690464-32801-00 CLAMPCLAMP
-
790269-08801-00 RIVETRIVET
-
8F1W-U475F-01-00 PLATE, LOKER BOWPLATE, LOKER BOW
-
990269-08801-00 RIVETRIVET
-
10F2N-U516N-00-PA COVER, ENGINE HATCH (DRMR) (DELUXE)COVER, ENGINE HATCH (DRMR) (DELUXE)
-
10F2N-U516N-00-P9 COVER, ENGINE HATCH (DNMC) (DELUXE)COVER, ENGINE HATCH (DNMC) (DELUXE)
-
10F2N-U516N-00-P4 COVER, ENGINE HATCH (LNMP) (CRUISER)COVER, ENGINE HATCH (LNMP) (CRUISER)
-
10F2N-U516N-00-P7 COVER, ENGINE HATCH (DPBM11) (CRUISER)COVER, ENGINE HATCH (DPBM11) (CRUISER)
-
11F2N-U516P-00-00 BOX GLOVEBOX GLOVE
-
12F1K-U266C-00-00 PACKING 4PACKING 4
-
1390183-06902-00 NUT, SPRINGNUT, SPRING
-
1490119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
16F2N-67823-10-00 SCREWSCREW
-
17F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
18F2N-U517H-01-00 LID HATCHLID HATCH
-
19F0X-6517R-01-00 PIN, HINGEPIN, HINGE
-
20GU2-62875-01-00 LOCKLOCK
-
21F2P-U519D-00-00 PACKING CASEPACKING CASE
-
22F2N-U5633-00-00 HOLDER, DRINKHOLDER, DRINK
