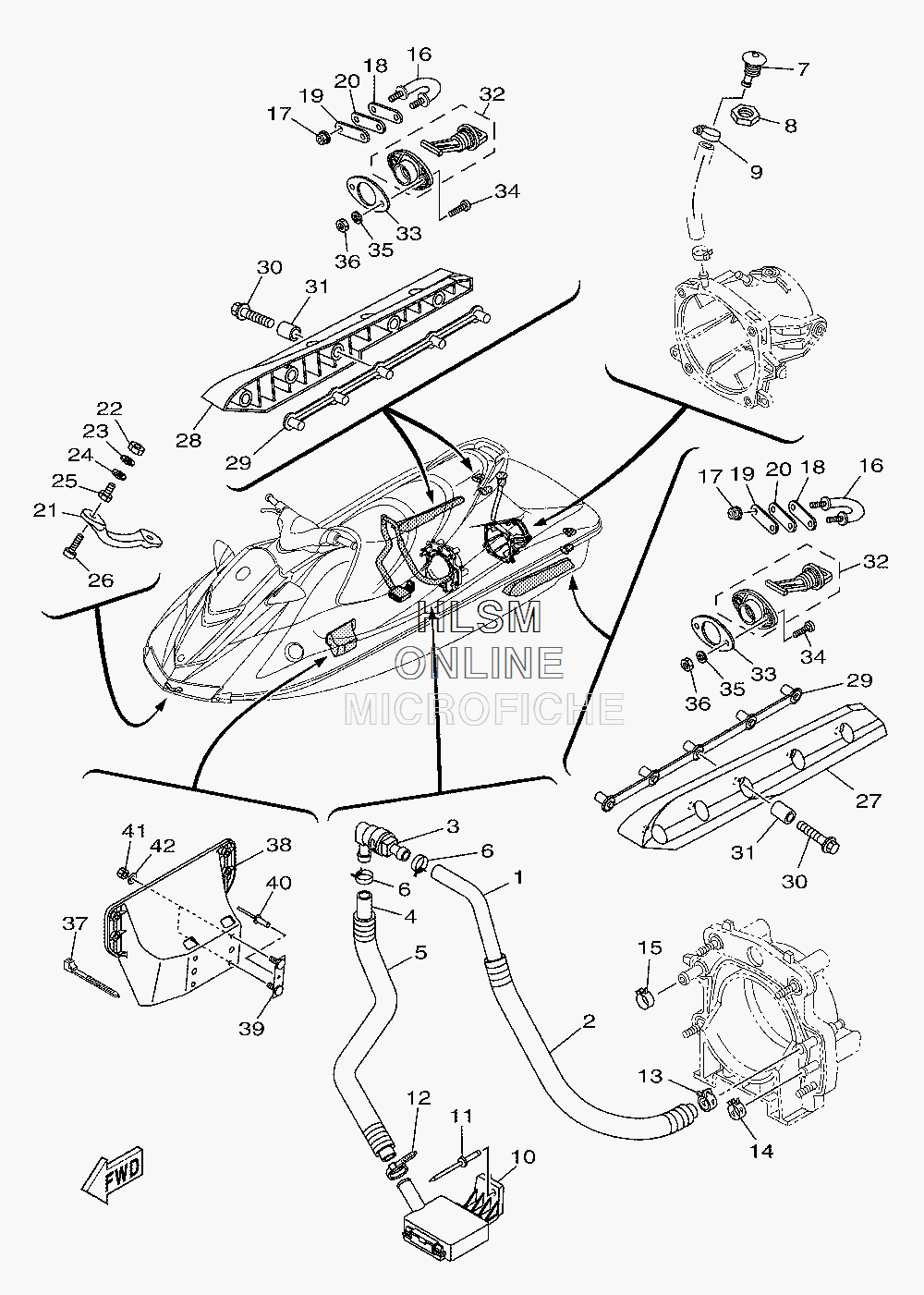

HULL FITTINGS W/ SPONSONS для Yamaha WAVERUNNER VXS [VX1800M] - 2013 года выпуска
-
№АртикулНазвание
-
190445-20804-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSE (L700)HOSE (L700)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20800-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690467-18804-00 CLIPCLIP
-
7F1W-U269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290465-11829-00 CLAMPCLAMP
-
1390467-21800-00 CLIPCLIP
-
1490467-200A0-00 CLIPCLIP
-
1590467-250A0-00 CLIPCLIP
-
16F2N-U1628-02-00 STERN EYESTERN EYE
-
179572R-08300-00 NUT, FLANGENUT, FLANGE
-
18GP7-U4953-10-00 PLATE APLATE A
-
19F2C-U4953-10-00 PLATE APLATE A
-
20F1B-U1653-02-00 PACKINGPACKING
-
21F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2299780-12600-00 NUT.HEX.(COARS)NUT.HEX.(COARS)
-
2392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
24F0X-61637-00-00 WASHERWASHER
-
25F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2690110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
27F1S-U883N-01-00 STABILIZER LH (BLACK)STABILIZER LH (BLACK)
-
28F1S-U883P-01-00 STABILIZER RH (BLACK)STABILIZER RH (BLACK)
-
29F1X-U883T-01-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
3090105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
31F2N-U8169-00-00 SPACERSPACER
-
32F1S-U2280-00-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
33F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
349788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
359299R-05200-00 WASHERWASHER
-
369572R-05300-00 NUT, FLANGENUT, FLANGE
-
3790464-32801-00 CLAMPCLAMP
-
38F1W-U8572-01-00 BRACKET 2BRACKET 2
-
39F1K-U826C-03-00 BRACKETBRACKET
-
4090267-489U1-00 RIVET,BLINDRIVET,BLIND
-
419572R-08300-00 NUT, FLANGENUT, FLANGE
-
429299R-08200-00 WASHERWASHER
