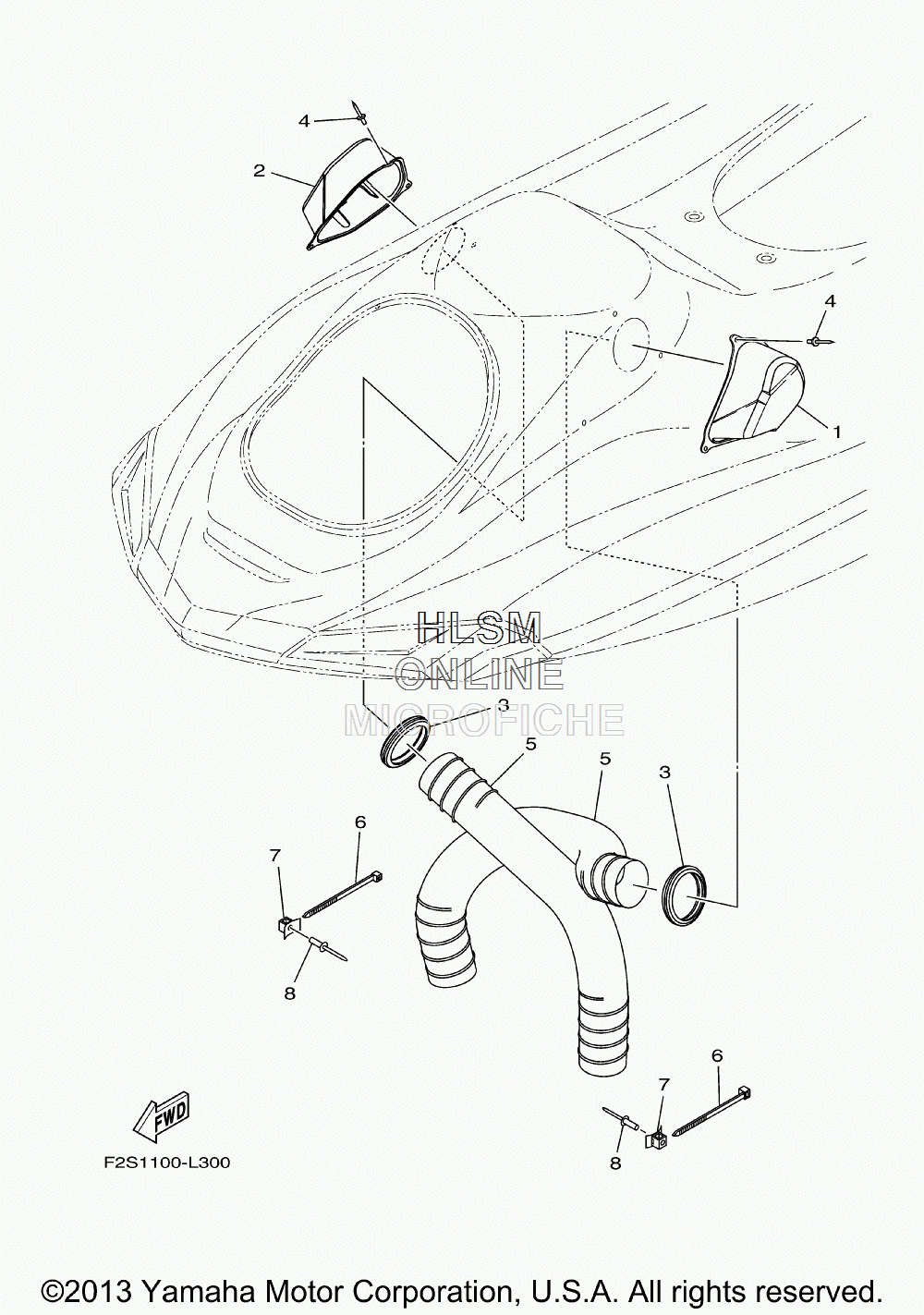

VENTILATION для Yamaha FX CRUISER SVHO - 2014 года выпуска
-
№АртикулНазвание
-
1F2S-U2187-00-00 BOX, INDUCTION 1BOX, INDUCTION 1
-
2F2S-U2188-00-00 BOX, INDUCTION 2BOX, INDUCTION 2
-
3F2N-U2127-00-00 BASE, AIR INTAKEBASE, AIR INTAKE
-
490267-48806-00 RIVET, BLINDRIVET, BLIND
-
5F2N-U213G-01-00 HOSE, VENTILATOR 2HOSE, VENTILATOR 2
-
690464-99804-00 CLAMPCLAMP
-
7F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
890267-489U6-00 RIVET, BLINDRIVET, BLIND
