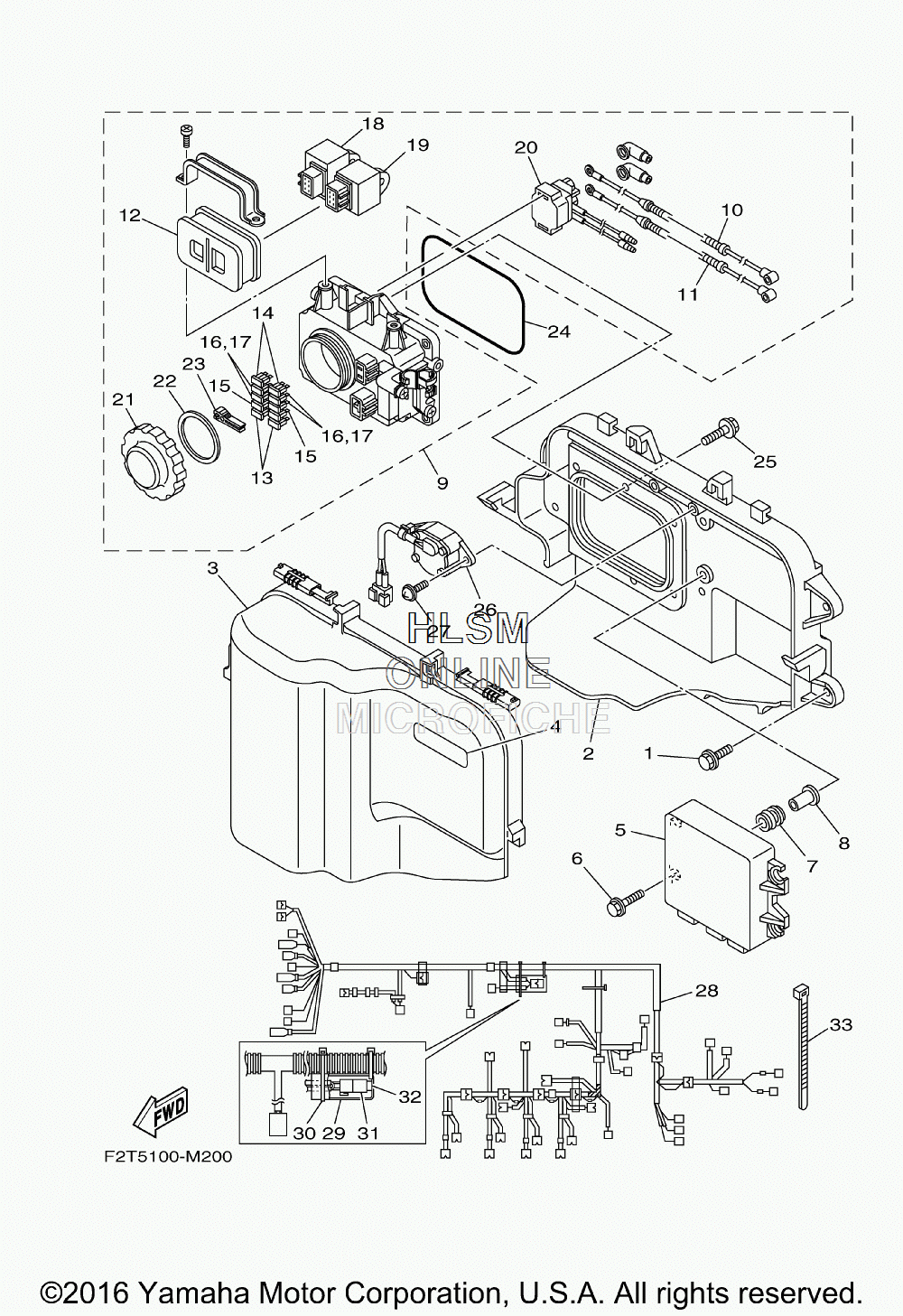

ELECTRICAL 1 для Yamaha FX HO - 2014 года выпуска`
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
26BH-81845-00-00 PLATEPLATE
-
36S5-81942-10-00 COVERCOVER
-
460E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
56CR-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
690119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
76A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
890387-06119-00 COLLARCOLLAR
-
96BH-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
106S5-82115-00-00 ...WIRE, PLUS LEAD...WIRE, PLUS LEAD
-
116S5-82117-00-00 ...WIRE, LEAD...WIRE, LEAD
-
126D3-82157-00-00 ...DAMPER...DAMPER
-
1367F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
1467F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
1567F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
1667F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
1767F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
1860E-81950-00-00 ...RELAY ASSY...RELAY ASSY
-
1968V-81950-00-00 ...RELAY ASSY...RELAY ASSY
-
206B6-81940-00-00 ...STARTER RELAY ASSY...STARTER RELAY ASSY
-
2166V-8132W-00-00 ...CAP...CAP
-
2266V-81844-00-00 ...GASKET...GASKET
-
2367F-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
246BH-81847-00-00 O-RINGO-RING
-
2590119-06091-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
266S5-8259E-00-00 SWITCH ASSYSWITCH ASSY
-
2797780-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
286CR-8259L-10-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
294B5-82599-00-00 ...COVER, CONNECTER...COVER, CONNECTER
-
3090465-13M18-00 ...CLAMP...CLAMP
-
3167F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
3267F-8215B-00-00 ...CAP (BLACK)...CAP (BLACK)
-
3390465-14M66-00 CLAMPCLAMP
