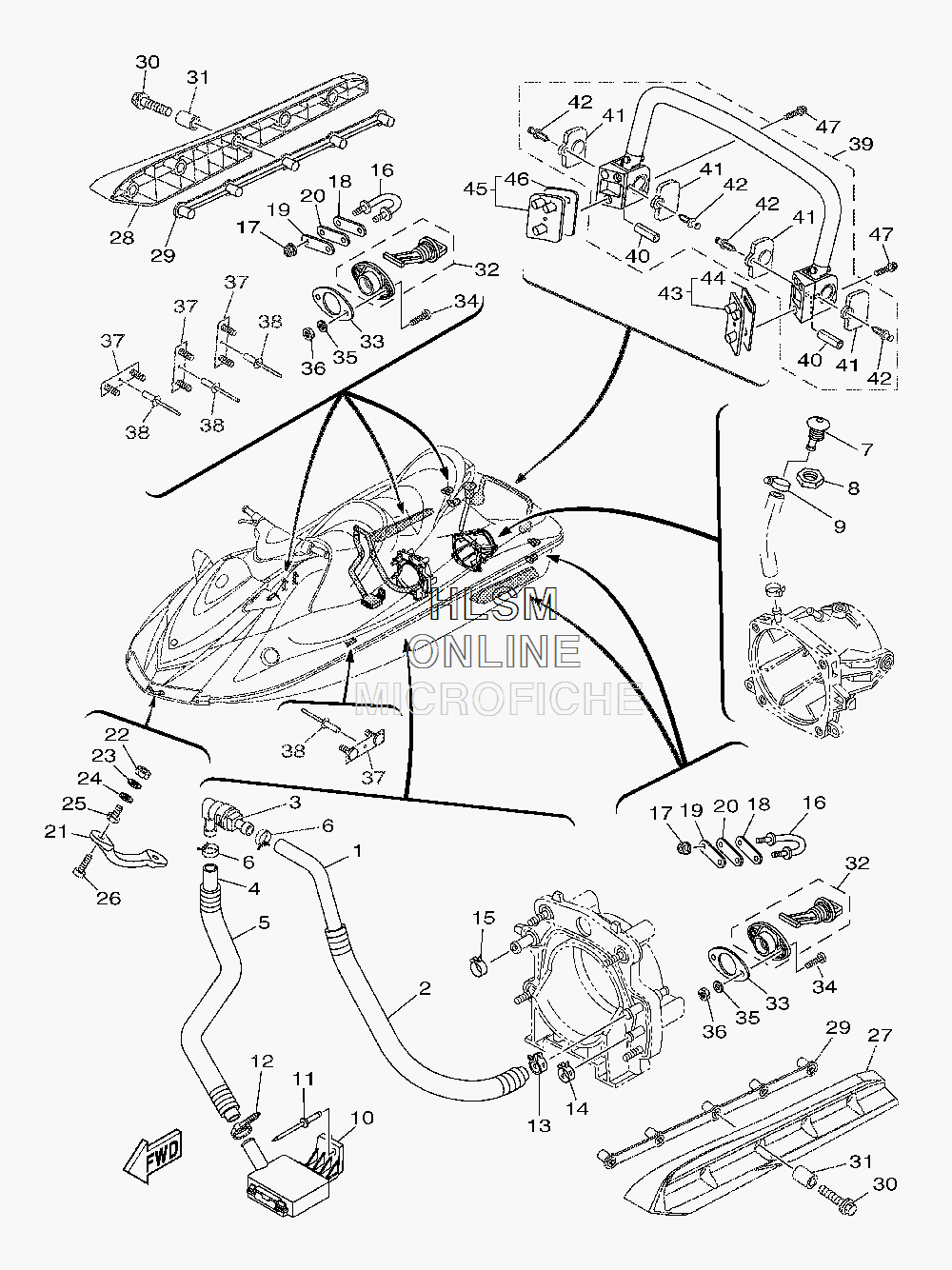

HULL FITTINGS W/ SPONSONS для Yamaha VX DELUXE - 2014 года выпуска
-
№АртикулНазвание
-
190445-20804-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSE (L700)HOSE (L700)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-20800-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690467-18804-00 CLIPCLIP
-
7F1W-U269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290465-11829-00 CLAMPCLAMP
-
1390467-21800-00 CLIPCLIP
-
1490467-200A0-00 CLIPCLIP
-
1590467-210A0-00 CLIPCLIP
-
16F2N-U1628-02-00 STERN EYESTERN EYE
-
179572R-08300-00 NUT, FLANGENUT, FLANGE
-
18GP7-U4953-10-00 PLATE APLATE A
-
19F2C-U4953-10-00 PLATE APLATE A
-
20F1B-U1653-02-00 PACKINGPACKING
-
21F1K-61624-00-00 BOWEYE 1BOWEYE 1
-
2299780-12600-00 NUT.HEX.(COARSE)NUT.HEX.(COARSE)
-
2392990-12200-00 WASHER, PLAINWASHER, PLAIN
-
24F0X-61637-00-00 WASHERWASHER
-
25F0X-61652-00-00 NUT (BOLT/NUT)NUT (BOLT/NUT)
-
2690110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
27F2N-U883N-00-00 STABILIZER LHSTABILIZER LH
-
28F2N-U883P-00-00 STABILIZER RHSTABILIZER RH
-
29F1X-U883T-01-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
3090105-08860-00 BOLT, FLANGEBOLT, FLANGE
-
31F2N-U8169-00-00 SPACERSPACER
-
32F1S-U2280-02-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
33F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
349788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
359299R-05200-00 WASHERWASHER
-
369572R-05300-00 NUT, FLANGENUT, FLANGE
-
37F1K-U826C-03-00 BRACKETBRACKET
-
3890267-489U1-00 RIVET,BLINDRIVET,BLIND
-
39F2N-U278A-00-00 LADDER, STEP ASSYLADDER, STEP ASSY
-
40F1W-U771H-00-00 ...SLEEVE 1...SLEEVE 1
-
41F2C-U377H-00-00 ...INNER, COVER SIDE 1...INNER, COVER SIDE 1
-
42F2C-U1314-00-00 ...PIN...PIN
-
43F2L-U278F-01-00 BRACKET, LADDER LHBRACKET, LADDER LH
-
44F2L-U278H-00-00 ...PACKING, BRKT. 1...PACKING, BRKT. 1
-
45F2L-U278G-01-00 ...BRACKET, LADDER RH...BRACKET, LADDER RH
-
46F2L-U278H-00-00 ...PACKING, BRKT. 1...PACKING, BRKT. 1
-
4790119-08861-00 BOLT, WITH WASHERBOLT, WITH WASHER
