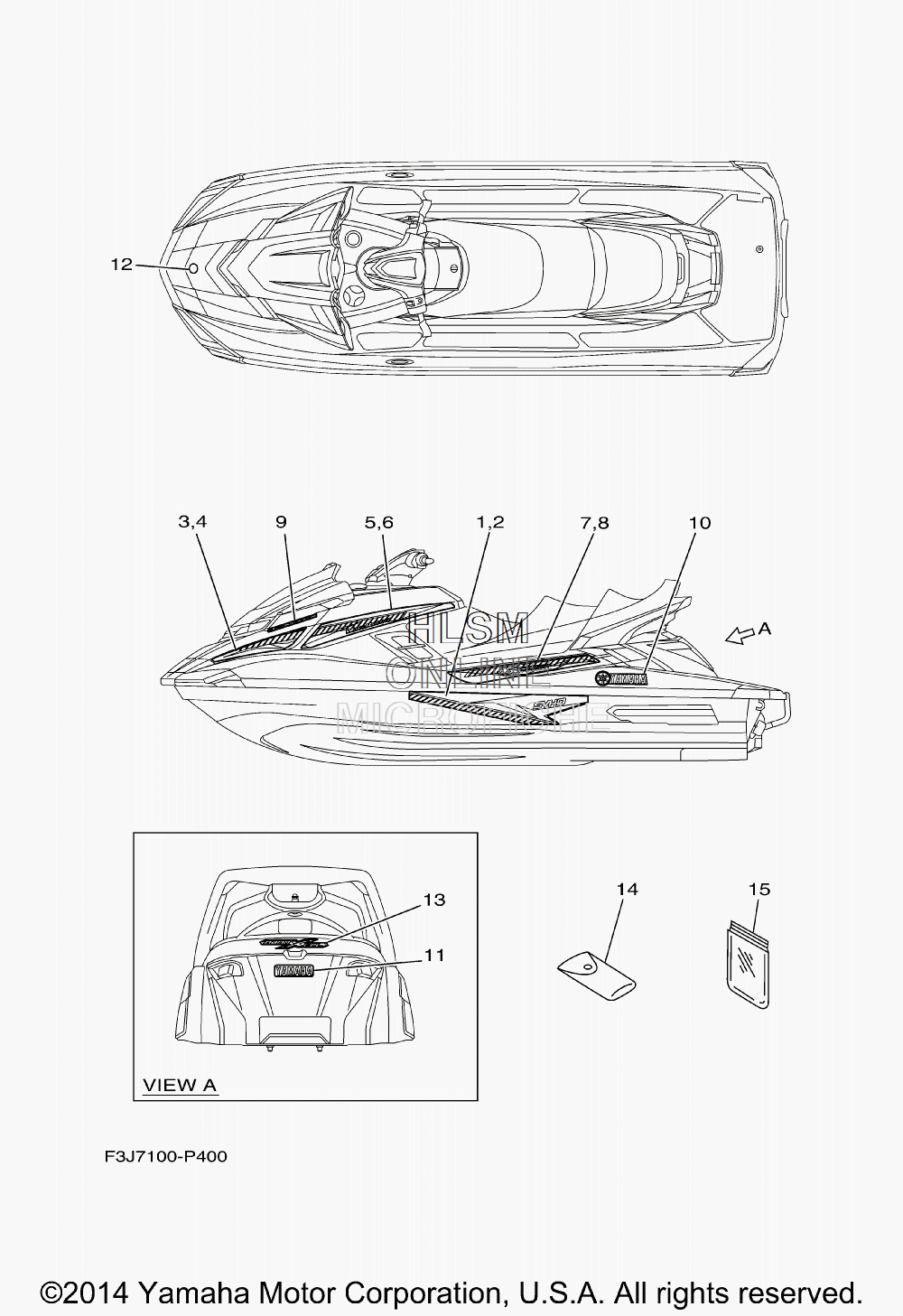

GRAPHICS для Yamaha FX CRUSISER SVHO - 2015 года выпуска
-
№АртикулНазвание
-
1F3J-U417B-60-00 GRAPHIC 1 (LEFT HAND) (PURW - PURE WHITE)GRAPHIC 1 (LEFT HAND) (PURW - PURE WHITE)
-
1F3J-U417B-70-00 GRAPHIC 1 (LEFT HAND) (RM9 - RED METALLIC)GRAPHIC 1 (LEFT HAND) (RM9 - RED METALLIC)
-
2F3J-U417C-70-00 GRAPHIC 2 (RIGHT HAND) (RM9 - RED METALLIC)GRAPHIC 2 (RIGHT HAND) (RM9 - RED METALLIC)
-
2F3J-U417C-60-00 GRAPHIC 2 (RIGHT HAND) (PURW - PURE WHITE)GRAPHIC 2 (RIGHT HAND) (PURW - PURE WHITE)
-
3F3J-U417D-70-00 GRAPHIC 3 (LEFT HAND) (RM9 - RED METALLIC)GRAPHIC 3 (LEFT HAND) (RM9 - RED METALLIC)
-
3F3J-U417D-60-00 GRAPHIC 3 (LEFT HAND) (PURW - PURE WHITE)GRAPHIC 3 (LEFT HAND) (PURW - PURE WHITE)
-
4F3J-U417E-70-00 GRAPHIC 4 (RIGHT HAND) (RM9 - RED METALLIC)GRAPHIC 4 (RIGHT HAND) (RM9 - RED METALLIC)
-
4F3J-U417E-60-00 GRAPHIC 4 (RIGHT HAND) (PURW - PURE WHITE)GRAPHIC 4 (RIGHT HAND) (PURW - PURE WHITE)
-
5F3J-U417F-70-00 GRAPHIC 5 (LEFT HAND) (RM9 - RED METALLIC)GRAPHIC 5 (LEFT HAND) (RM9 - RED METALLIC)
-
5F3J-U417F-60-00 GRAPHIC 5 (LEFT HAND) (PURW - PURE WHITE)GRAPHIC 5 (LEFT HAND) (PURW - PURE WHITE)
-
6F3J-U417G-70-00 GRAPHIC 6 (RIGHT HAND) (RM9 - RED METALLIC)GRAPHIC 6 (RIGHT HAND) (RM9 - RED METALLIC)
-
6F3J-U417G-60-00 GRAPHIC 6 (RIGHT HAND) (PURW - PURE WHITE)GRAPHIC 6 (RIGHT HAND) (PURW - PURE WHITE)
-
7F3J-U417H-60-00 GRAPHIC 7 (LEFT HAND) (PURW - PURE WHITE)GRAPHIC 7 (LEFT HAND) (PURW - PURE WHITE)
-
7F3J-U417H-70-00 GRAPHIC 7 (LEFT HAND) (RM9 - RED METALLIC)GRAPHIC 7 (LEFT HAND) (RM9 - RED METALLIC)
-
8F3J-U417J-60-00 GRAPHIC 8 (RIGHT HAND) (PURW - PURE WHITE)GRAPHIC 8 (RIGHT HAND) (PURW - PURE WHITE)
-
8F3J-U417J-70-00 GRAPHIC 8 (RIGHT HAND) (RM9 - RED METALLIC)GRAPHIC 8 (RIGHT HAND) (RM9 - RED METALLIC)
-
9F3J-U417M-60-00 GRAPHIC C (PURW - PURE WHITE)GRAPHIC C (PURW - PURE WHITE)
-
9F3L-U417M-10-00 GRAPHIC C (RM9 - RED METALLIC)GRAPHIC C (RM9 - RED METALLIC)
-
10F2S-U4116-00-00 MARK, YAMAHA 3MARK, YAMAHA 3
-
11F1B-U411C-02-00 EMBLEM, YAMAHA (PURW - PURE WHITE)EMBLEM, YAMAHA (PURW - PURE WHITE)
-
11F3L-U4114-10-00 MARK, YAMAHA A (RM9 - RED METALLIC)MARK, YAMAHA A (RM9 - RED METALLIC)
-
12F2S-6411H-00-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
13F3J-U4121-00-00 EMBLEM AEMBLEM A
-
14F1B-65986-13-00 TOOL SETTOOL SET
-
15EU0-65901-02-00 TOOL BAGTOOL BAG
Все узлы модели:
- AIR CLEANER ASSY
- BILGE PUMP
- BILGE SYSTEM
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD ASSY
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- • GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT - REAR GRIP
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- THROTTLE BODY ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
