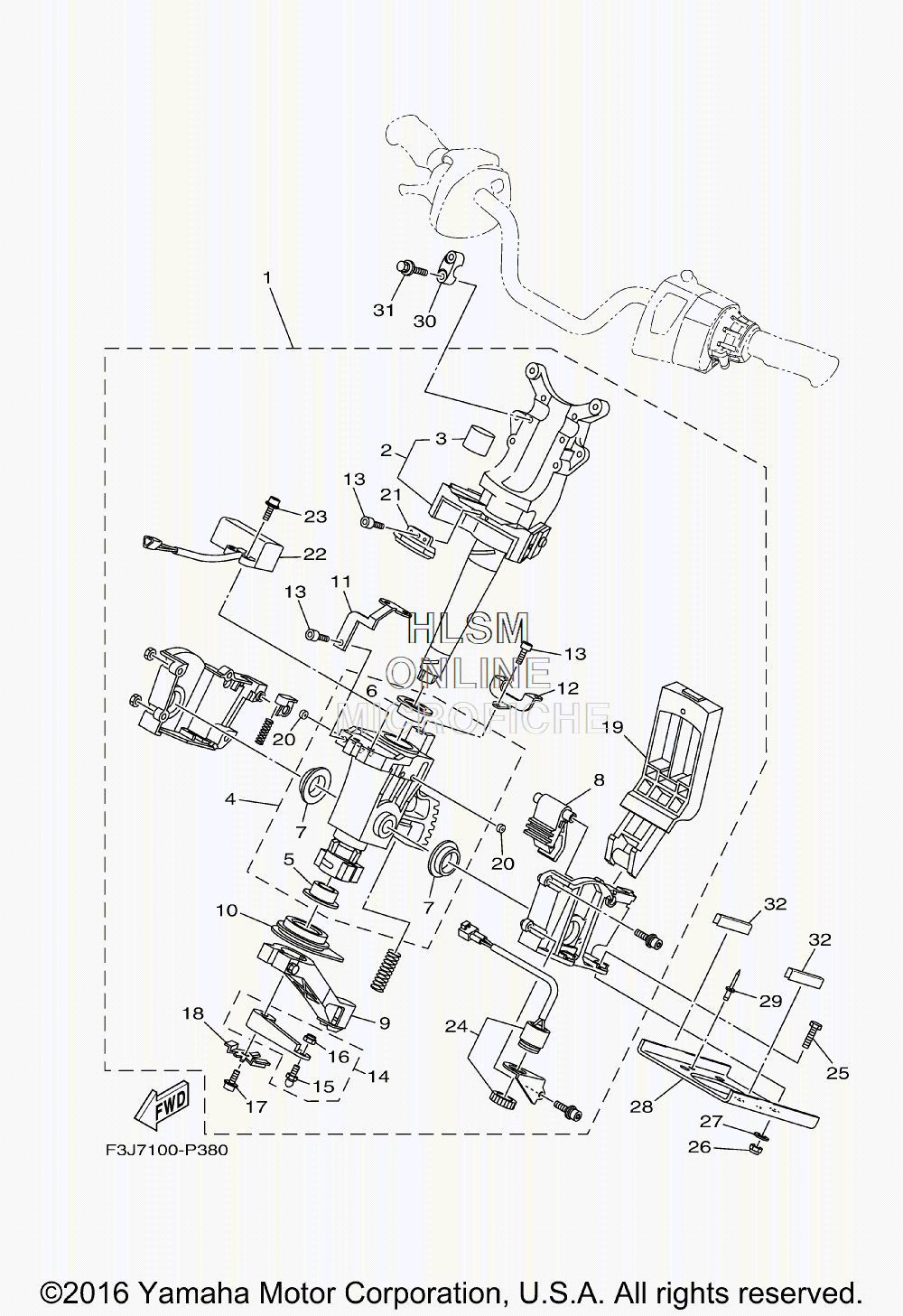

HANDLEBAR PAD для Yamaha FX SHO - 2015 года выпуска
-
№АртикулНазвание
-
1F3J-61400-00-00 STEERING MASTER ASSYSTEERING MASTER ASSY
-
2F3J-67410-00-00 ...SHAFT ASSY...SHAFT ASSY
-
3F1W-61435-00-00 ......SEAL, PIPE 30......SEAL, PIPE 30
-
4F1W-6773D-00-00 ...TUBE & BUSHING SET...TUBE & BUSHING SET
-
5F1S-6134M-00-00 ......BUSH......BUSH
-
6F2C-6134M-00-00 ......BUSH......BUSH
-
7F1S-6134M-10-00 ......BUSH......BUSH
-
8F1S-61782-00-00 ...LOCK 1...LOCK 1
-
9F1S-6146A-00-00 ...CABLE STOPPER ASSY....CABLE STOPPER ASSY.
-
10F1S-6143C-00-00 ...SEAL, RUBBER...SEAL, RUBBER
-
11F3J-65938-00-00 ...STAY 1...STAY 1
-
12F3J-65939-00-00 ...STAY 2...STAY 2
-
13F1B-613C1-00-00 ...SCREW...SCREW
-
14F1S-6153R-01-00 ...ARM ASSY....ARM ASSY.
-
15EU0-61461-02-00 ......STUD, JOINT BALL......STUD, JOINT BALL
-
1695720-06300-00 ......NUT, SELF-LOCKING......NUT, SELF-LOCKING
-
17F1W-61355-00-00 ...BOLT...BOLT
-
18F1W-6142B-00-00 ...PLATE, RETAINING...PLATE, RETAINING
-
19F2S-6151M-00-00 ...LEVER ASSY...LEVER ASSY
-
20F1W-6358B-00-00 ...PLUG...PLUG
-
21F3J-6838C-00-00 ...MAGNET...MAGNET
-
22F3J-6838B-00-00 ...SENSOR, MAGNET...SENSOR, MAGNET
-
23F1W-61516-00-00 ...BOLT...BOLT
-
24F1S-68341-00-00 ...BUZZER...BUZZER
-
2597080-08035-00 BOLTBOLT
-
269572R-08300-00 NUT, FLANGENUT, FLANGE
-
27F1W-U725E-00-00 WASHERWASHER
-
28F1X-U1554-00-00 PLATE, RETAININGPLATE, RETAINING
-
2990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
30EU0-23814-31-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
3190119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
32F2S-U5162-00-00 TRIMTRIM
