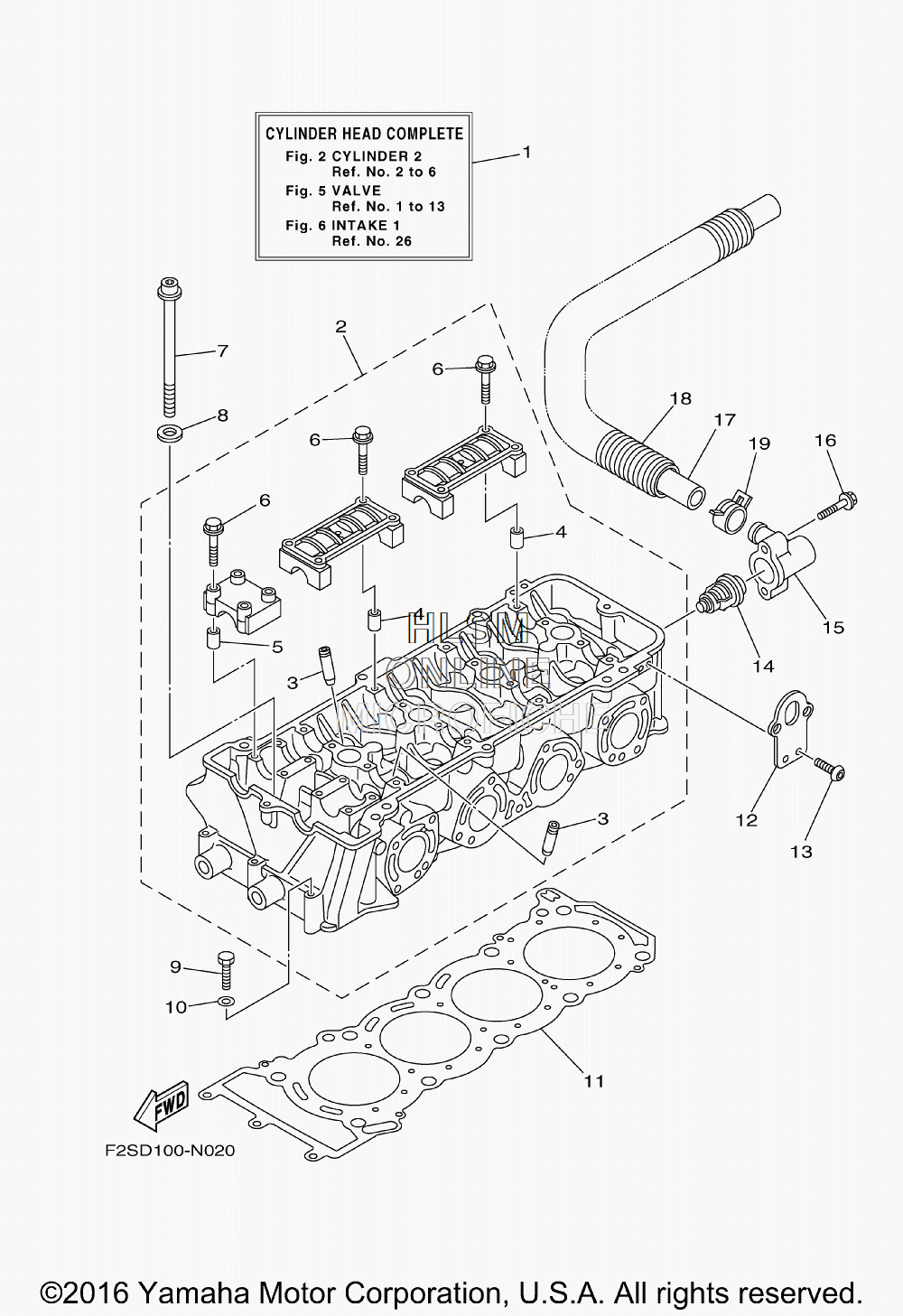

CYLINDER HEAD ASSY для Yamaha FZS - 2015 года выпуска
-
№АртикулНазвание
-
16ET-W009A-00-94 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
26S5-11102-11-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
36S5-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
491809-16002-00 ...PIN, DOWEL...PIN, DOWEL
-
591809-16002-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-07009-00 ...BOLT, FLANGE...BOLT, FLANGE
-
76S5-12228-01-00 BOLTBOLT
-
890201-12039-00 WASHER, PLATEWASHER, PLATE
-
997013-06055-00 BOLTBOLT
-
1092903-06600-00 WASHER, PLATEWASHER, PLATE
-
116BH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
126BH-1111E-00-00 HANGER, ENGINE 2HANGER, ENGINE 2
-
1390119-06078-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
146D3-12411-00-00 THERMOSTATTHERMOSTAT
-
156BH-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1690105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
176S5-12578-00-00 HOSE 3HOSE 3
-
1890447-28008-00 TUBE (L850)TUBE (L850)
-
1990467-240A0-00 CLIPCLIP
