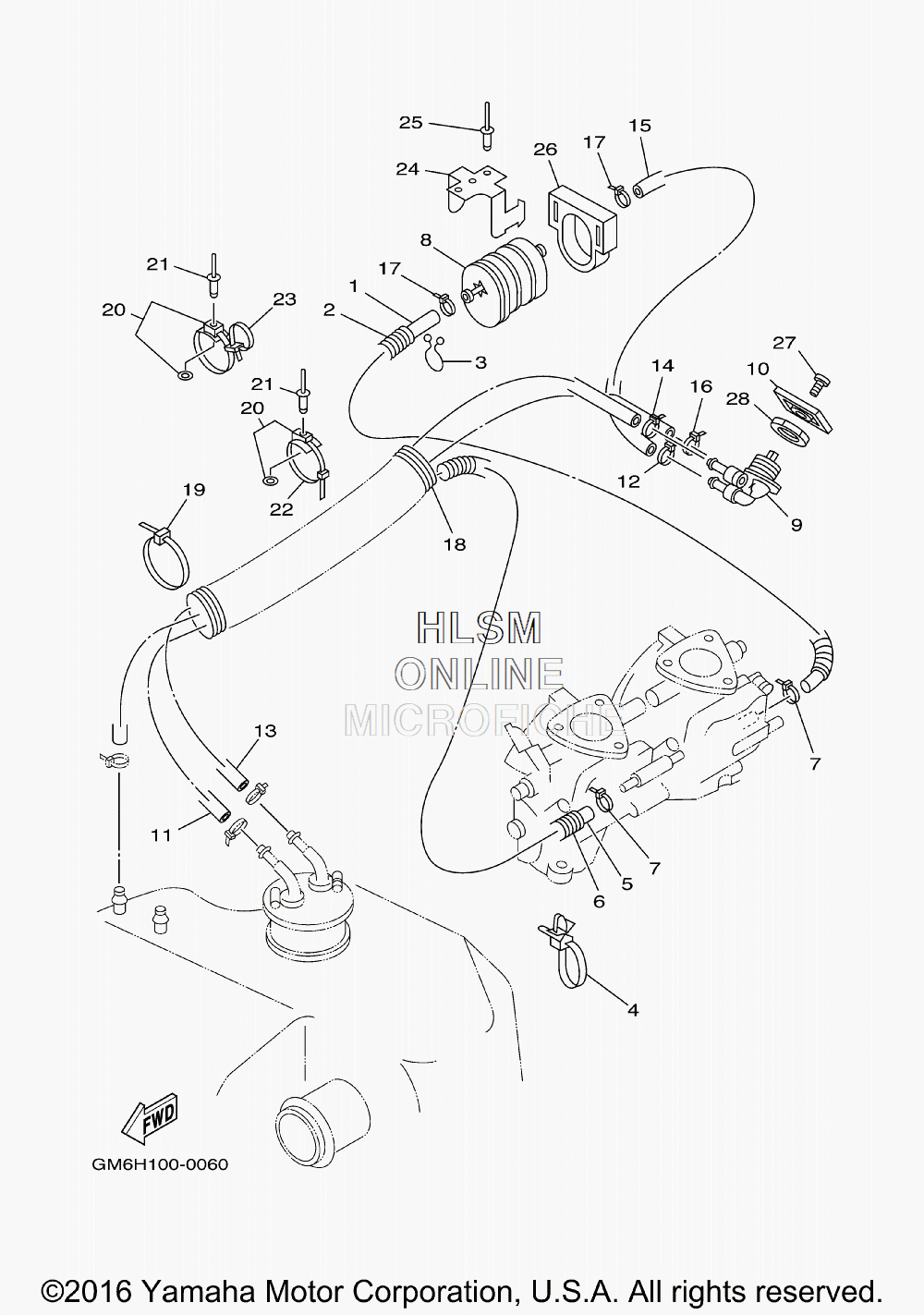

FUEL LINES для Yamaha SUPER JET - 2015 года выпуска`
-
№АртикулНазвание
-
16BA-24312-00-00 PIPE 2PIPE 2
-
290446-14M23-00 HOSE (L180)HOSE (L180)
-
390464-08M07-00 CLAMPCLAMP
-
490465-12M56-00 CLAMPCLAMP
-
56BA-24313-00-00 PIPE 3PIPE 3
-
690446-14M64-00 HOSE (L560)HOSE (L560)
-
790464-36005-00 CLAMPCLAMP
-
86K8-24560-21-00 FILTER ASSYFILTER ASSY
-
96K8-24500-02-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
106R7-24524-00-00 LEVER, COCKLEVER, COCK
-
116BA-24314-00-00 PIPE 4PIPE 4
-
1290464-36005-00 CLAMPCLAMP
-
136BA-24315-00-00 PIPE 5PIPE 5
-
1490464-36005-00 CLAMPCLAMP
-
156BA-24316-00-00 PIPE 6PIPE 6
-
1690464-36005-00 CLAMPCLAMP
-
1790464-36005-00 CLAMPCLAMP
-
18GM6-6773E-00-00 TUBE,2TUBE,2
-
1990601-20006-00 BANDBAND
-
2090600-91736-00 CLAMP COMP.CLAMP COMP.
-
2190267-48925-00 RIVET, BLINDRIVET, BLIND
-
2290601-20006-00 BANDBAND
-
2390601-20016-00 BANDBAND
-
24EU0-67816-30-00 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
2590267-48925-00 RIVET, BLINDRIVET, BLIND
-
26EU0-67817-00-00 HOLDERHOLDER
-
2798980-04008-00 SCREW, BINDSCREW, BIND
-
2890170-22187-00 NUTNUT
