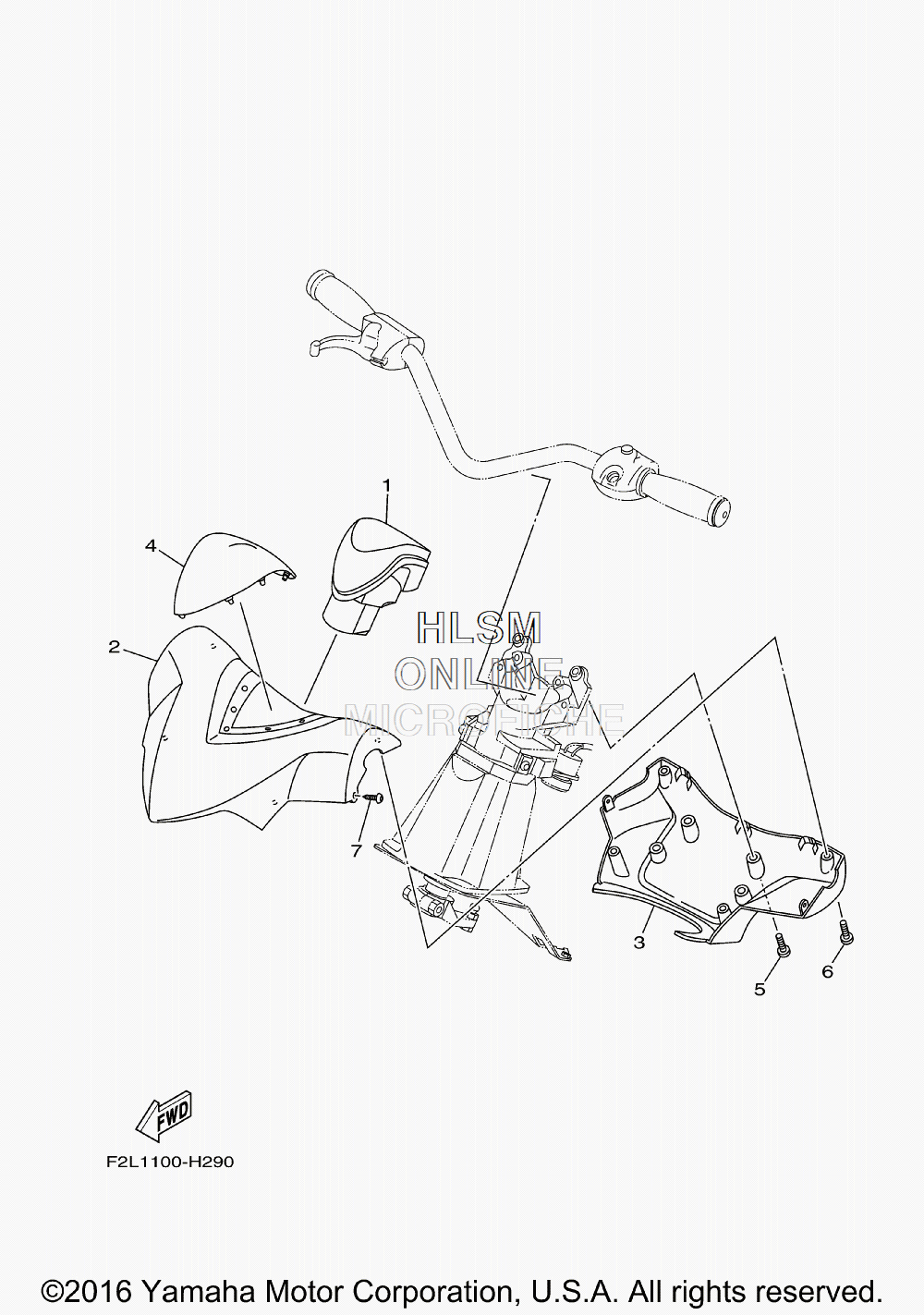

HANDLEBAR PAD для Yamaha V1 SPORT - 2015 года выпуска
-
№АртикулНазвание
-
1F1K-U156E-01-00 PAD 1PAD 1
-
2F1K-U143D-10-00 PAD, STEERING 1PAD, STEERING 1
-
3F1K-U143E-10-00 PAD, STEERING 2PAD, STEERING 2
-
4F1K-U142D-10-00 COVER, PADCOVER, PAD
-
590154-06017-00 SCREW, BINDINGSCREW, BINDING
-
690149-05903-00 SCREWSCREW
-
790167-04003-00 SCREW, TAPPINGSCREW, TAPPING
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- • HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- THROTTLE BODY ASSY
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
