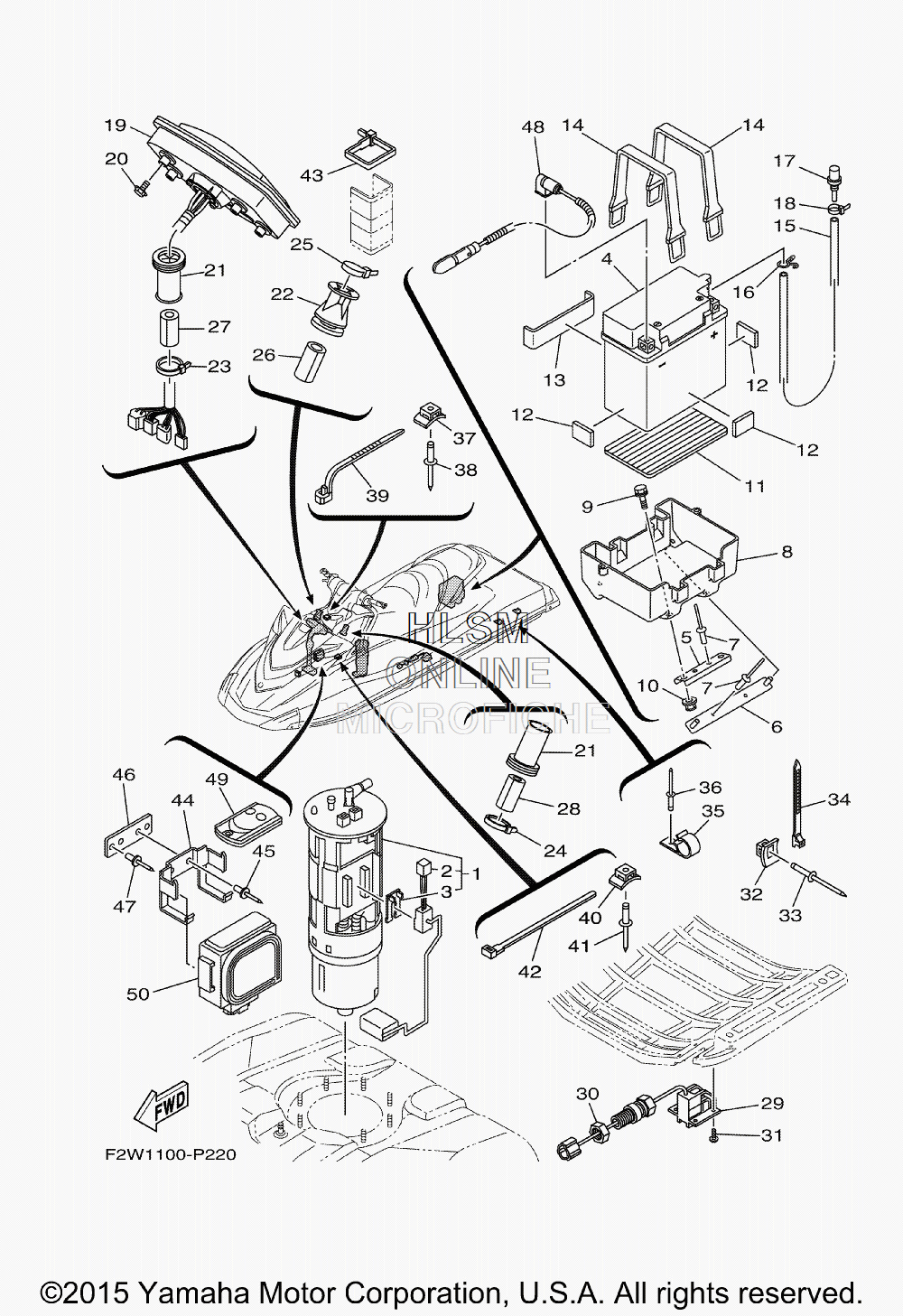

ELECTRICAL 3 для Yamaha VXR - 2015 года выпуска
-
№АртикулНазвание
-
16S5-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
26S5-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-82110-09-00 BATTERY ASSY (YB16CL-B) (YUASA)BATTERY ASSY (YB16CL-B) (YUASA)
-
5F2S-U8592-00-00 PLATE, BASE 2PLATE, BASE 2
-
6F2S-U8593-00-00 PLATE, BASE 3PLATE, BASE 3
-
790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
8F2S-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
990119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
10F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
11F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
12EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
13F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
14EU0-U821D-00-00 BAND,BATTERY 1BAND,BATTERY 1
-
15F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1690467-089U1-00 CLIPCLIP
-
17GJ3-6215F-00-00 NIPPLENIPPLE
-
1890465-11829-00 CLAMPCLAMP
-
19F2W-6820A-00-00 METER ASSYMETER ASSY
-
2090119-05803-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
21GU2-6822E-01-00 GROMMETGROMMET
-
22F3J-U822E-00-00 GROMMETGROMMET
-
2390464-32801-00 CLAMPCLAMP
-
2490464-32801-00 CLAMPCLAMP
-
2590464-32801-00 CLAMPCLAMP
-
26GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
27GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
-
28GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
-
29F1S-U8K31-02-00 SENSOR SPEEDSENSOR SPEED
-
30F2C-U151S-00-00 NUTNUT
-
3190150-05807-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
32F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3390267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3490464-32801-00 CLAMPCLAMP
-
35F3J-U8368-01-00 CLAMPCLAMP
-
3690267-409U5-00 RIVET, BLINDRIVET, BLIND
-
37F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3890267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3990464-32801-00 CLAMPCLAMP
-
40F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
4190267-489U6-00 RIVET, BLINDRIVET, BLIND
-
4290601-200U2-00 BANDBAND
-
4390601-200U2-00 BANDBAND
-
44F1W-U826C-00-00 BRACKETBRACKET
-
4590267-489U1-00 RIVET,BLINDRIVET,BLIND
-
46F1W-U8376-00-00 PLATEPLATE
-
4790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
486S5-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
496B6-86261-00-00 TRANSMITTER COMPLETETRANSMITTER COMPLETE
-
506B6-86265-00-00 RECEIVER COMPLETERECEIVER COMPLETE
