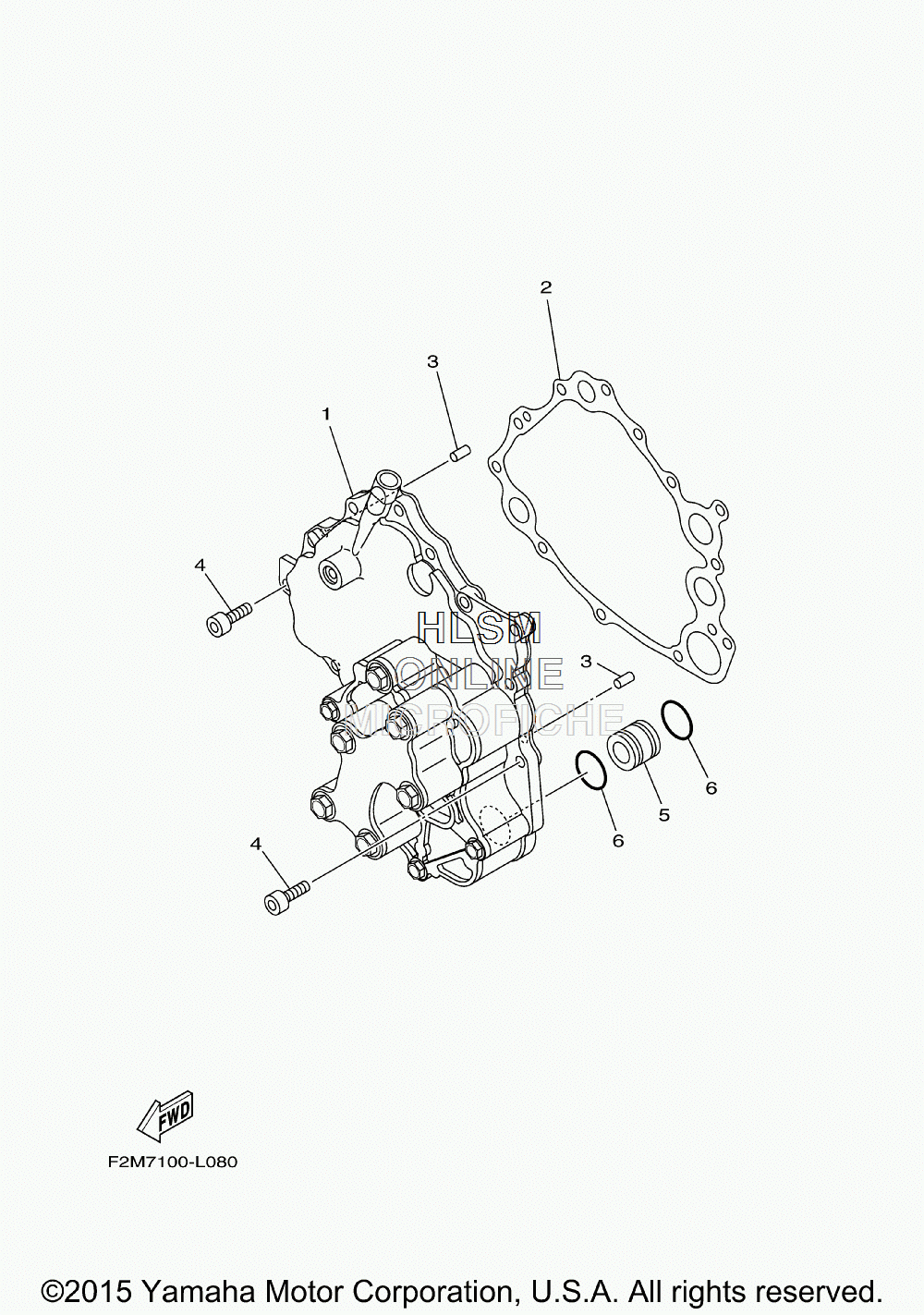

OIL PUMP для Yamaha FX CRUISER HO [FB1800AR] - 2016 года выпуска
-
№АртикулНазвание
-
16BH-13300-12-00 OIL PUMP ASSYOIL PUMP ASSY
-
26S5-13563-00-00 GASKETGASKET
-
393606-12019-00 PIN, DOWELPIN, DOWEL
-
491314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
56S5-13446-10-00 CONNECTORCONNECTOR
-
693210-21631-00 O-RINGO-RING
